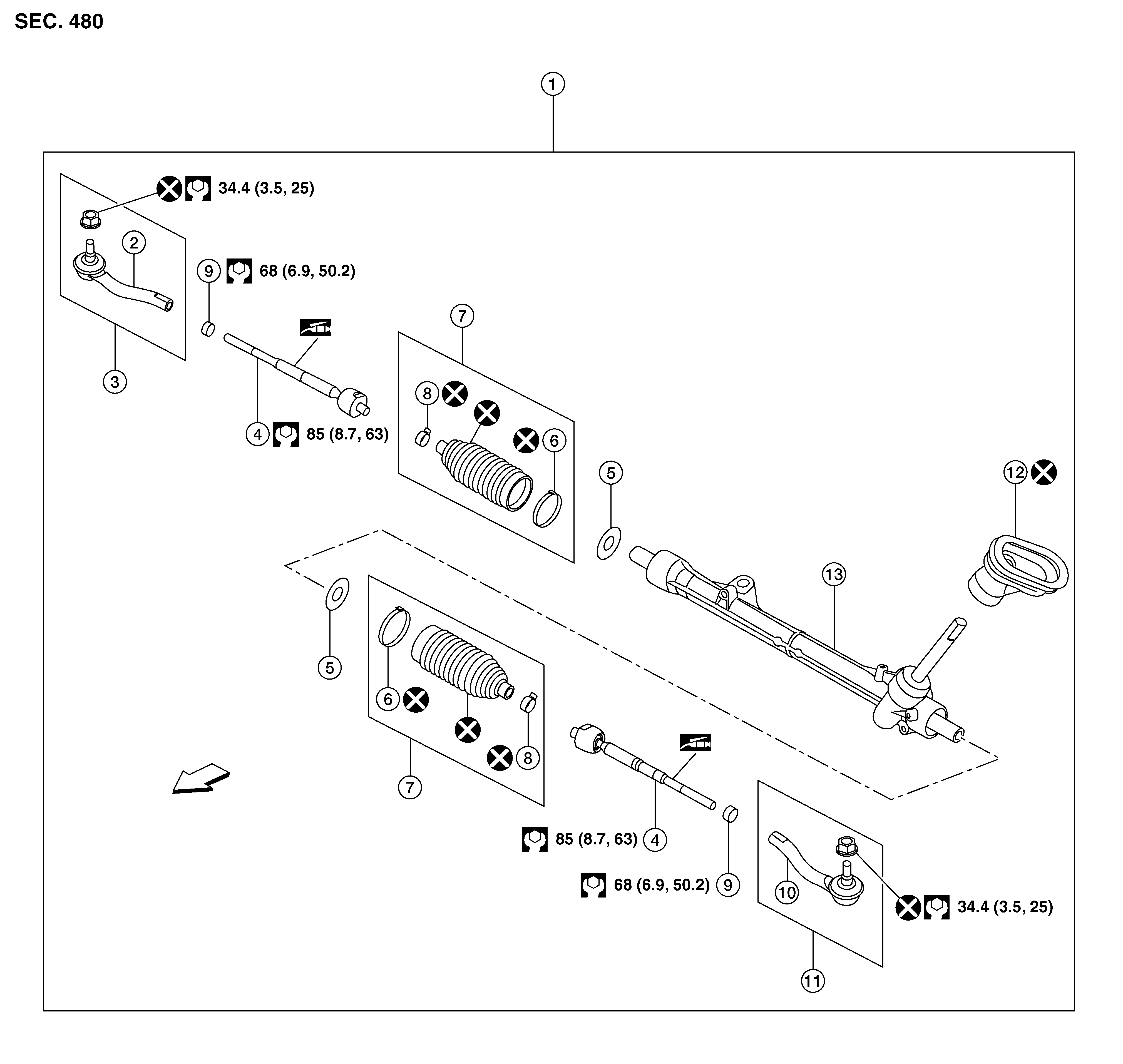

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Steering gear and linkage assembly |
2. |
Outer socket (RH) |
3. |
Outer socket kit (RH) |
| 4. |
Inner socket |
5. |
Spacer |
6. |
Large boot clamp |
| 7. |
Boot kit |
8. |
Small boot clamp |
9. |
Lock nut |
| 10. |
Outer socket (LH) |
11. |
Outer socket kit (LH) |
12. |
Hole cover |
| 13. |
Steering gear |
 |
Front |
