Exploded View

2WD

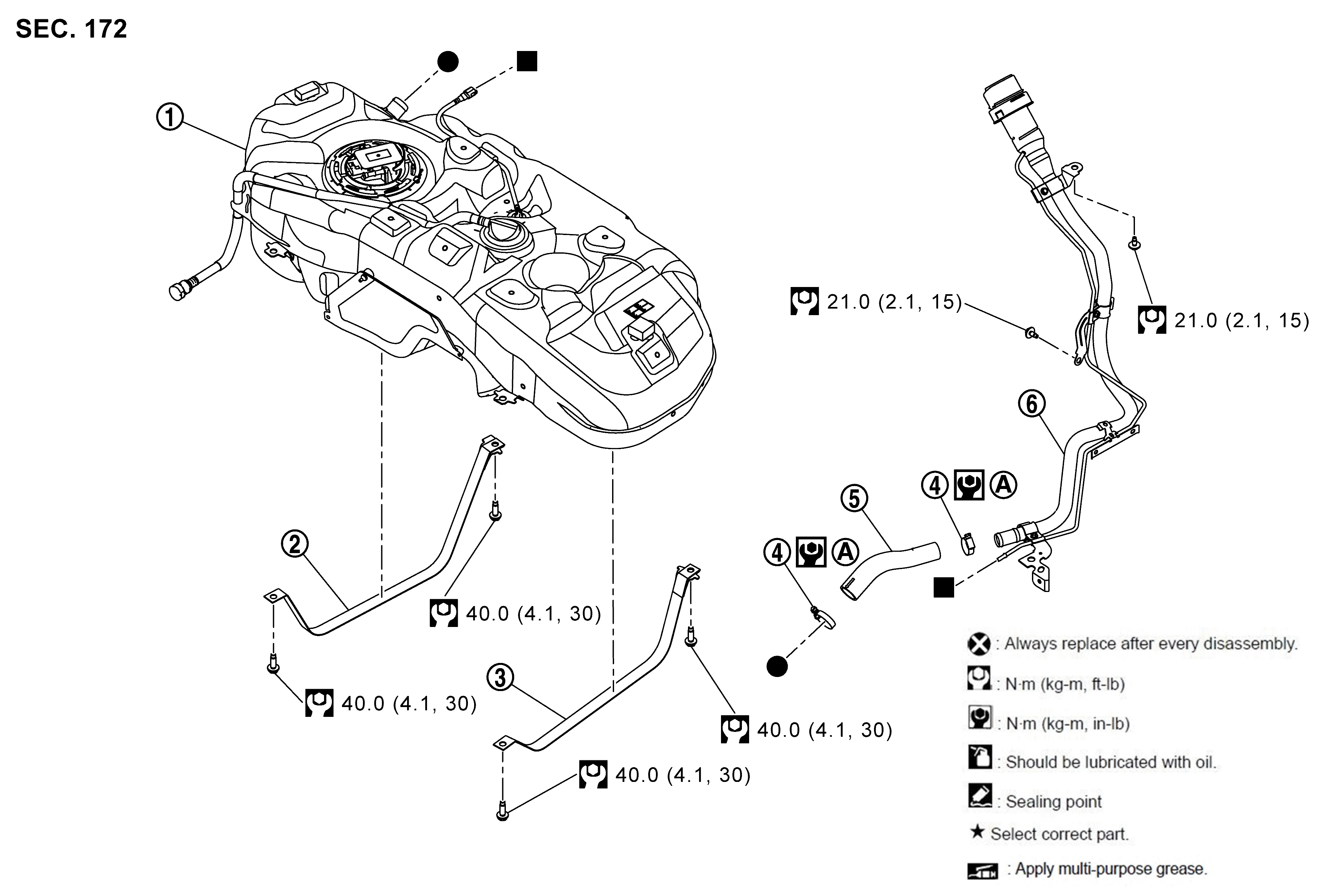

Fig 1: Fuel Tank With Torque Specifications - 2WD
GNSDB132695Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Fuel tank SYMBOL Fuel tank band (RH) SYMBOL Fuel tank band (LH)
SYMBOL Clamp SYMBOL Fuel filler hose SYMBOL Fuel filler tube
SYMBOL Comply with the assembly procedure when tightening. Refer to Removal and Installation
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : N.m (kg-m, in-lb)
SYMBOL , SYMBOL

AWD

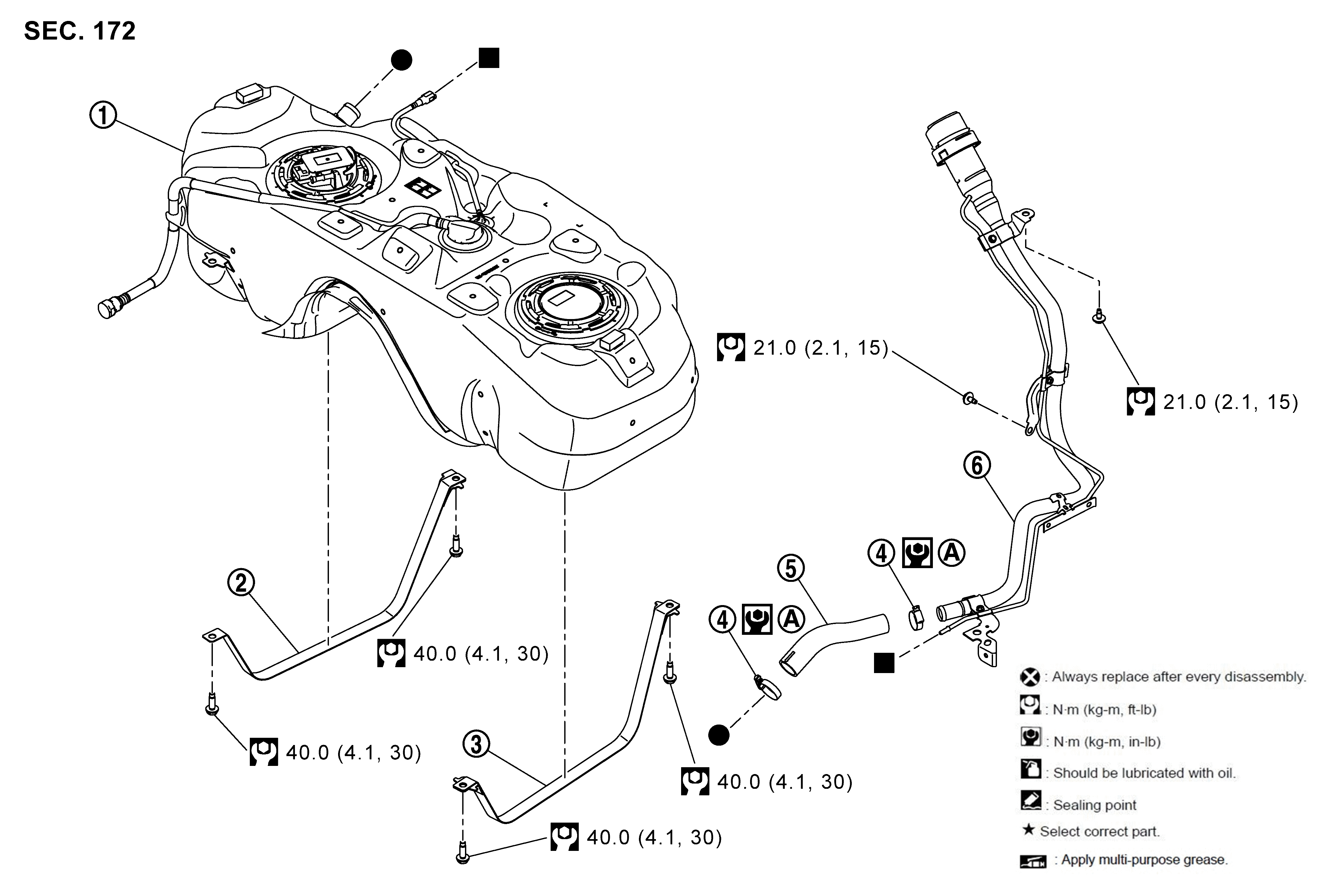

Fig 2: Fuel Tank With Torque Specifications - AWD
GNSDB132549Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Fuel tank SYMBOL Fuel tank band (RH) SYMBOL Fuel tank band (LH)
SYMBOL Clamp SYMBOL Fuel filler hose SYMBOL Fuel filler tube
SYMBOL Comply with the assembly procedure when tightening. Refer to Removal and Installation
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : N.m (kg-m, in-lb)
SYMBOL , SYMBOL
