Starting and Charging: Specifications

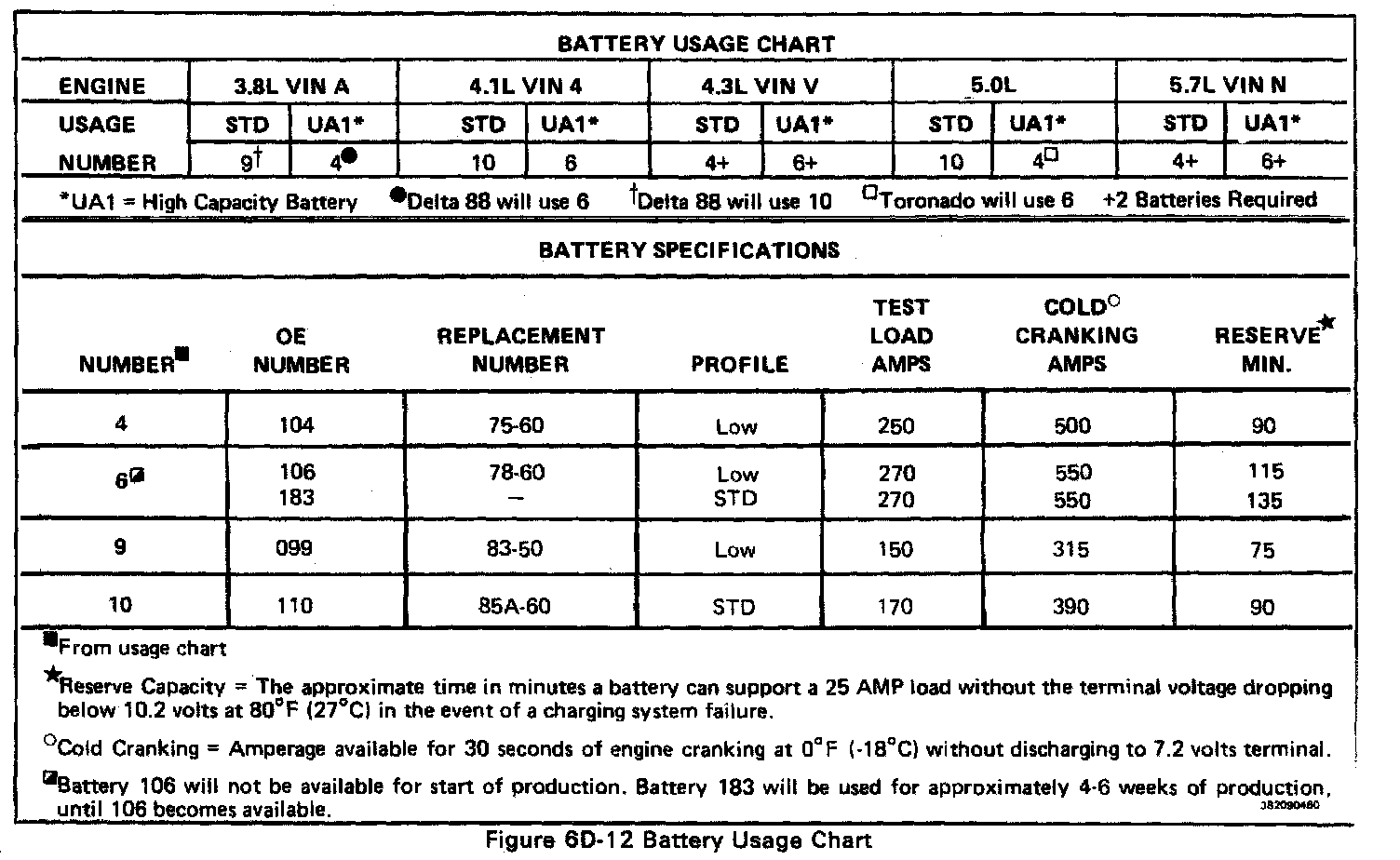

BATTERY SPECIFICATIONS

ALTERNATOR SPECIFICATIONS

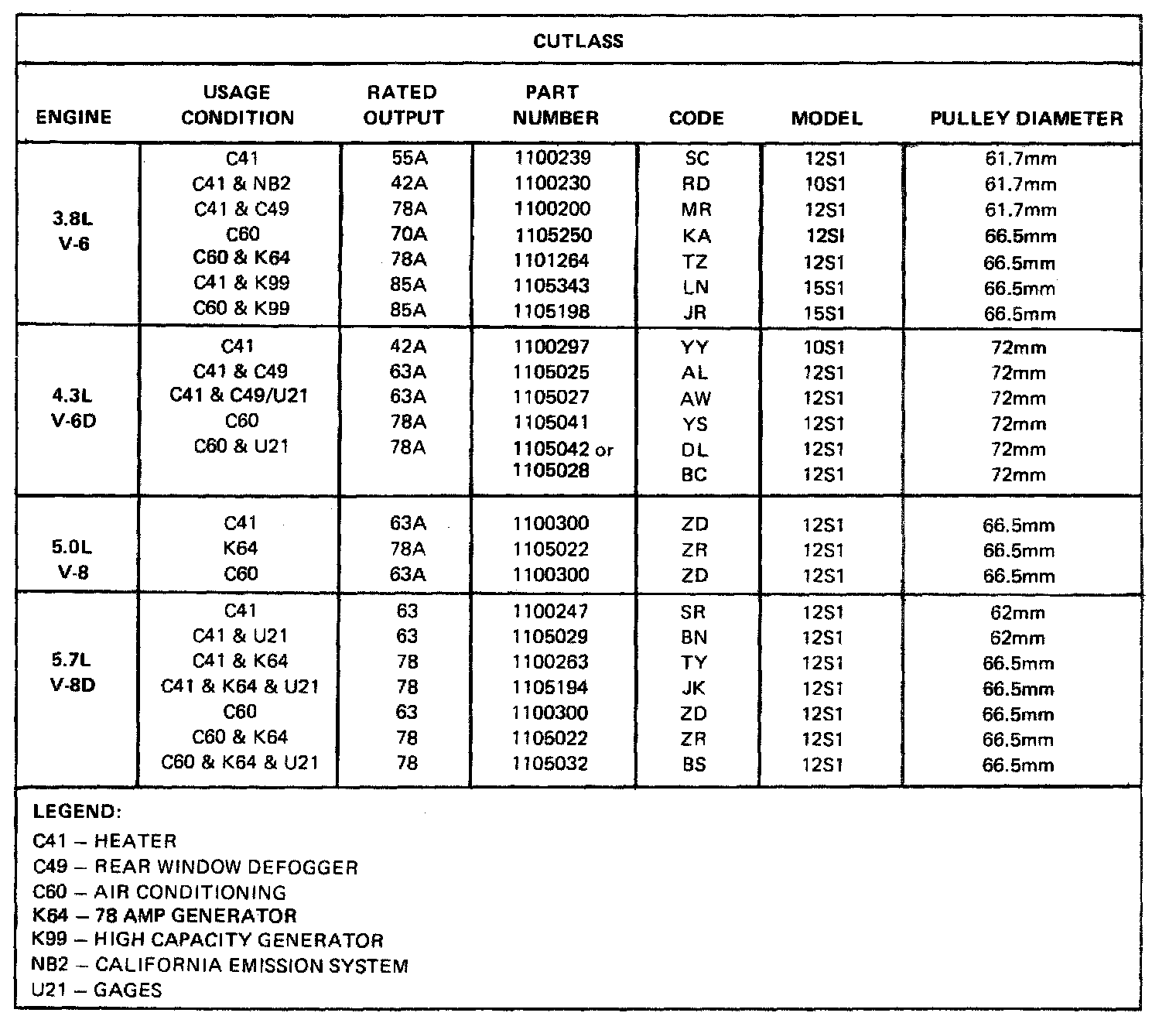

Cutlass:

Toronado:

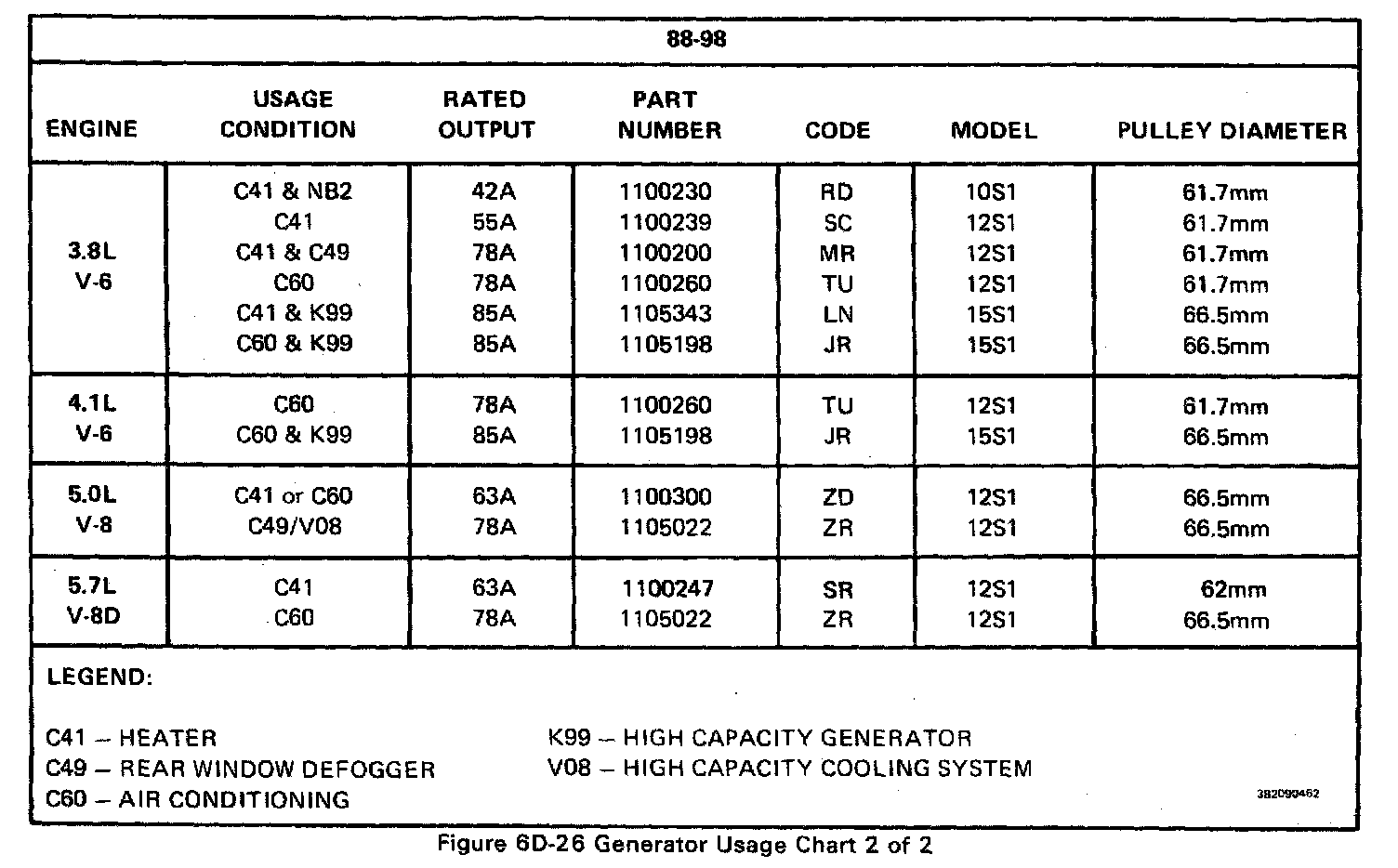

Delta & 98:

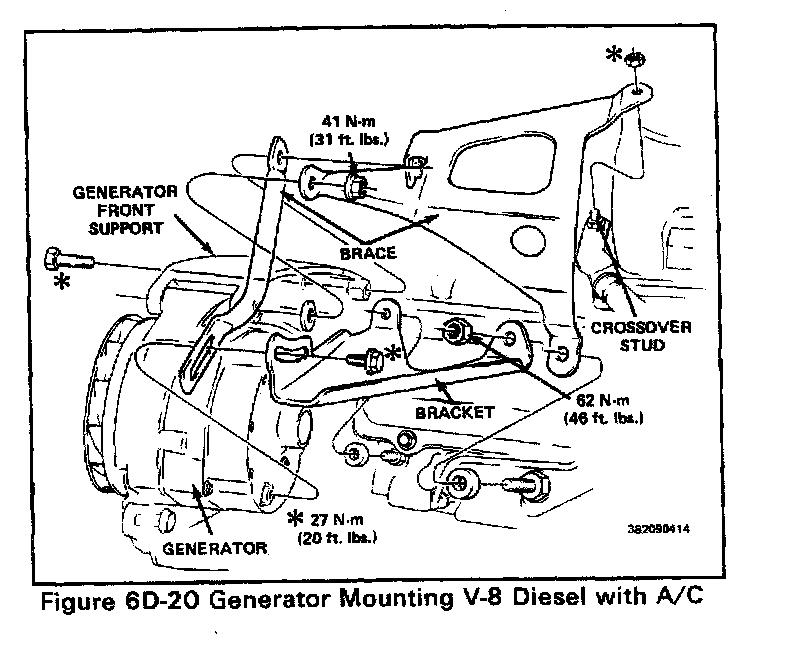

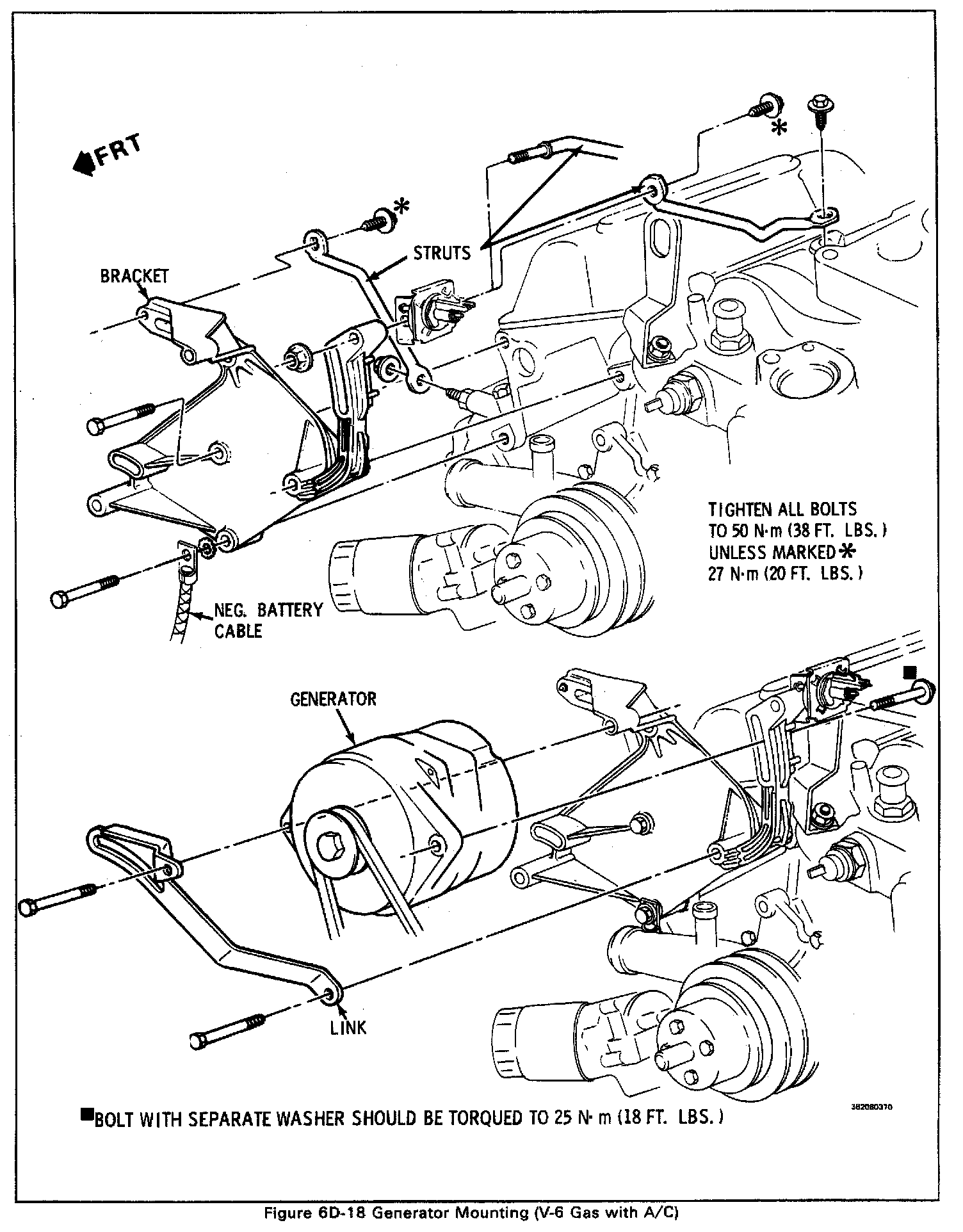

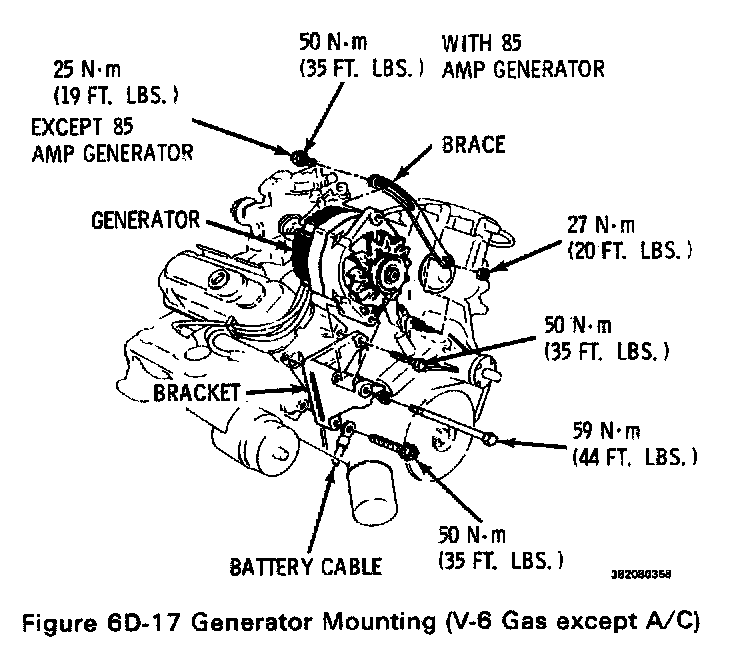

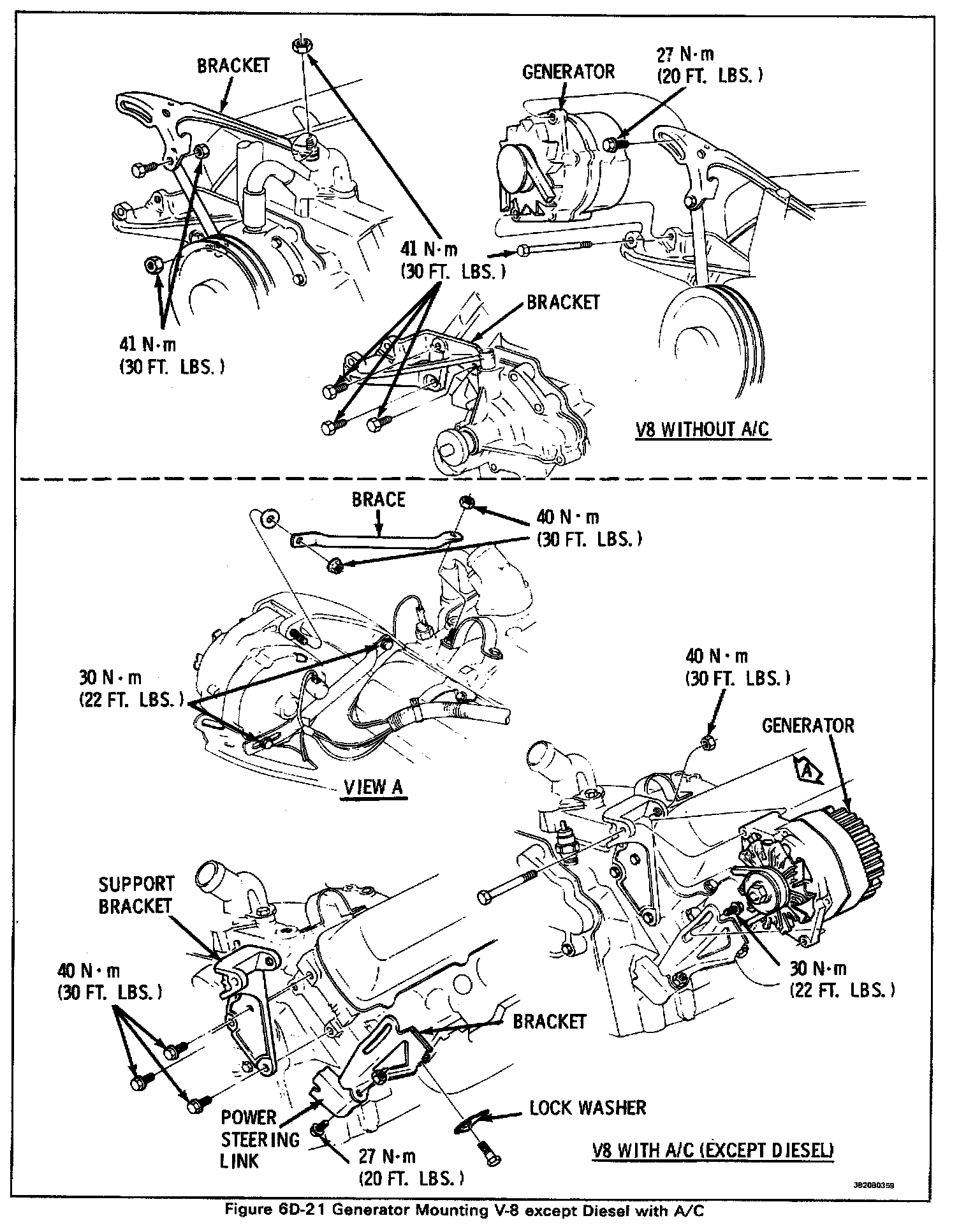

ALTERNATOR TORQUE SPECIFICATIONS

I Of V:

II Of V:

III Of V:

IV Of V:

V Of V:

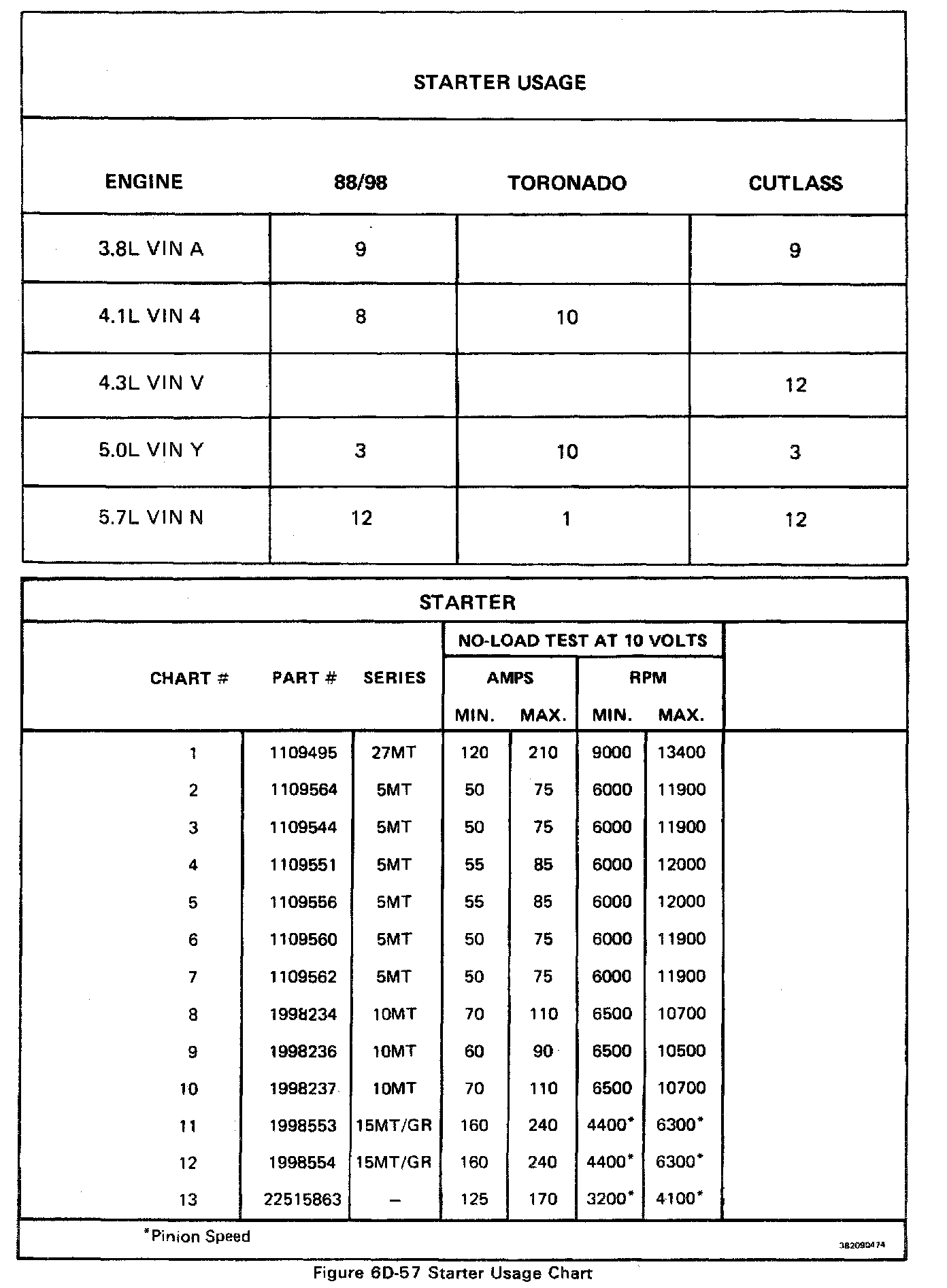

STARTER SPECIFICATIONS

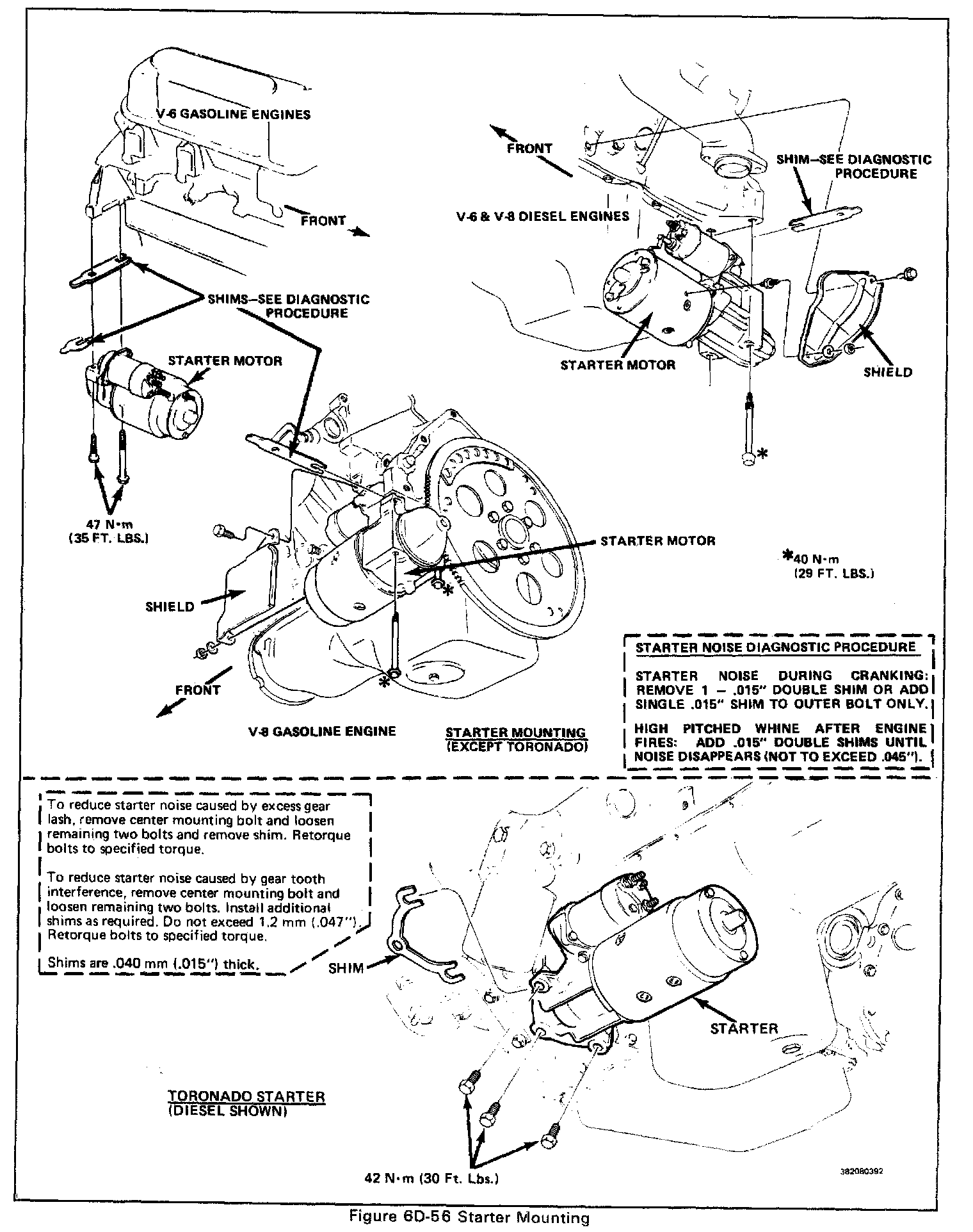

STARTER TORQUE SPECIFICATIONS
