Starting and Charging: Specifications

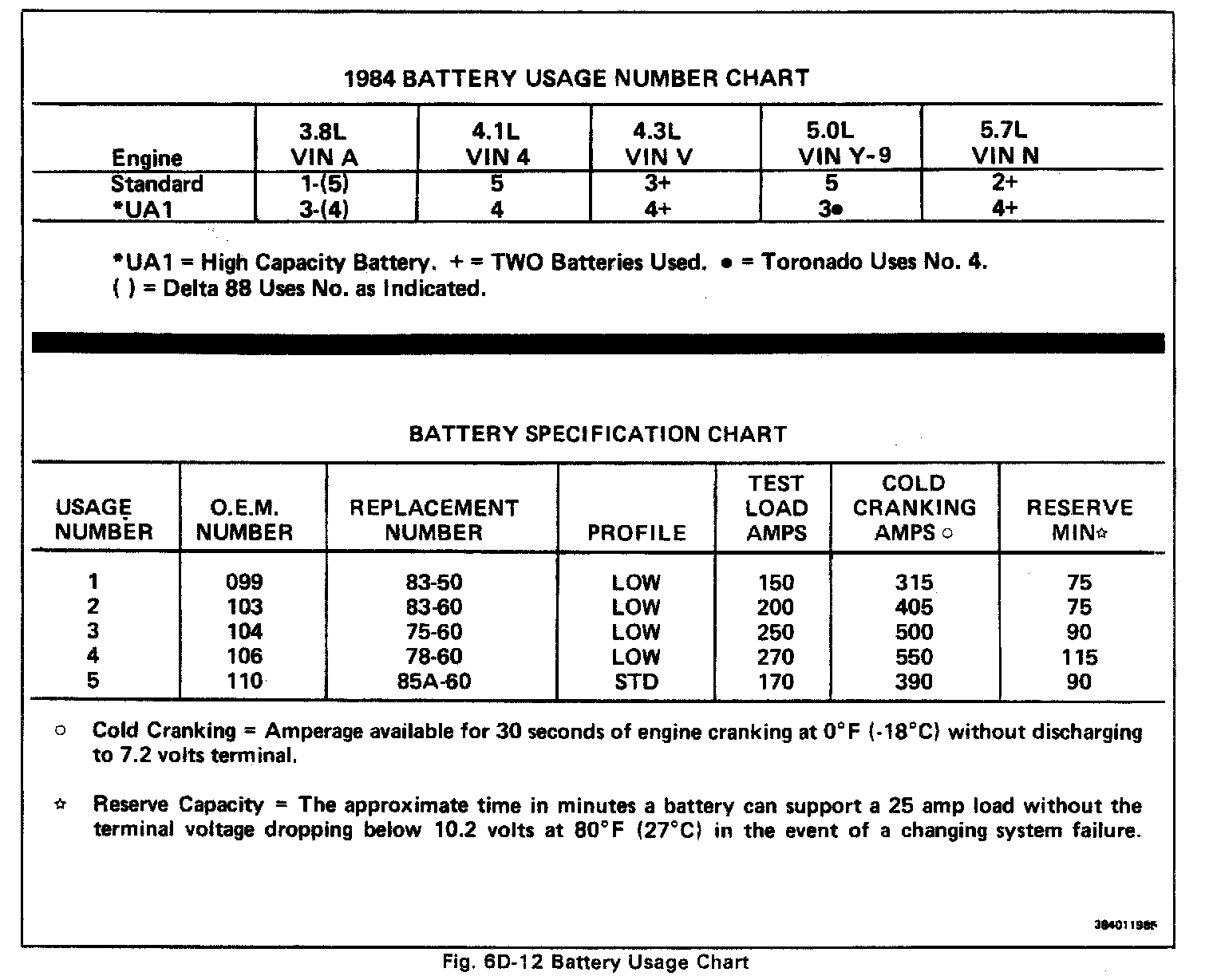

BATTERY SPECIFICATIONS

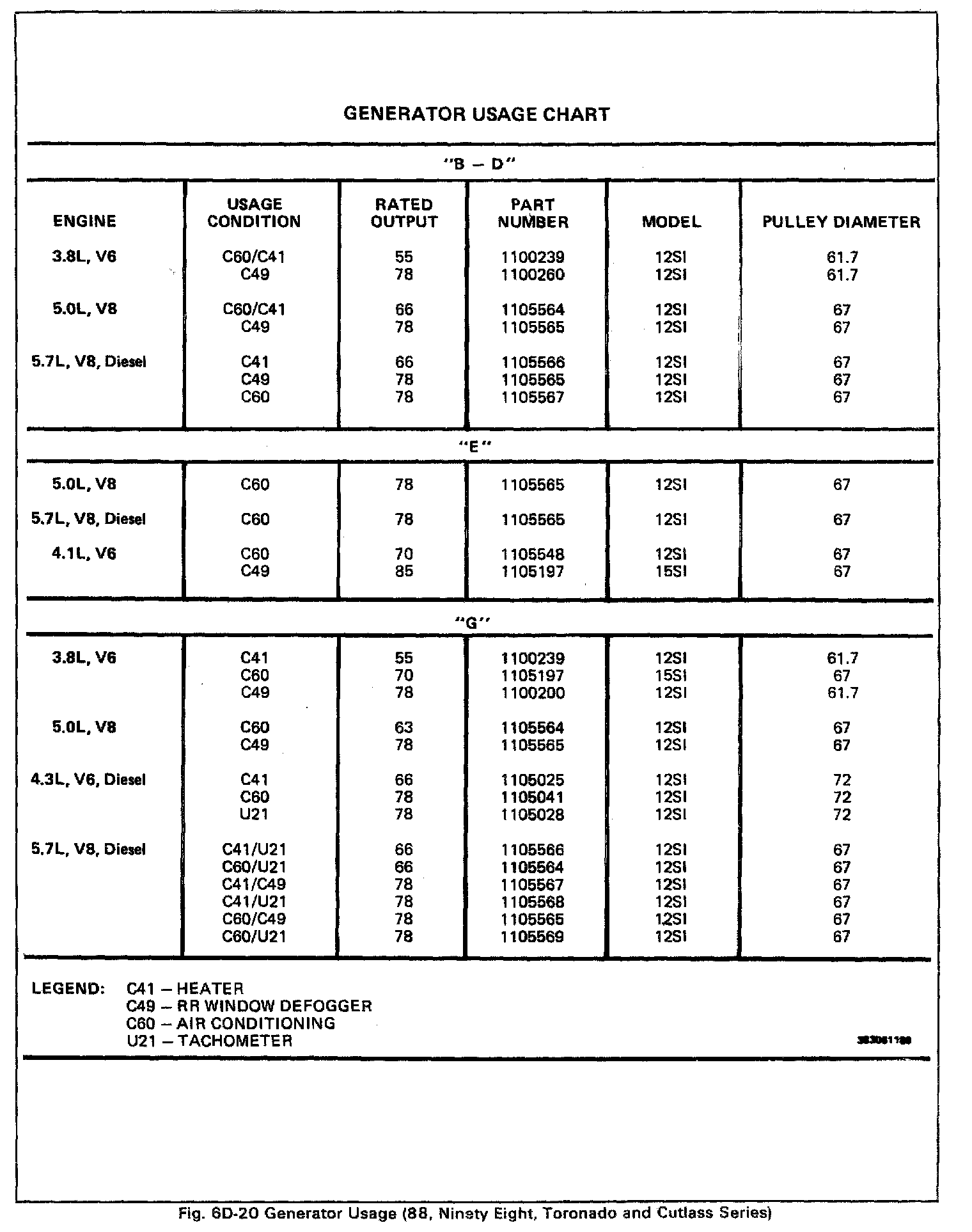

ALTERNATOR SPECIFICATIONS

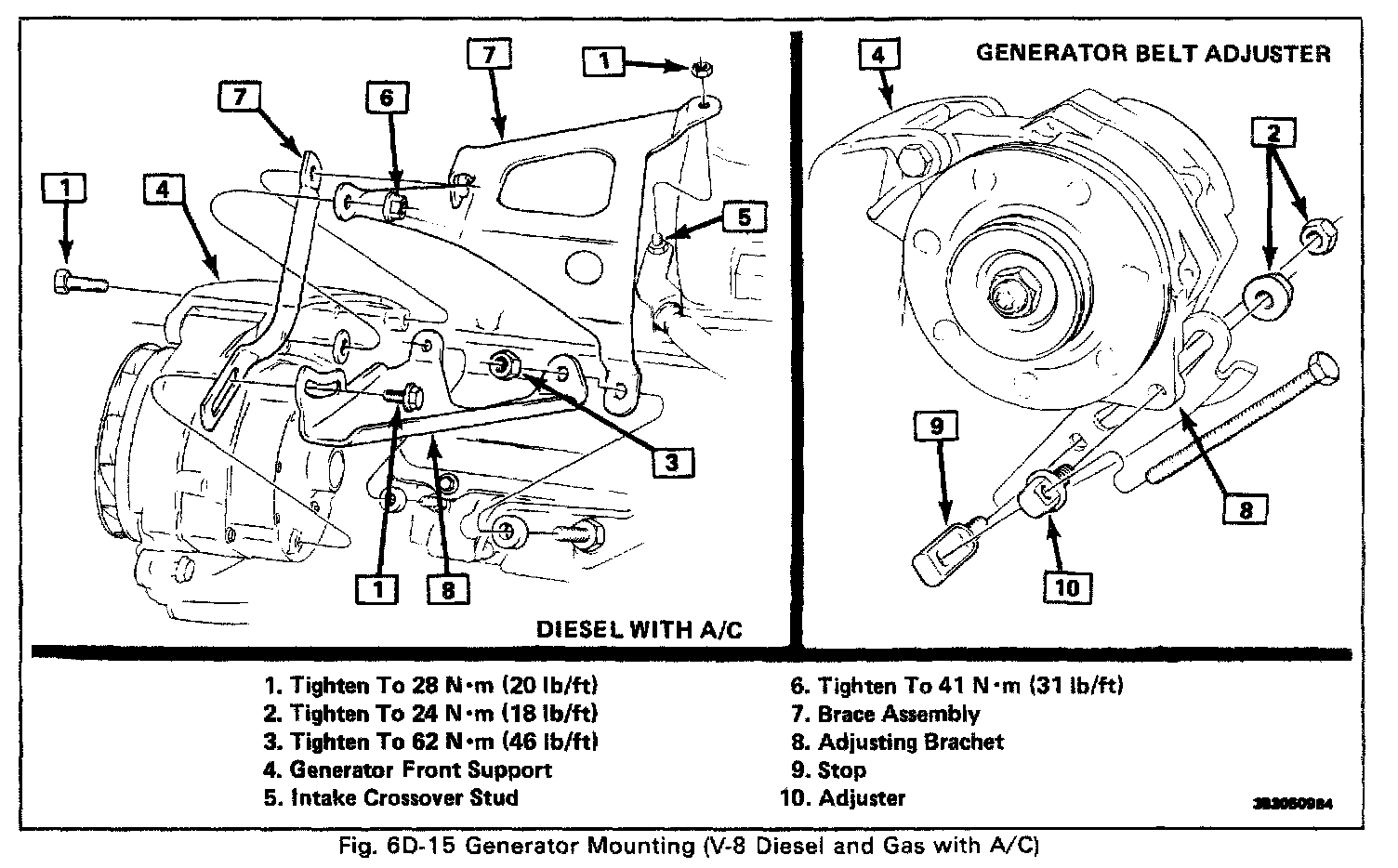

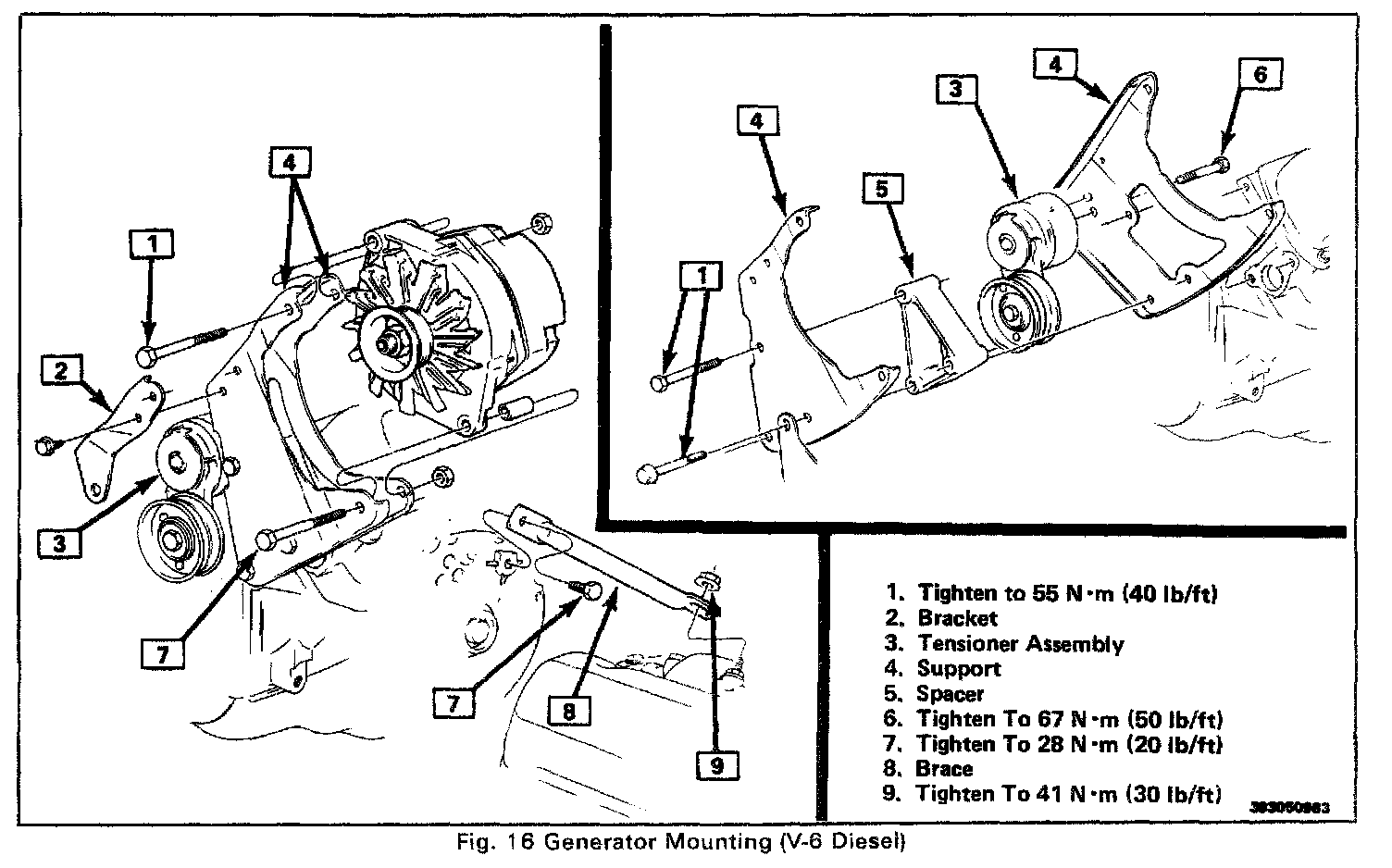

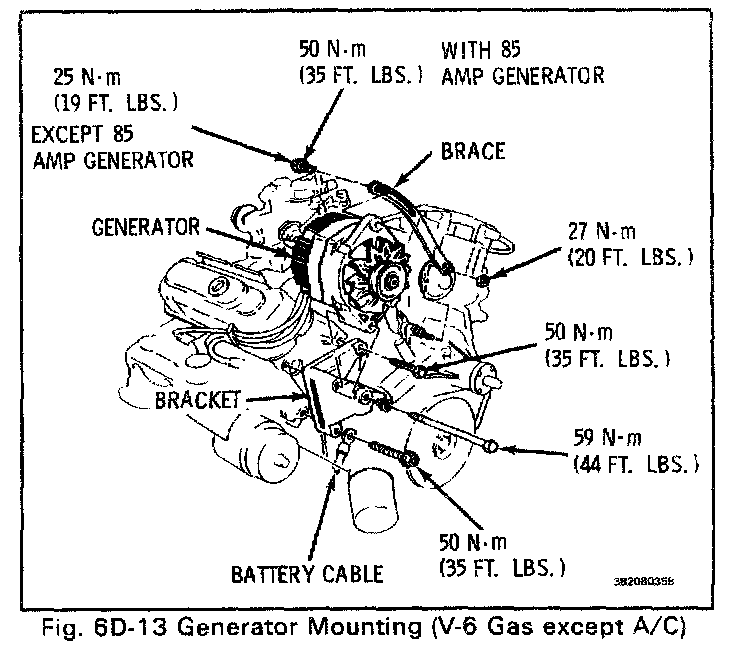

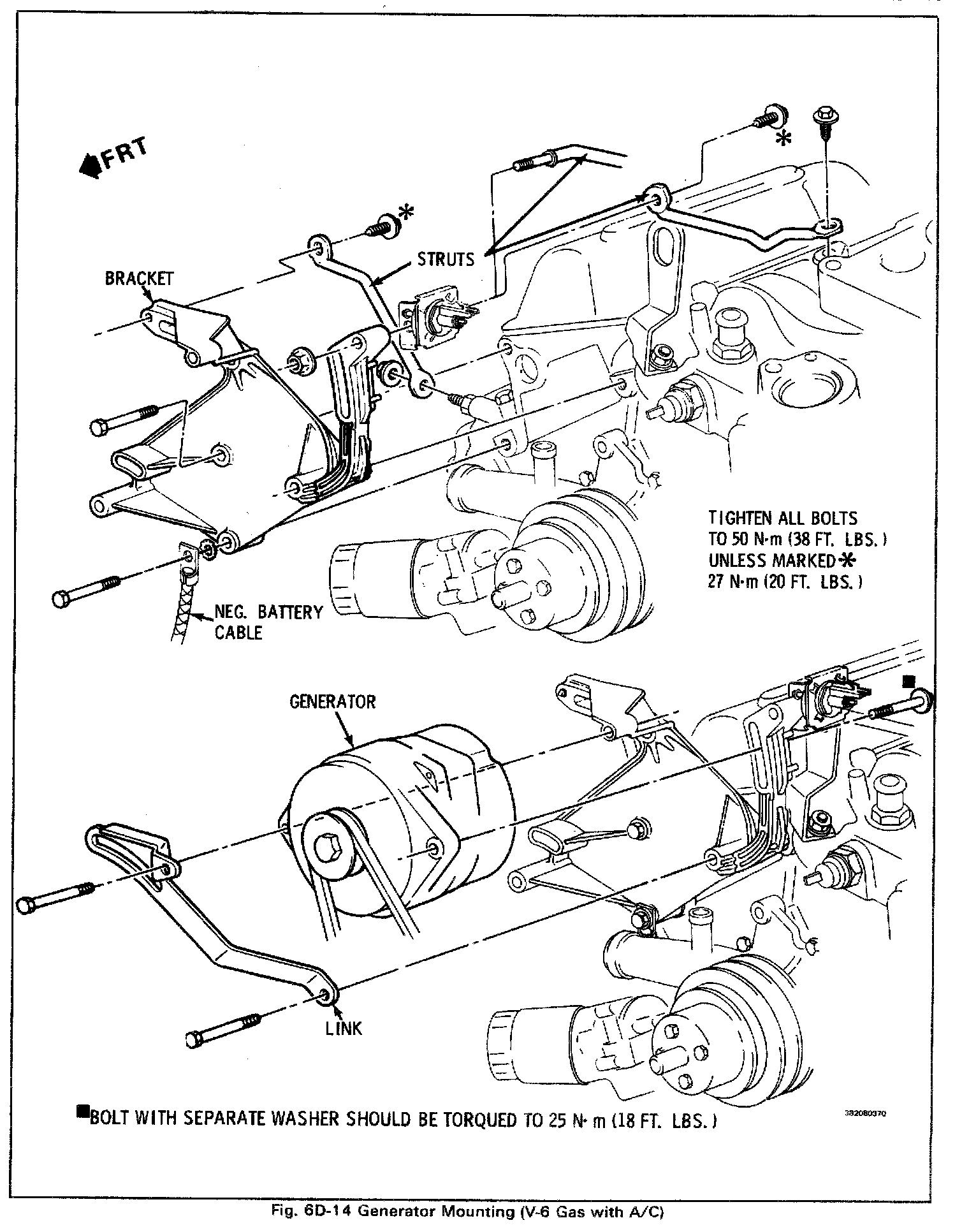

ALTERNATOR TORQUE SPECIFICATIONS

I Of IV:

II Of IV:

III Of IV:

IV Of IV:

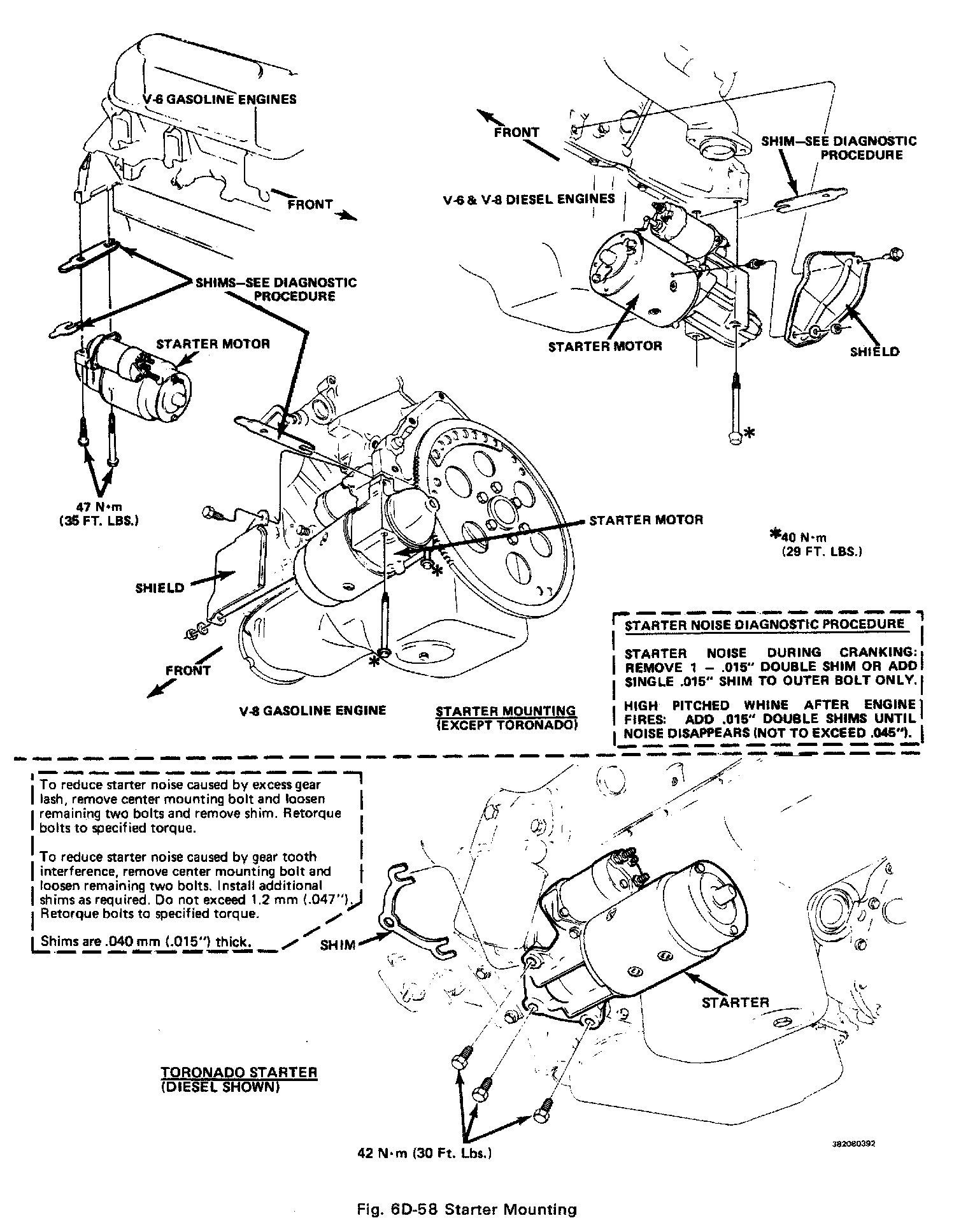

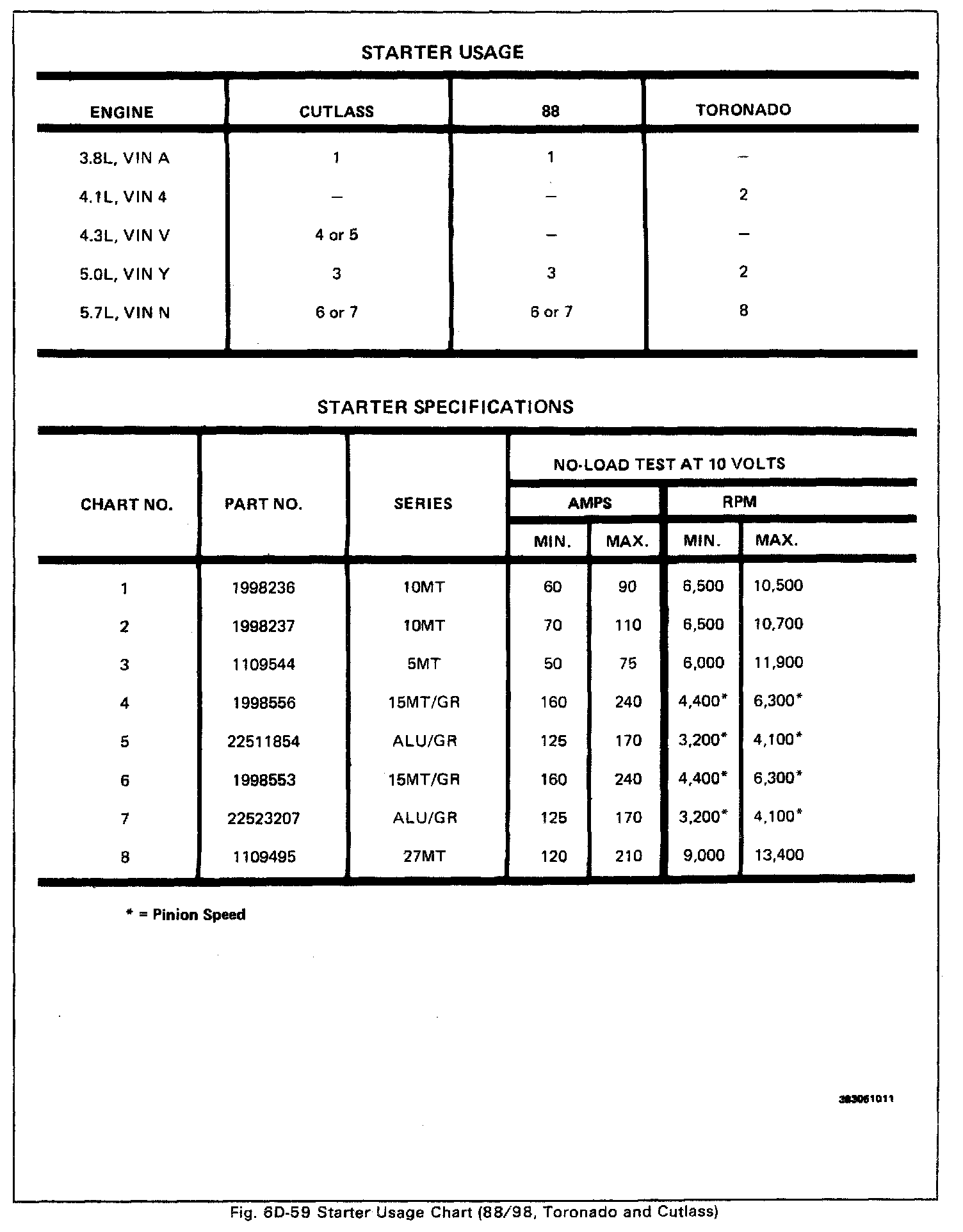

STARTER SPECIFICATIONS

STARTER TORQUE SPECIFICATIONS
