System Specifications

Torque Specifications:

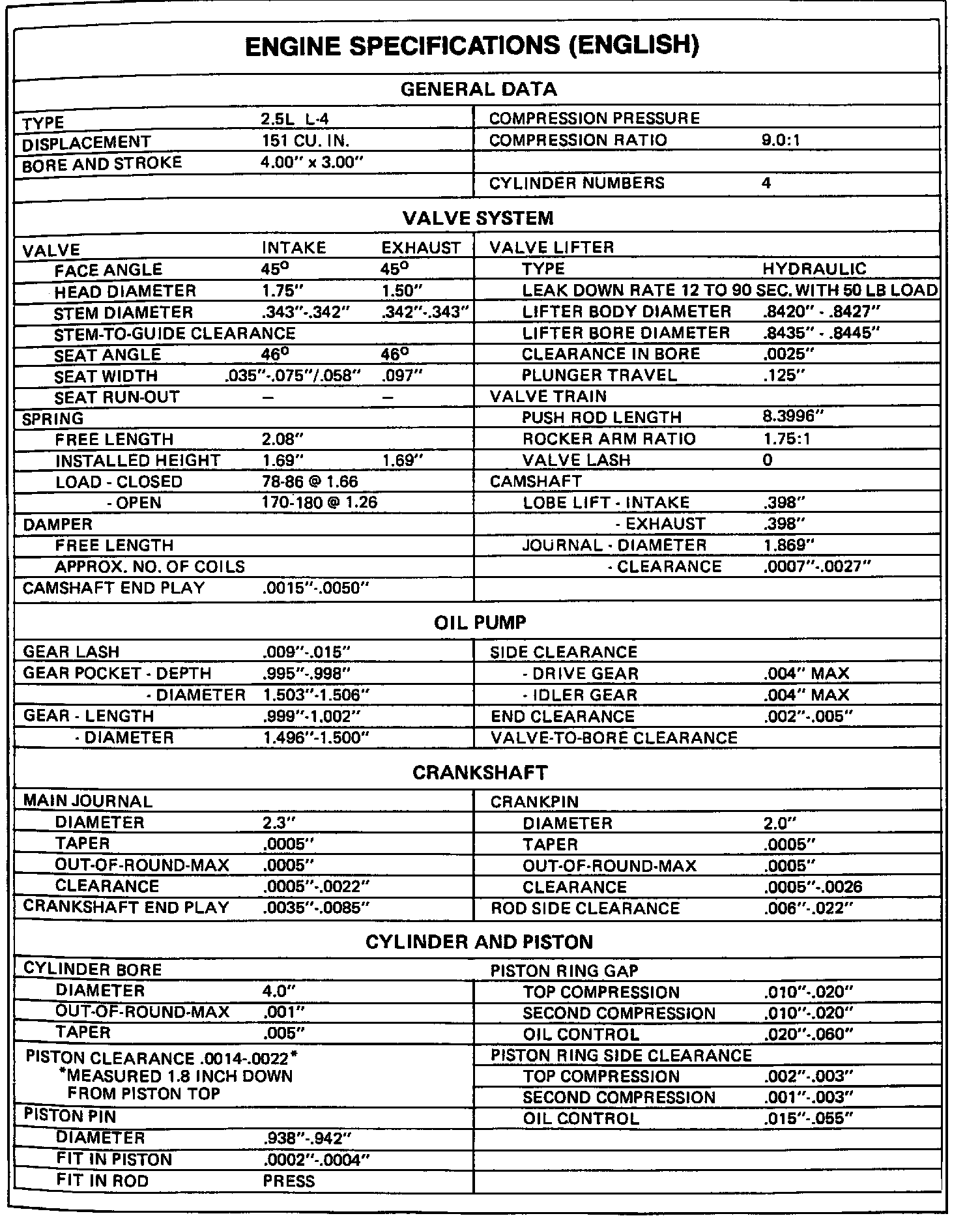

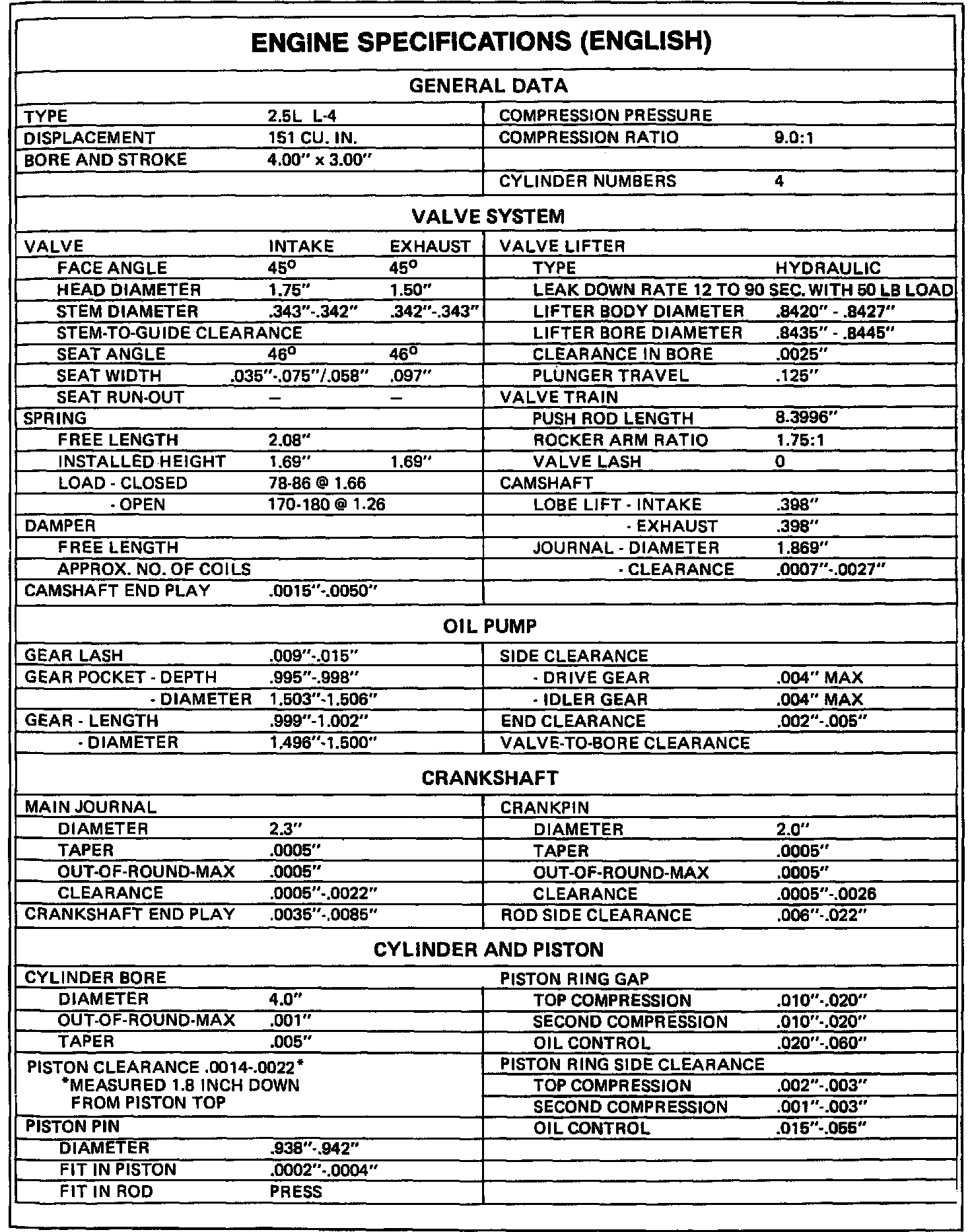

Engine Specifications:

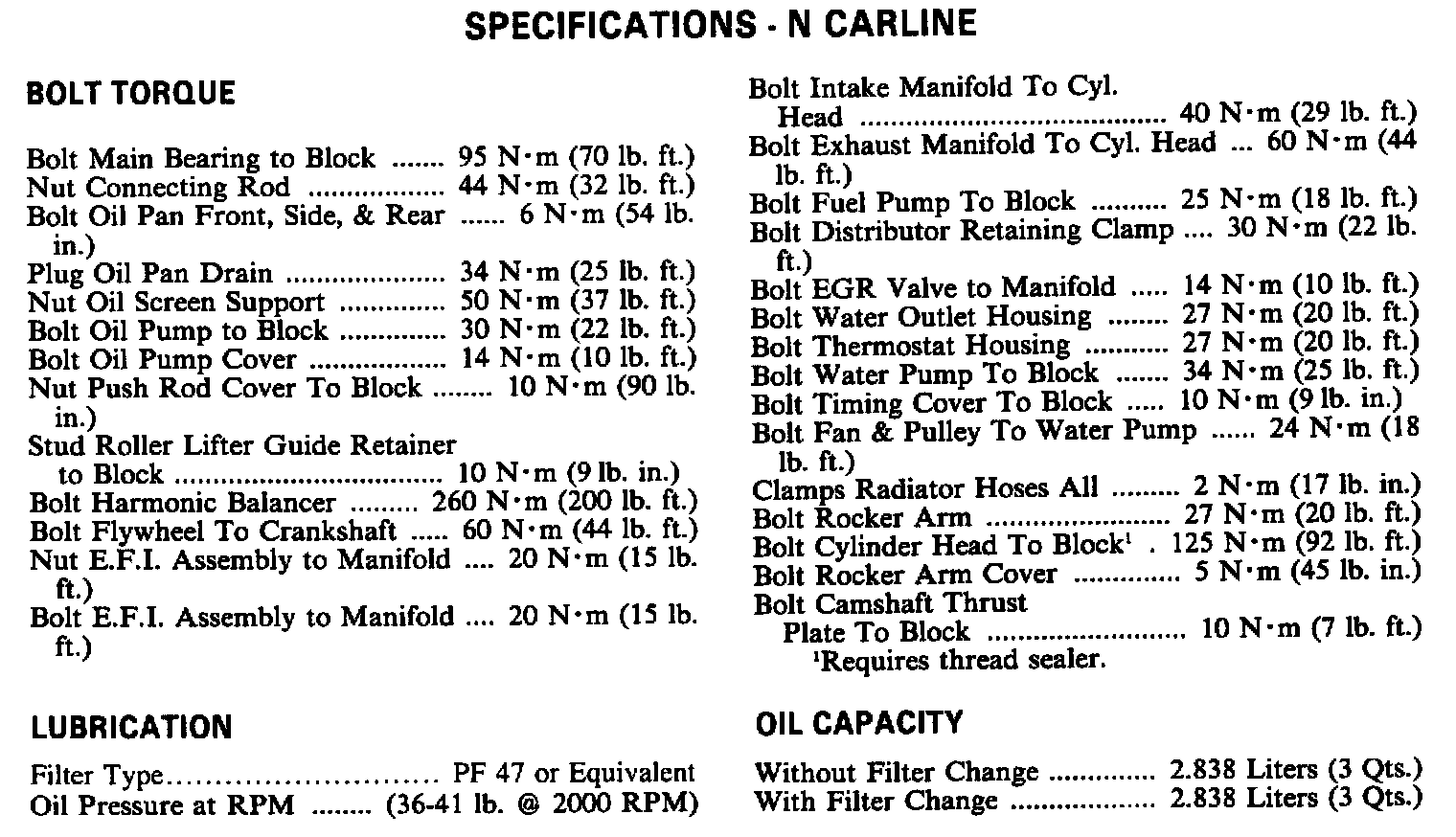

Torque Specifications N Carline:





Engine Specifications N Carline:

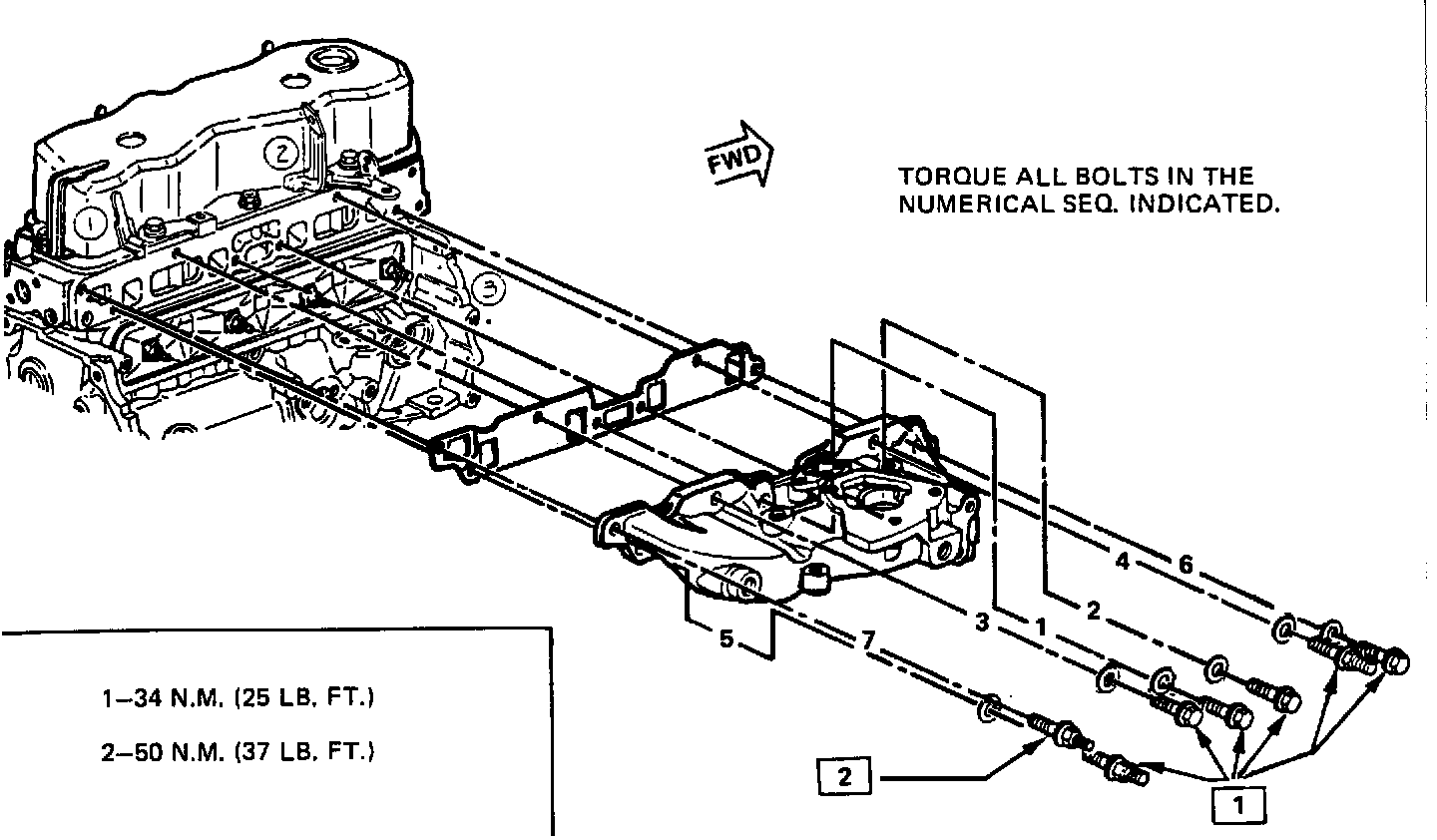

Intake Manifold Sequence:

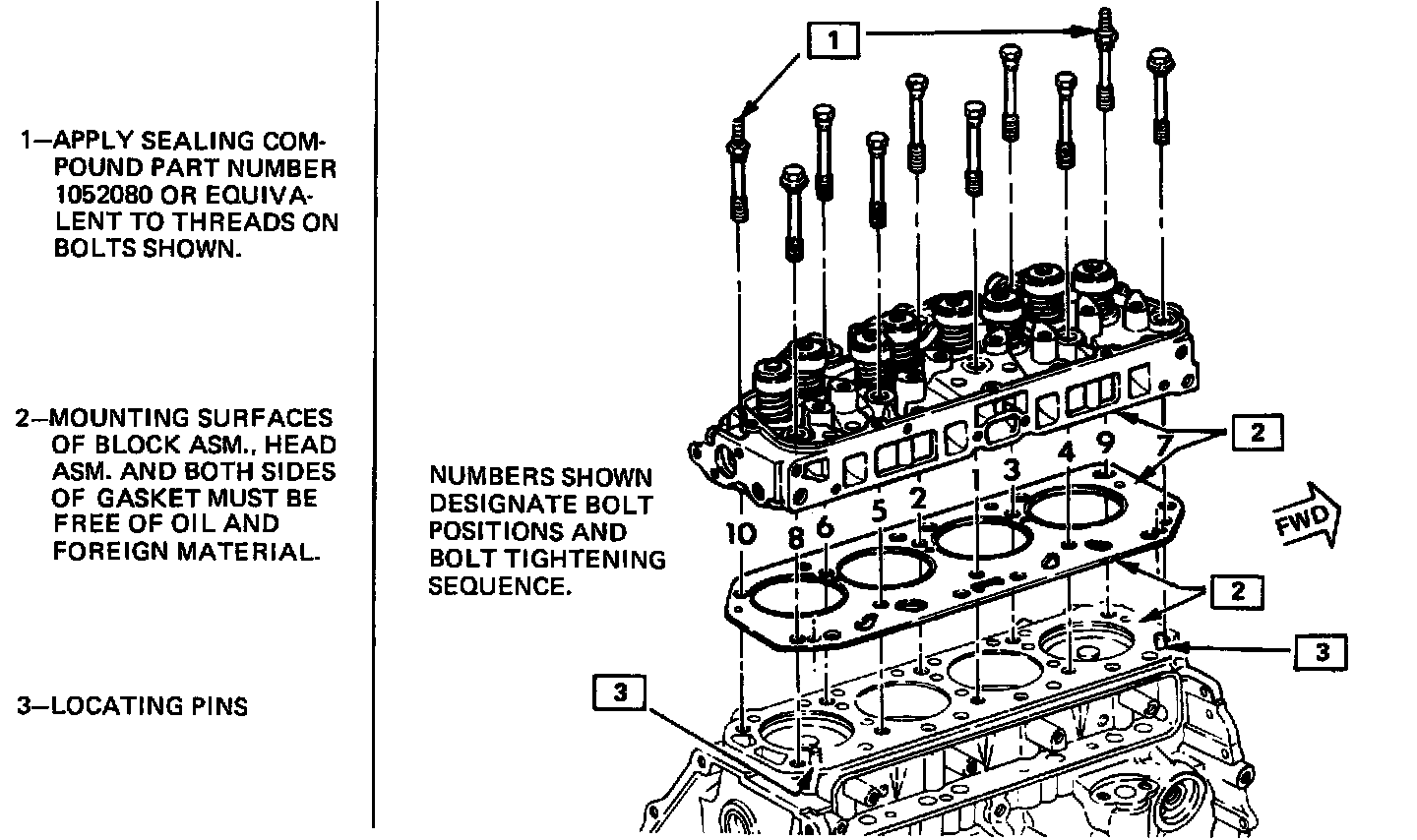

Cylinder Head Sequence:
