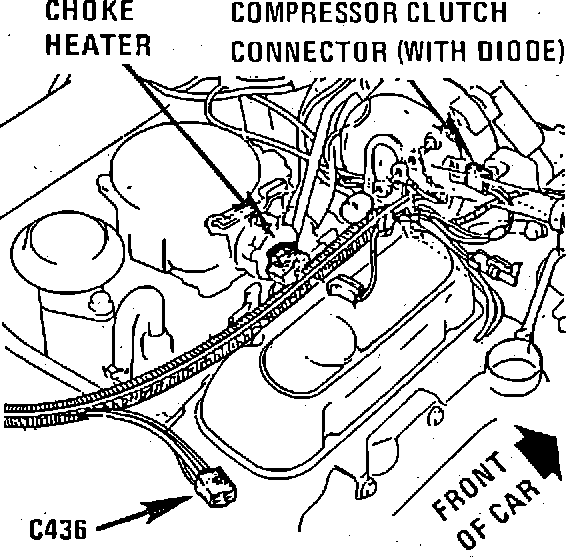

Compressor Clutch Diode

RH Rear Of Engine.:




Taped Inside A/C Compressor Clutch Connector

Applicable to: Oldsmobile w/V6-231/3.8L Engine
