Electronic Spark Control Module

ELECTRONIC SPARK CONTROL MODULE

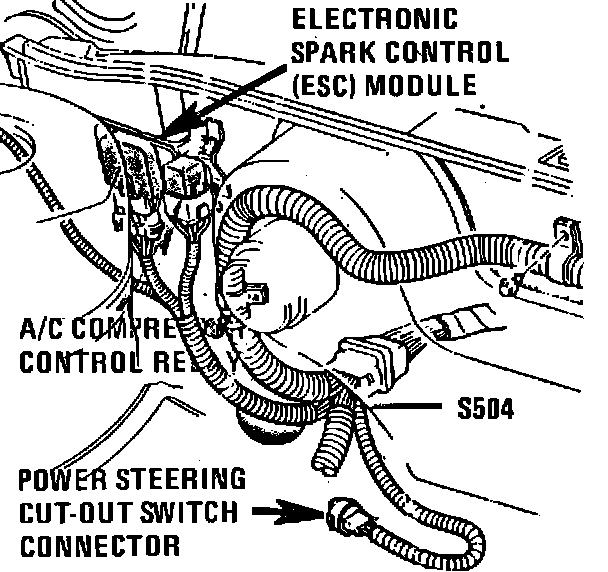

RH Corner Of VIN B Engine Compartment:






The Electronic Spark Control Module is located on the RH rear corner of engine compartment, on dash.
