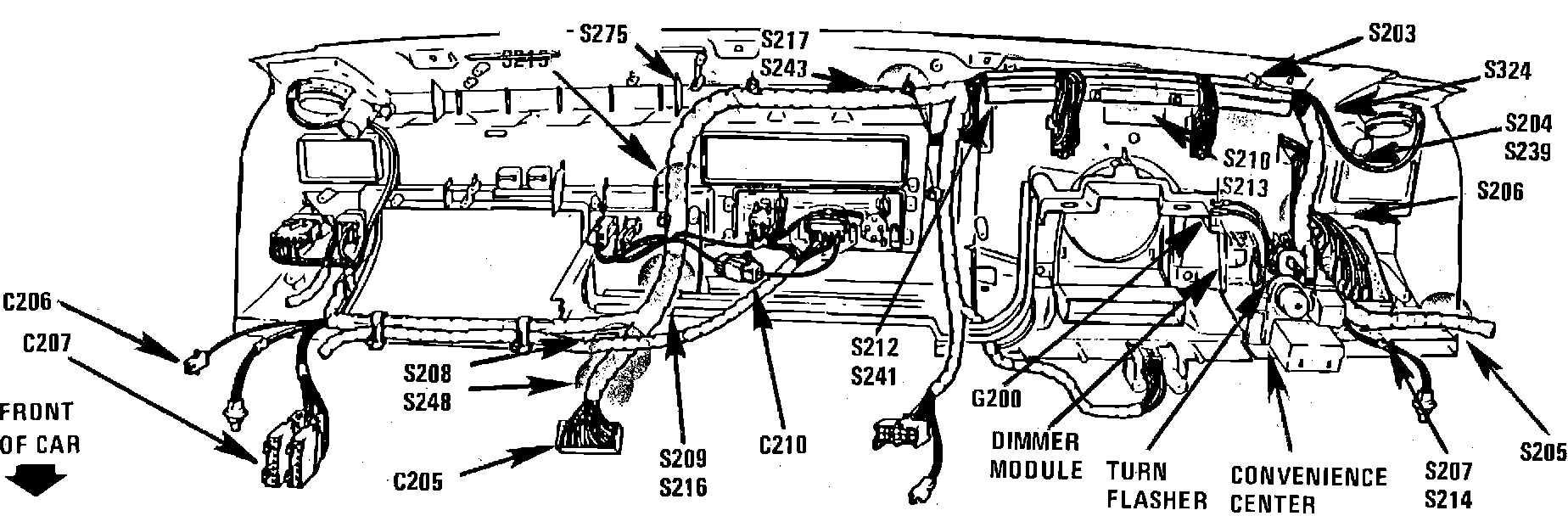

Dimmer Module

Behind I/P.:

Behind LH Side Of I/P Left Of Steering Column

Applicable to: 1987 Calais
