Home >> Oldsmobile >> 1987 >> Ninety-Eight V6-231 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Main Relay (Computer/Fuel System): Locations

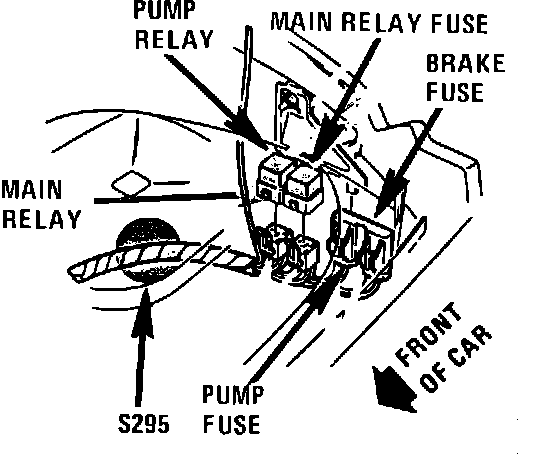

LH Front Of Dash:




LH Rear Of Engine Compartment, Behind Strut Tower

Applicable to: 1987 88 & 98
