Windshield Wiper Motor Module

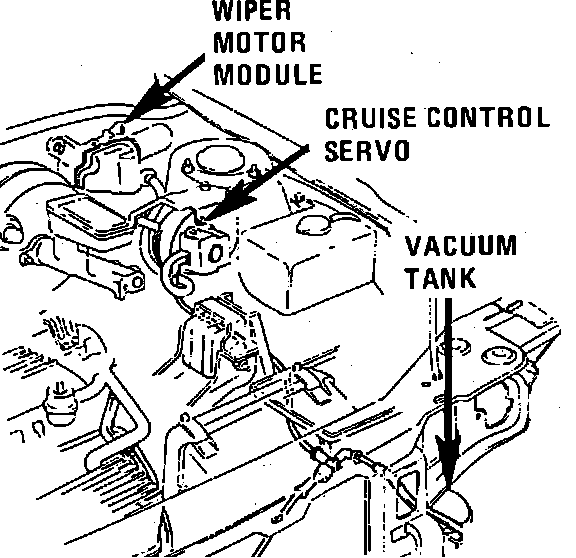

Front Of Dash Panel LH Side.:

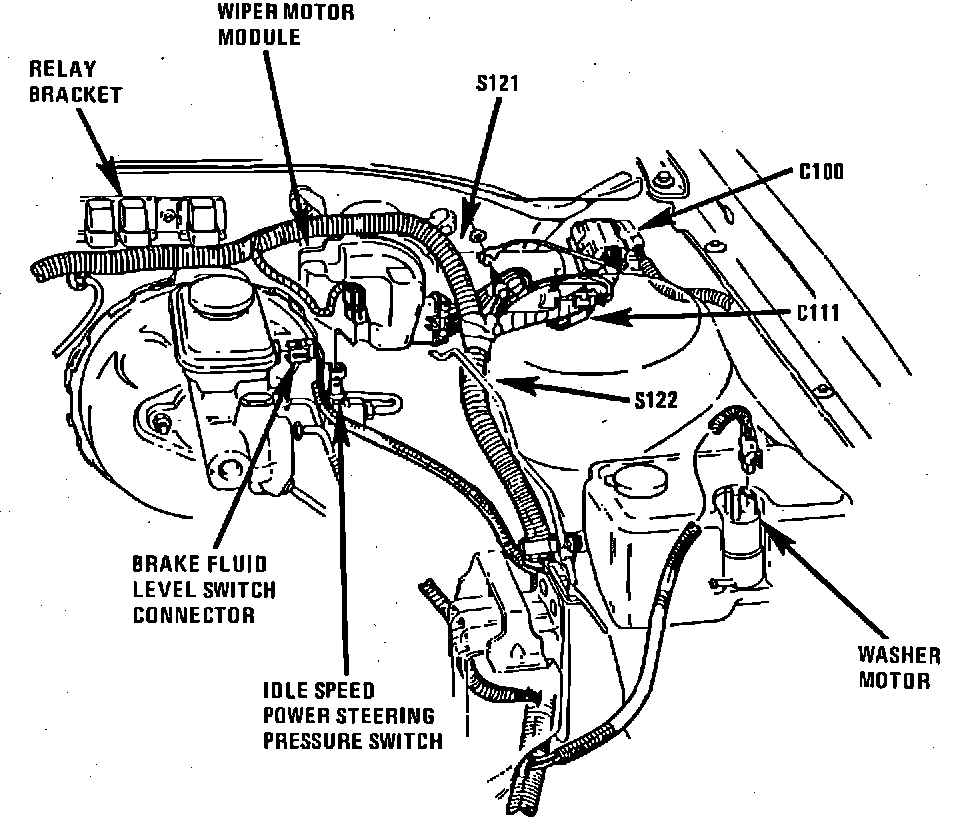

LH Side Of Engine Compartment.:




LH Side Of Engine Compartment

Applicable to: V6-181/3.0L Engine
