System Specifications

Cylinder Head Bolts

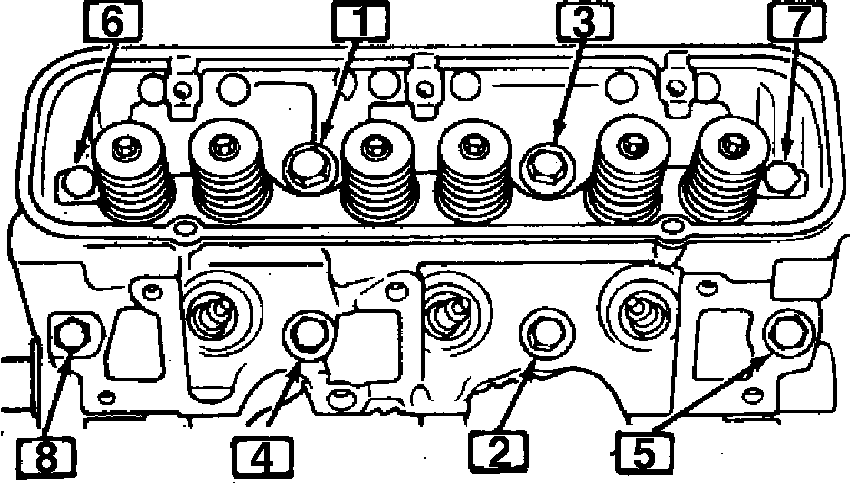

Fig. 1 Cylinder head bolt tightening sequence:

In the specified sequence (refer to figure 1):

^ Torque bolts to 25 ft. lbs.
^ Tighten each bolt 90°
^ Tighten each bolt an additional 90°
