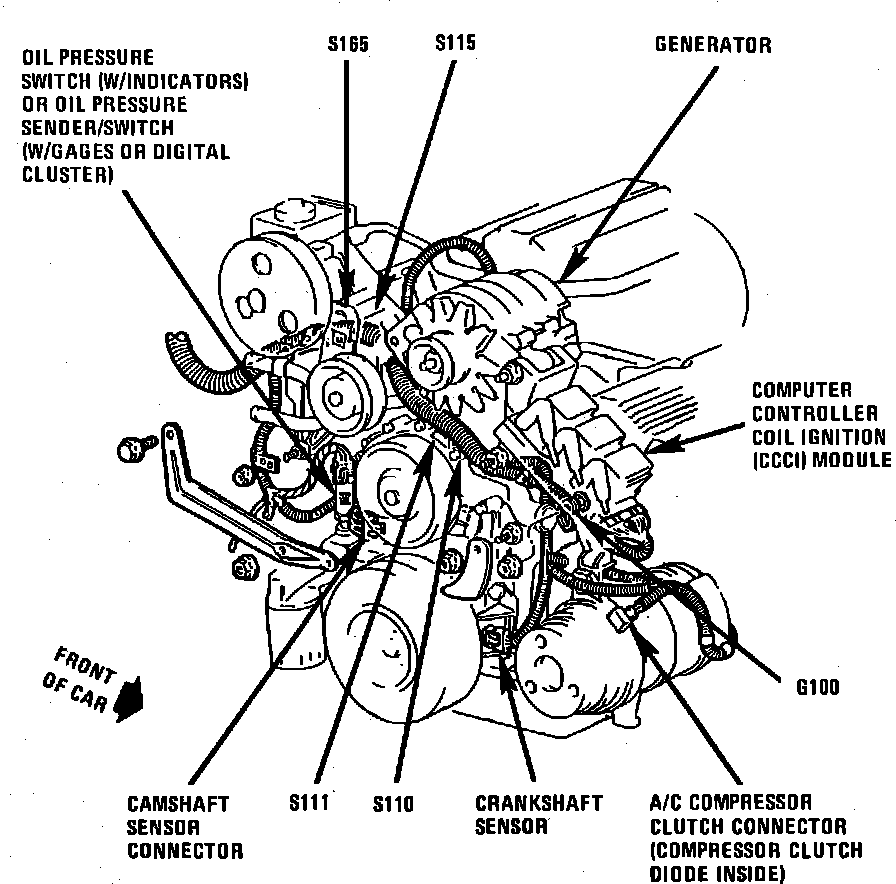

Computer Controlled Coil Ignition Module

RH Side Of V6-231/3.8:




Above RH Side Of Rear Valve Cover

Applicable to: 3.8L (VIN C) Engine. Electra, LeSabre, 88 & 98
