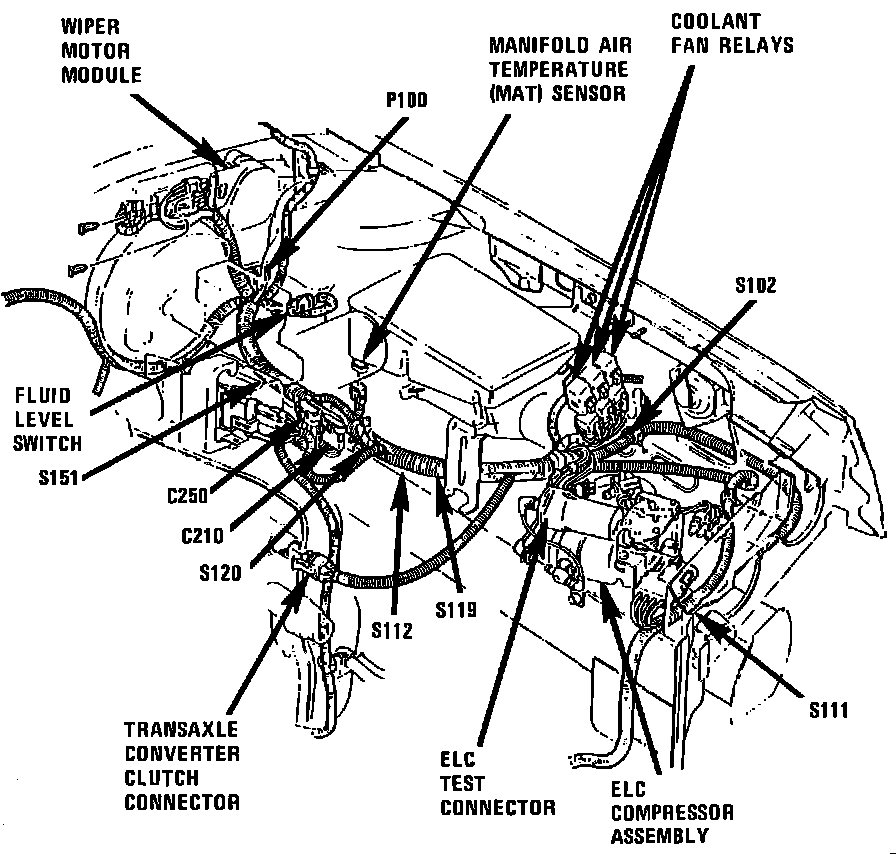

Wiper Module

LH Side Of Engine Compartment.:

Engine Compartment, LH Front Of Dash

Applicable to: 88 & 98
