Trouble Code Diagnosis

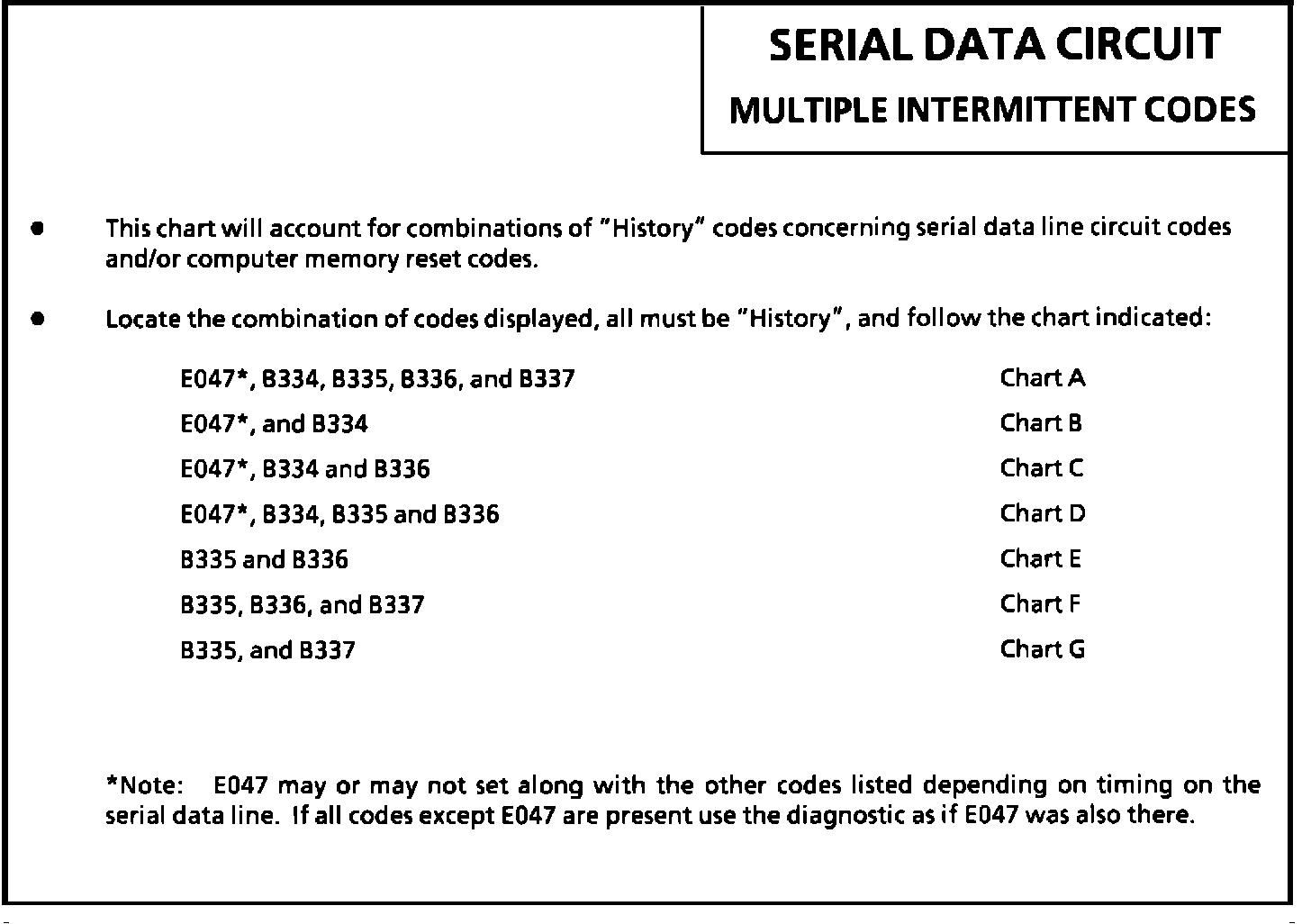

Multiple Intermittent Codes:

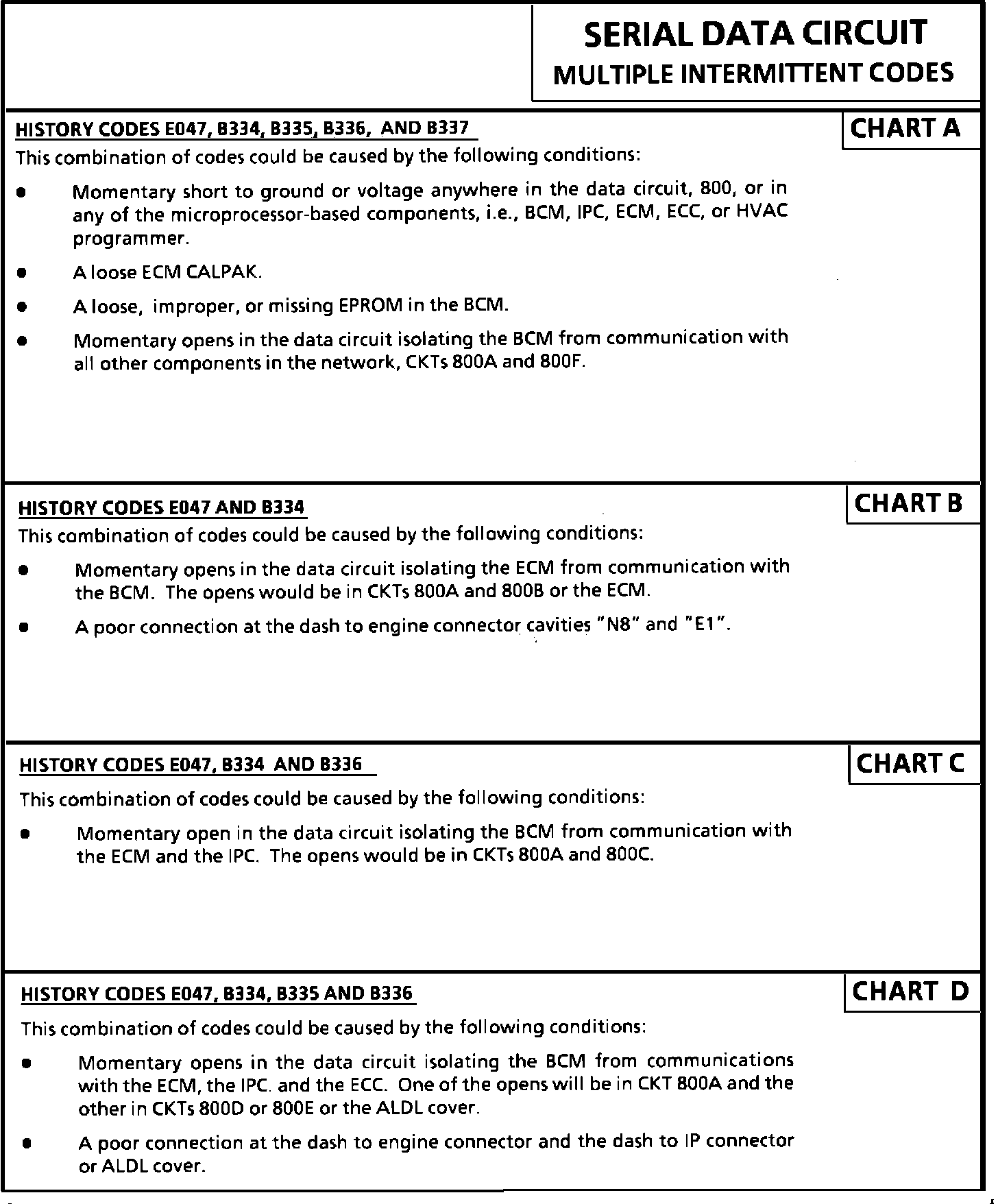

Serial Data Circuit - Charts A through D:

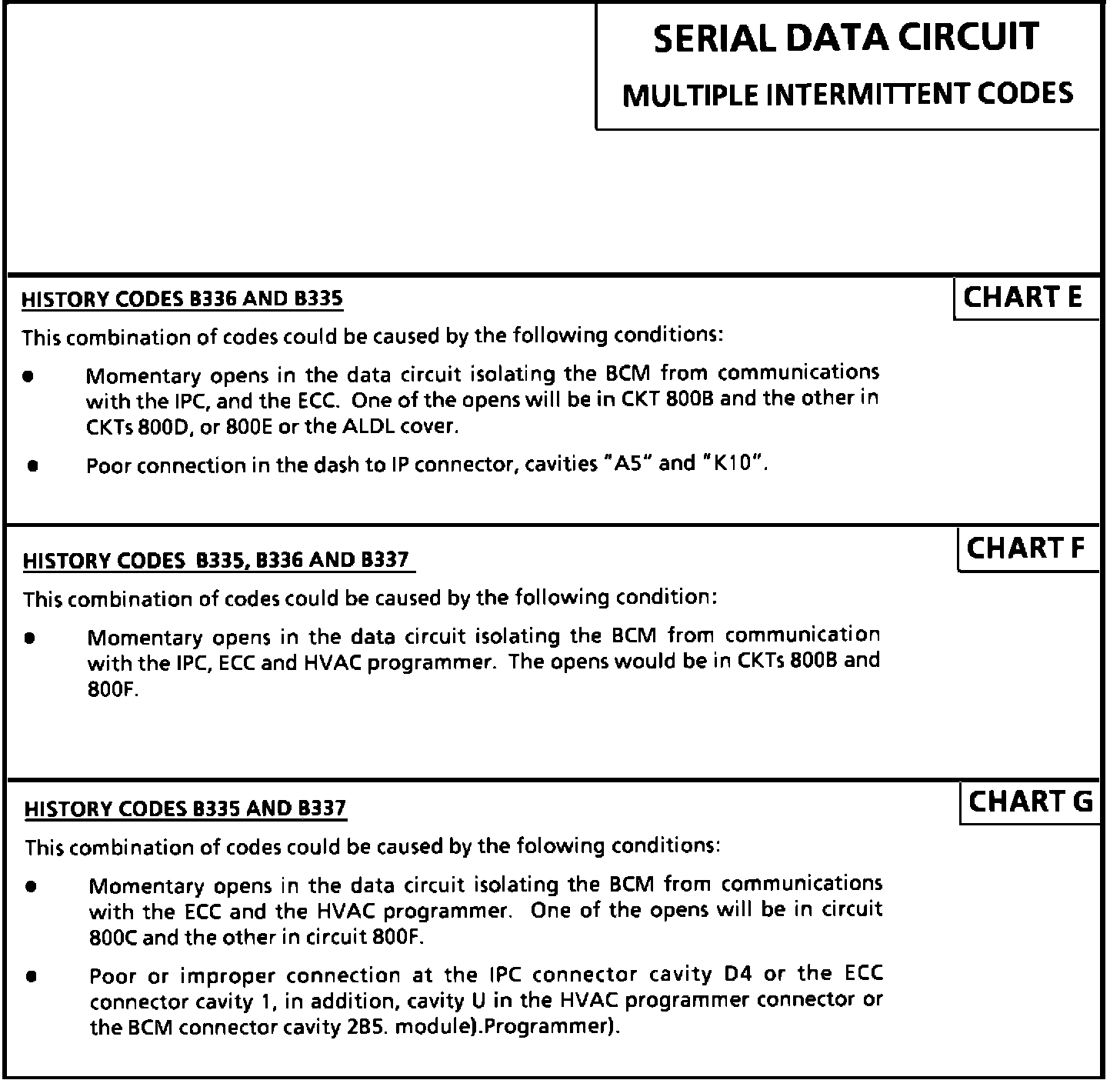

Serial Data Circuit - Charts E through G:

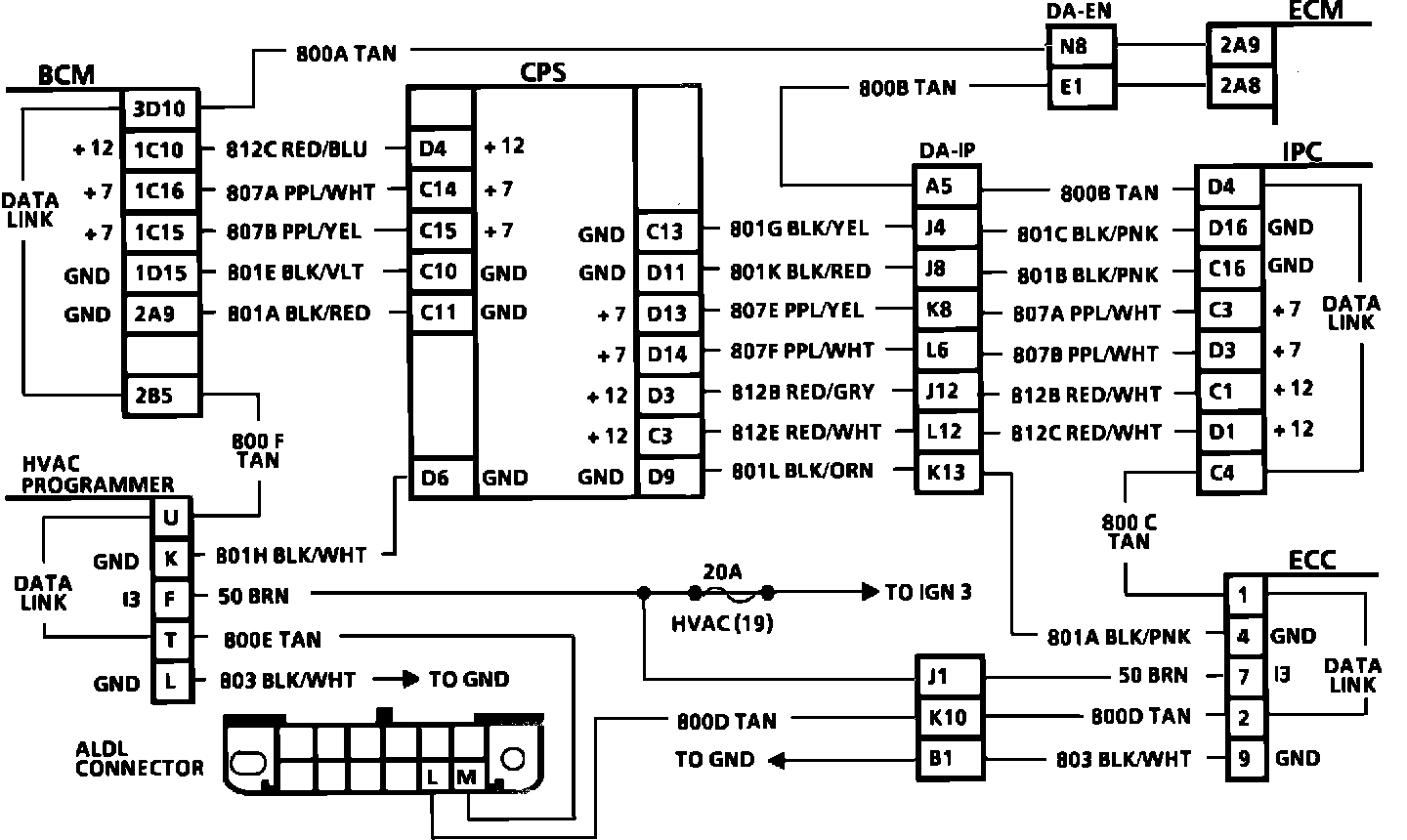

Wiring Diagram for Serial Data Circuit:
