Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| A/C Programmer (Auto. A/C) | Behind right side of dash, on A/C-heater plenum. | |
| A/C Blower/Clutch Control Module | On top of blower plenum. | |
| Audio Alarm Module | On convenience center. | |
| Cruise Control Module | Under left side of dash, to left of steering column. | |
| Electronic Control Module (ECM) | ||

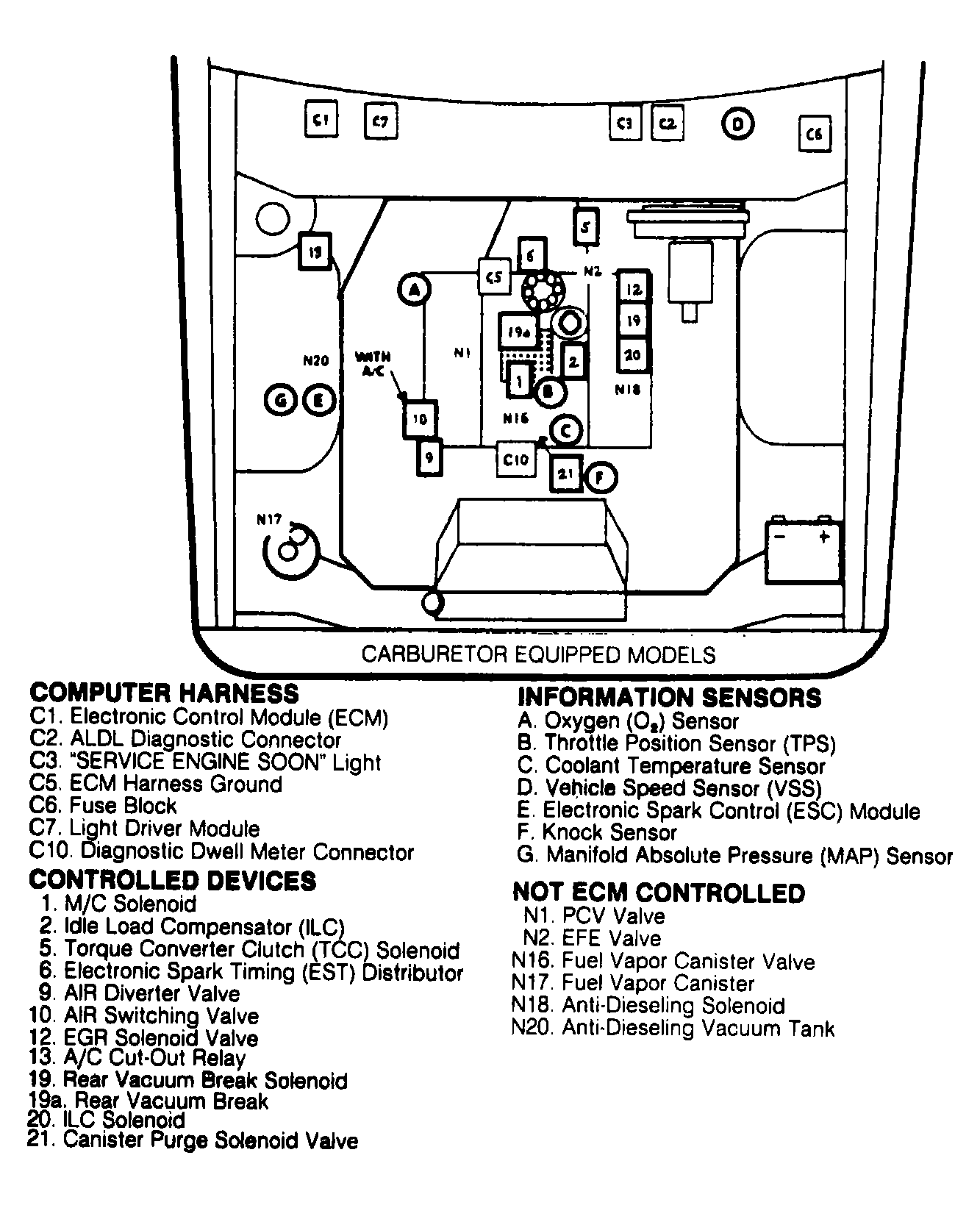

| Carbureted | Behind right kick panel. See Figure . | |
| TBI | Behind right kick panel. See Figure . | |
| Elect. Spark Control (ESC) Module | ||
| Carbureted | At center of firewall. See Figure . | |
| TBI | At center of firewall. See Figure . | |
| Illuminated Entry Timer | Behind dash, left of steering column. | |
| Light Driver Module (Carb.) | Behind right side of dash, above ECM. See Figure . | |
| Multi-Function Chime Module | On convenience center. | |
| Twilight Sentinel Control | Under left side of dash, at rear of headlight switch. | |
