System Specifications

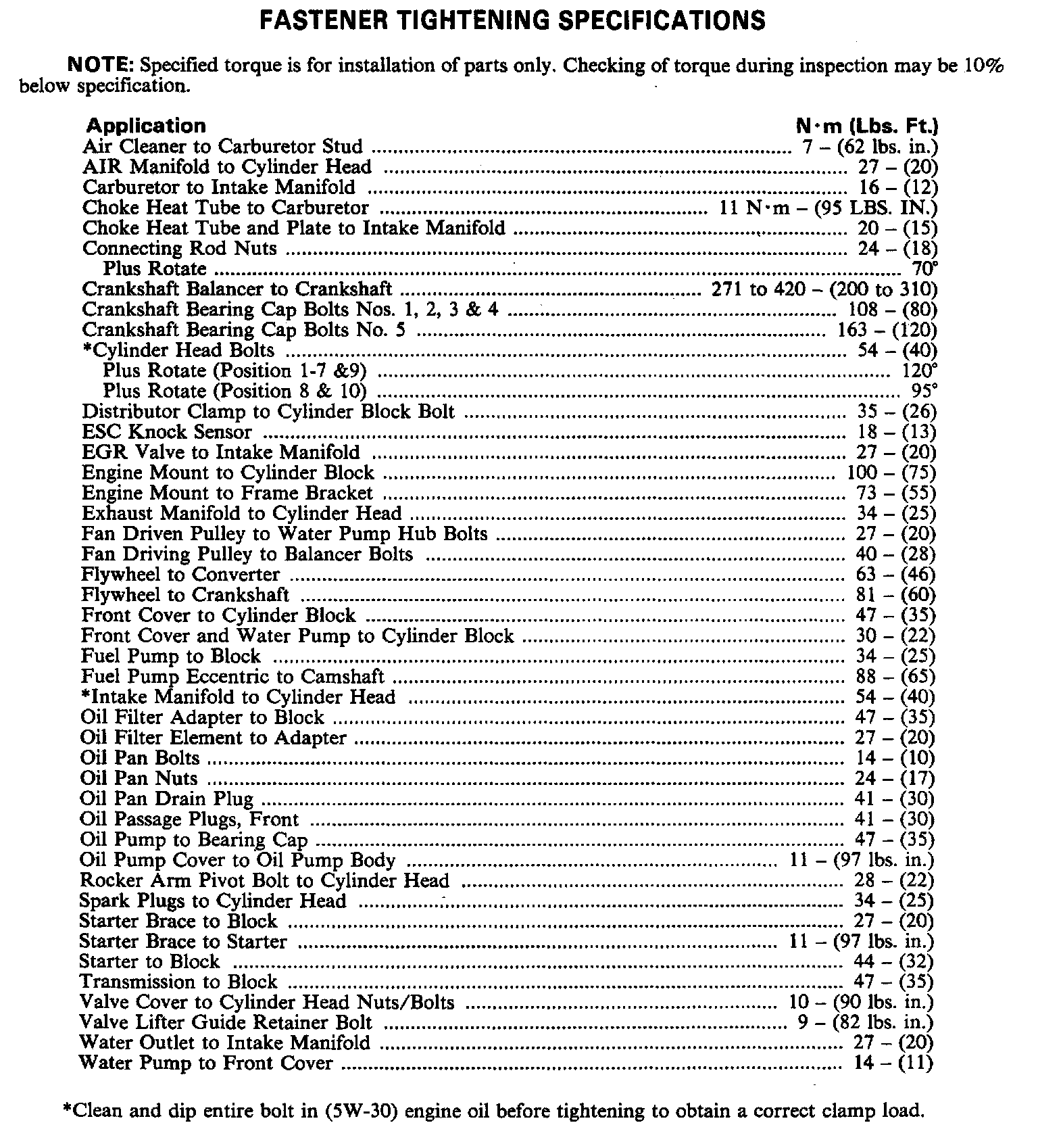

Torque Sequence:

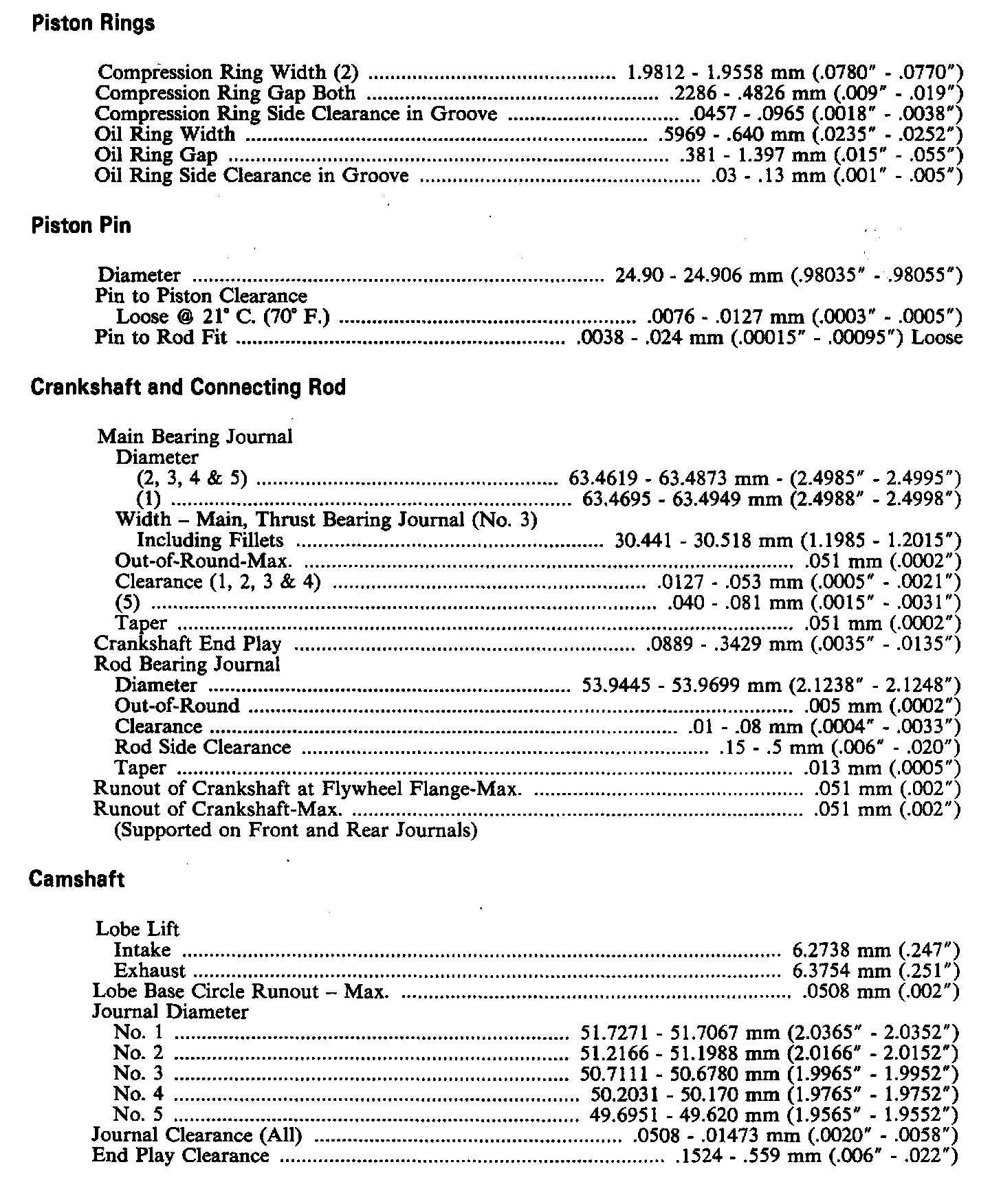

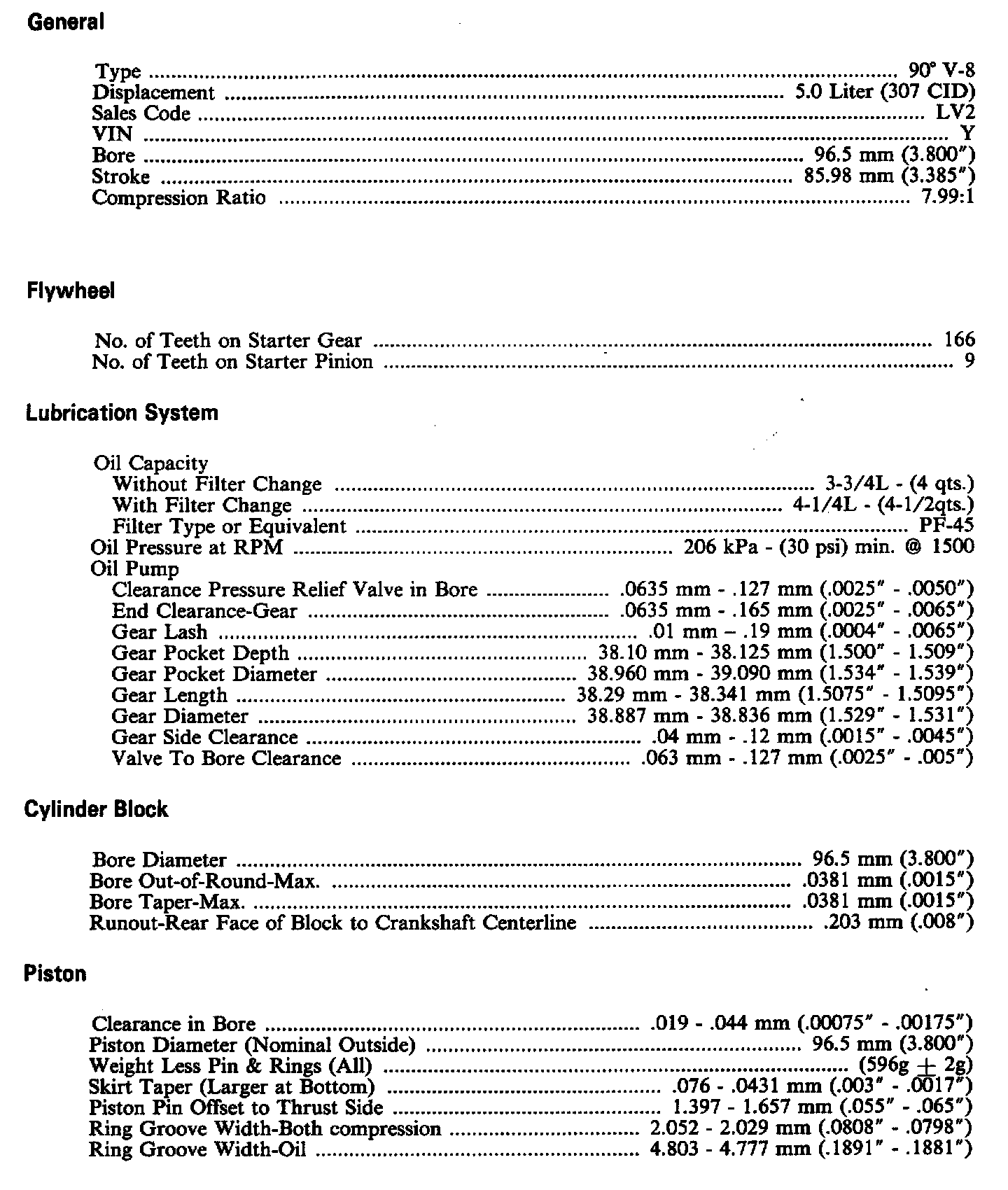

Engine Specifications:





Engine Specifications:

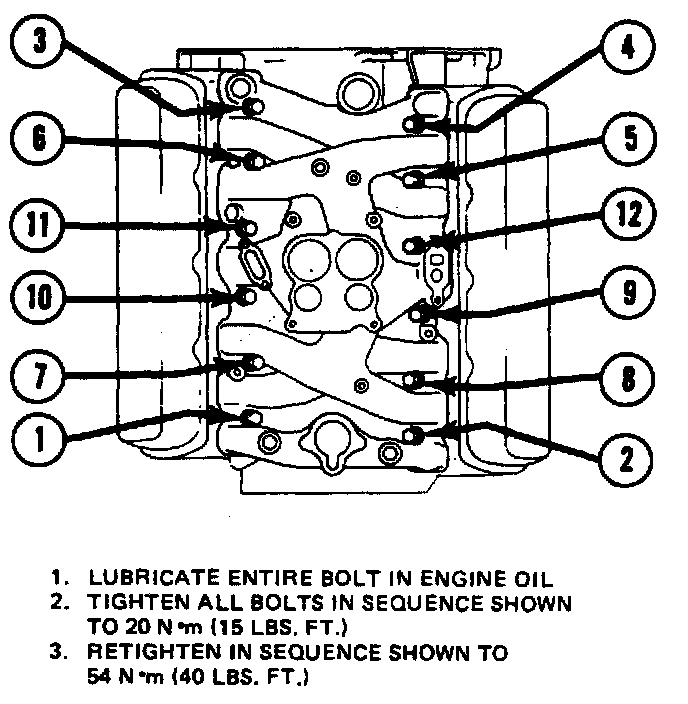

Intake Manifold Torque Sequence:





Cylinder Head Torque Sequence:
