Toronado V6-3800 3.8L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Control Module
PCM Connector End View (1 Of 2):

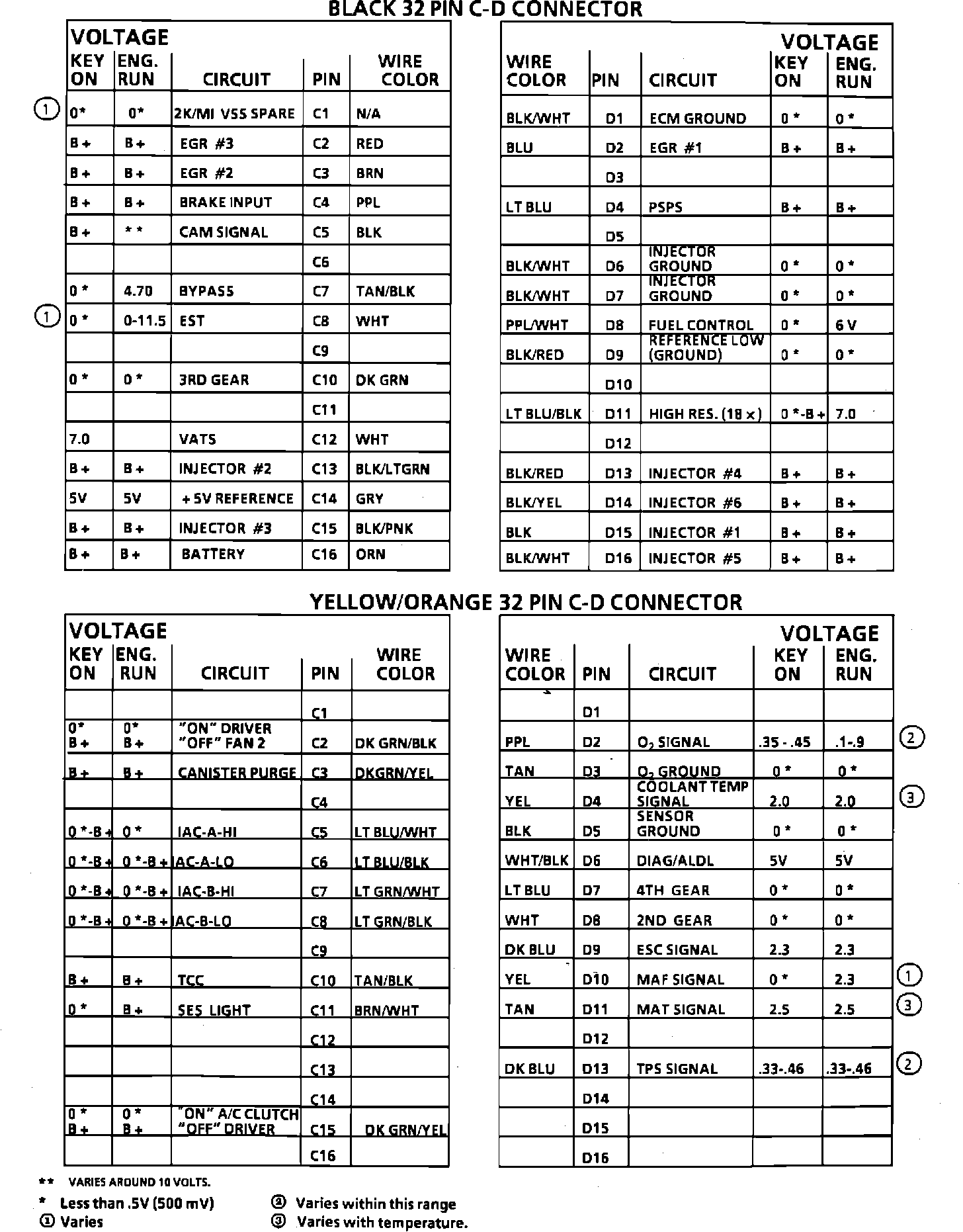

PCM Connector End View (2 Of 2):
