Engine Specifications

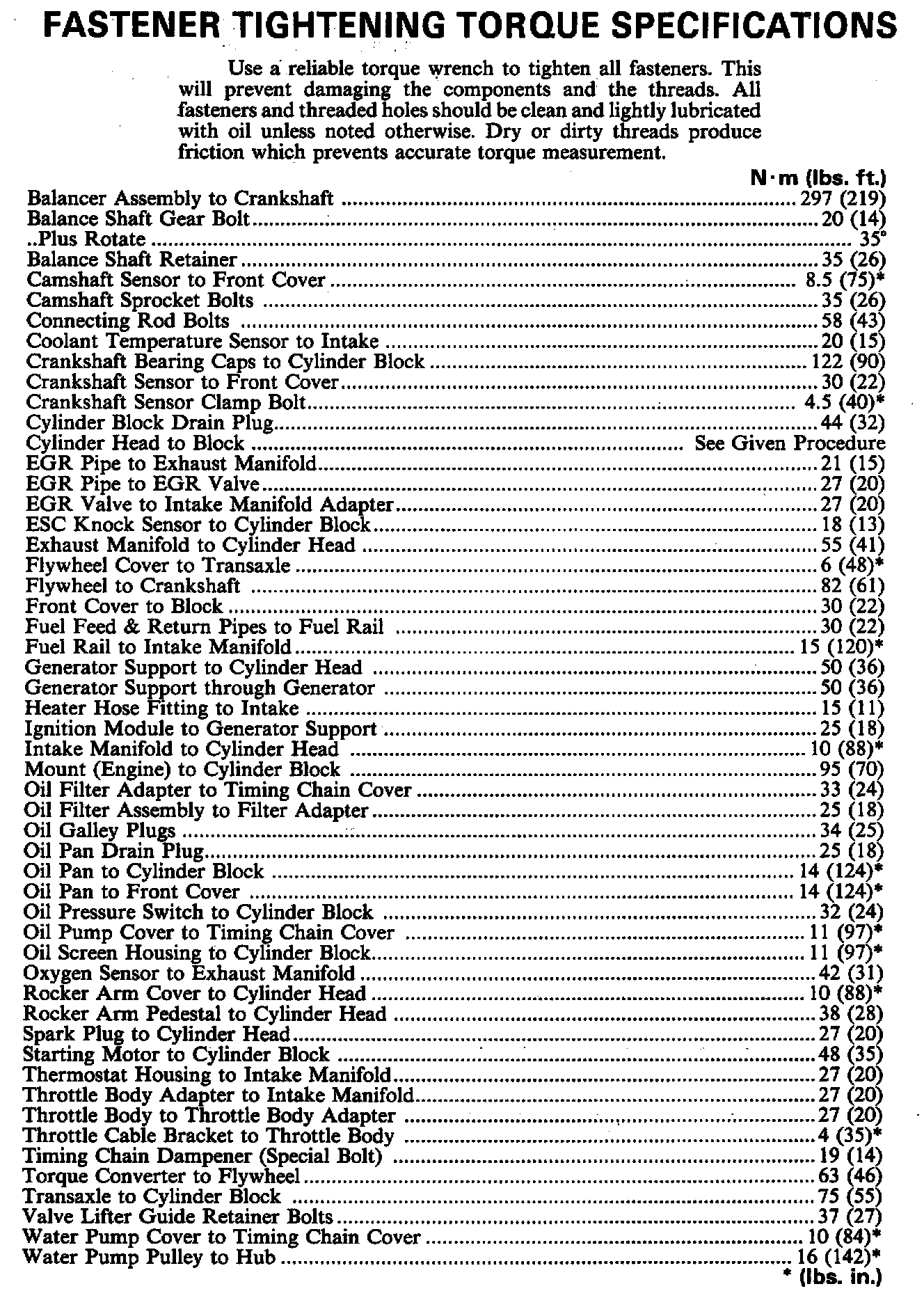

Torque Specifications:

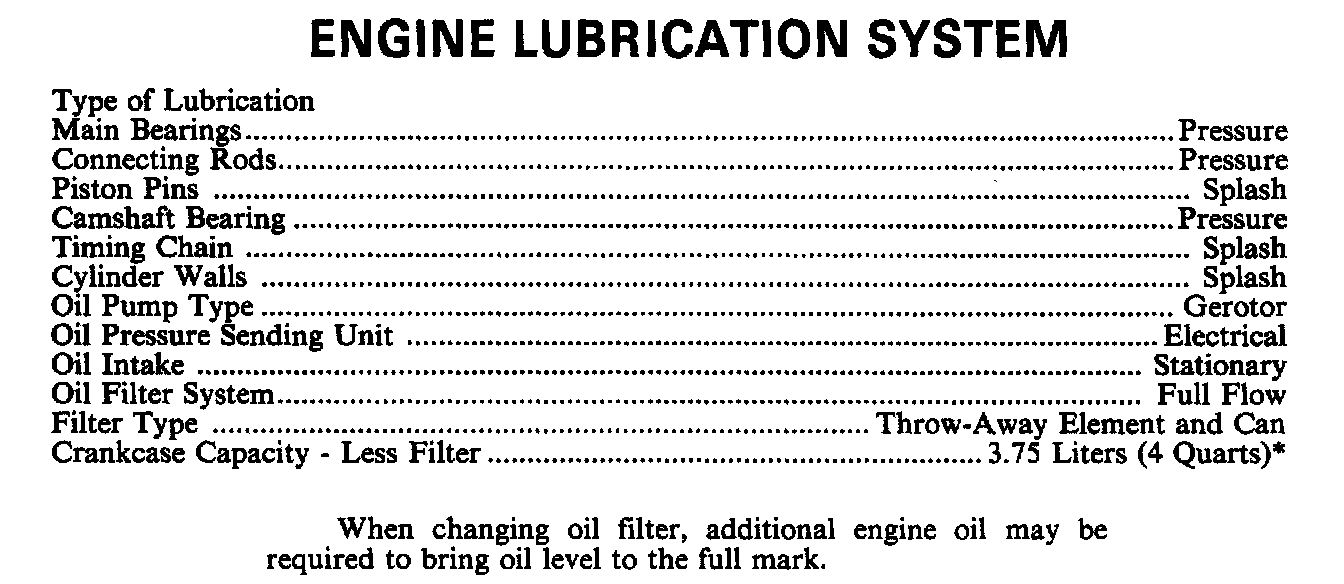

Engine Specifications:





Intake Manifold Torque Sequence:





Cylinder Head Torque Sequence:
