Individual Power Window Switch Test

To test an individual power window switch, see Fig 1 . To identify wire colors associated with terminal letters, see WIRING DIAGRAMS .

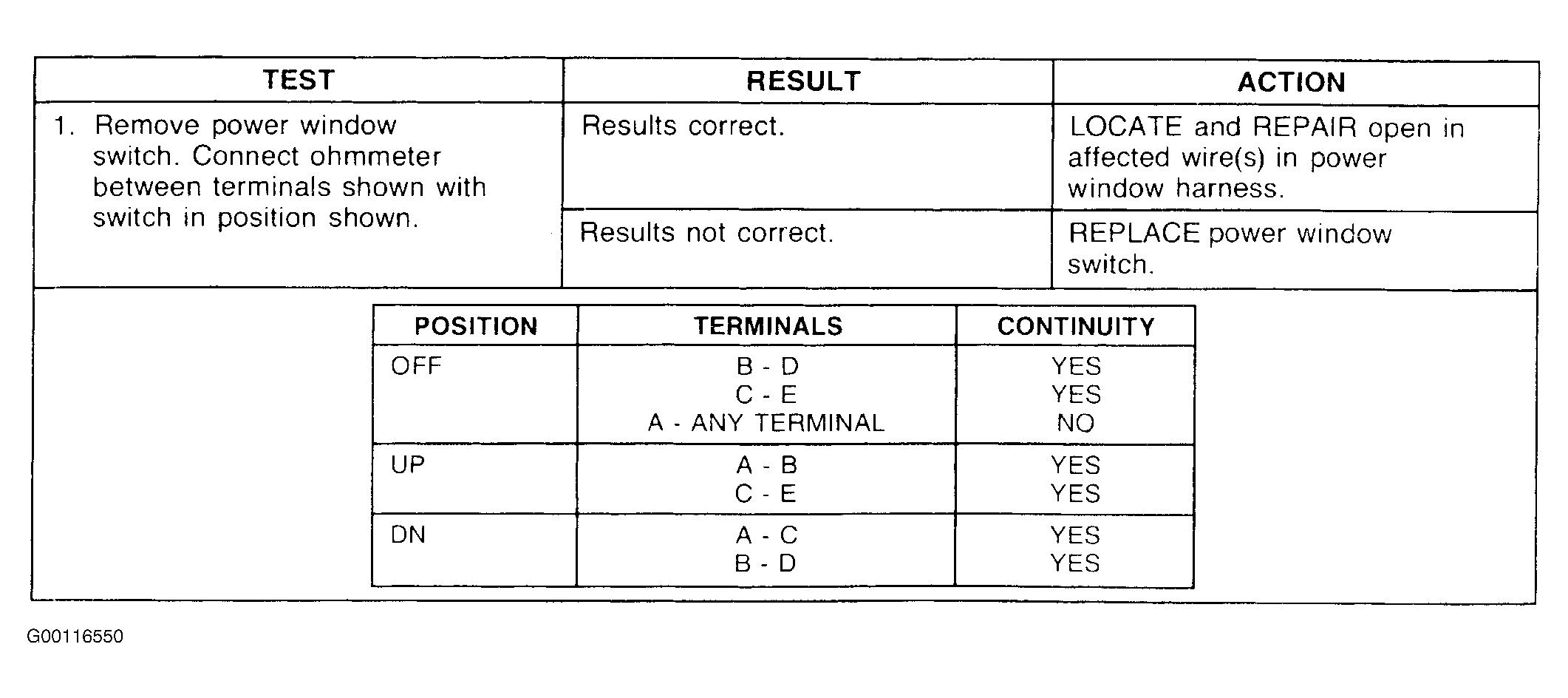

Fig 1: Individual Power Window Switch Test

Courtesy of GENERAL MOTORS CORP.
