Master Power Window Switch Test

To test master power window switch, see Fig 1 .To identify wire colors associated with terminal letters, see WIRING DIAGRAMS .

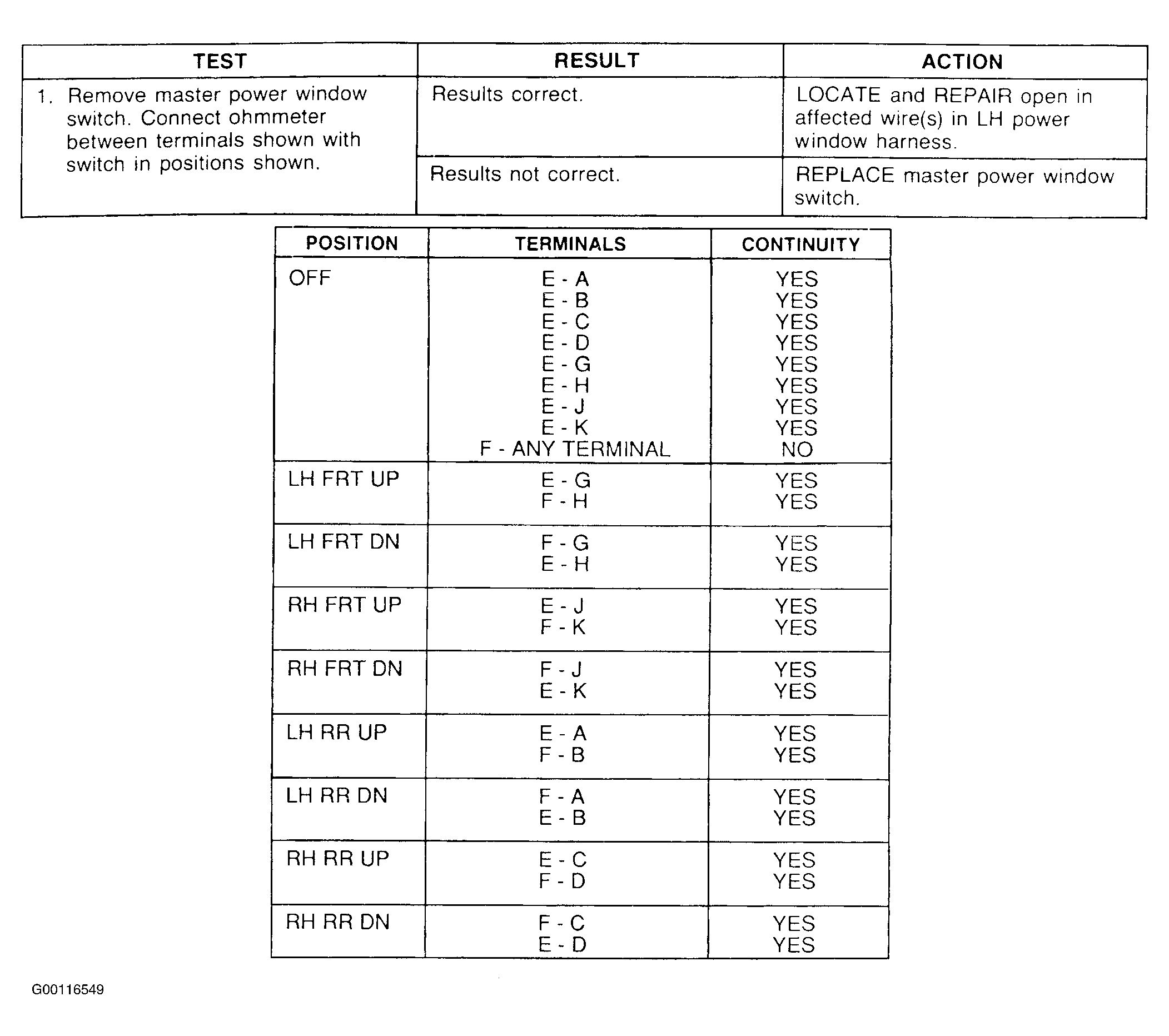

Fig 1: Master Power Window Switch Test

Courtesy of GENERAL MOTORS CORP.
