A/C Compressor Control Relay

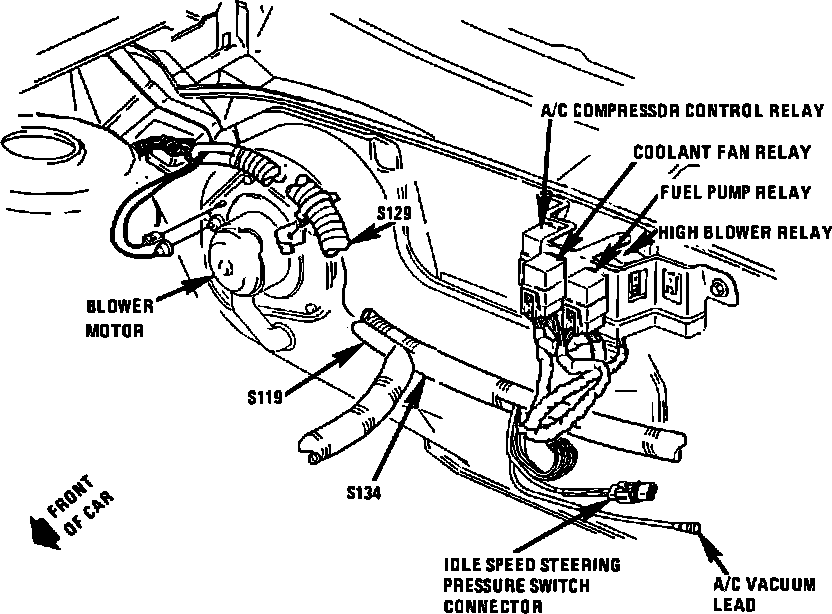

Center Front Of Dash:




Front Of Dash.:




Engine Compartment Components.:






Center Front Of I/P, On Relay Bracket

Applicable to: 2.5L/4-151
