Test D (Rear Wiper Module - Rear Wiper/Washer Switch)

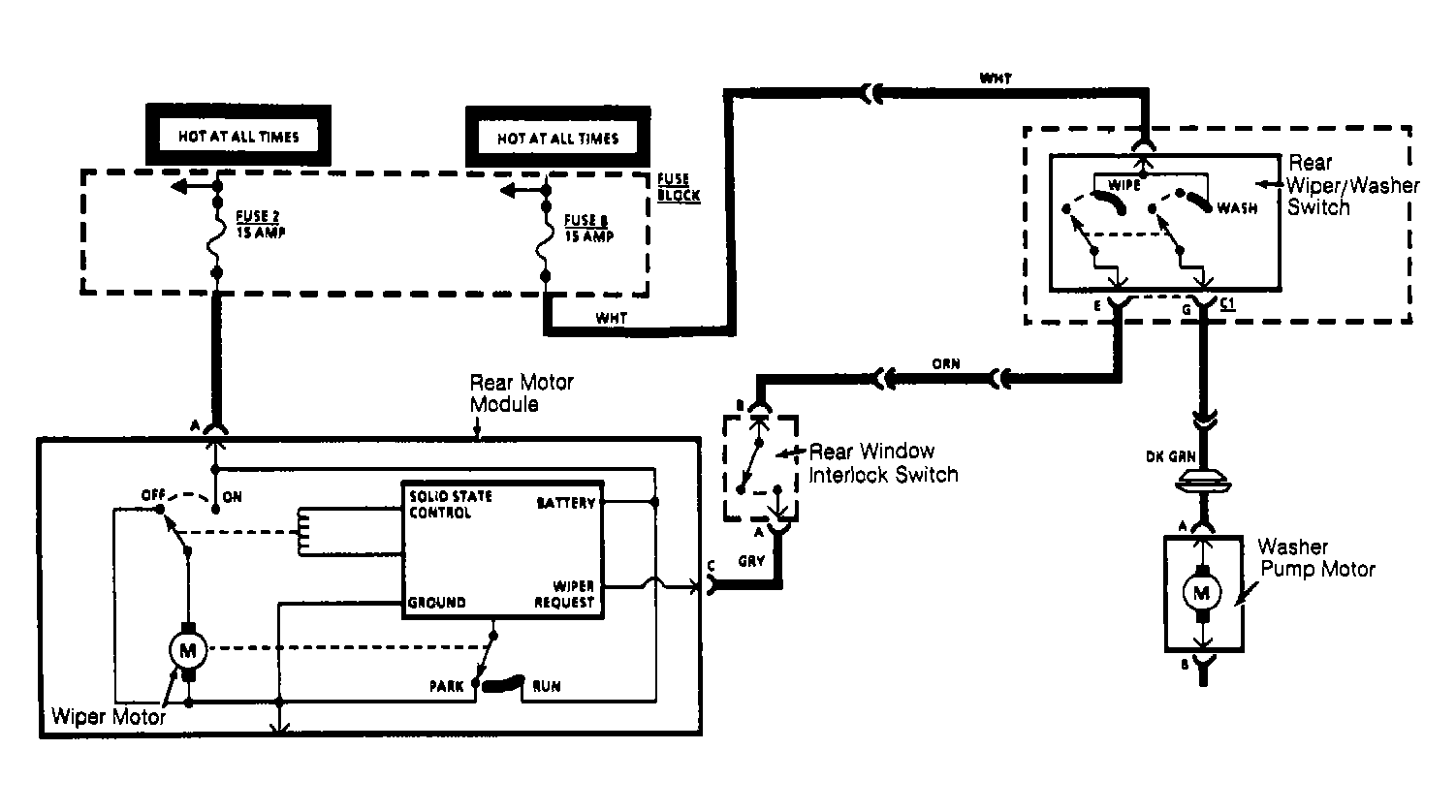

- Open rear window. If wiper turns off, check for short in wiring from rear window wiper/washer switch to rear window interlock switch. If no short is found, replace rear window wiper/washer switch. See Figure .
- If wiper does not turn off, check for short in wiring from interlock switch to wiper motor module. If no short is found, replace wiper motor module.
