Test C: Express Down Window Module Test

For testing procedure, see Fig 1 .

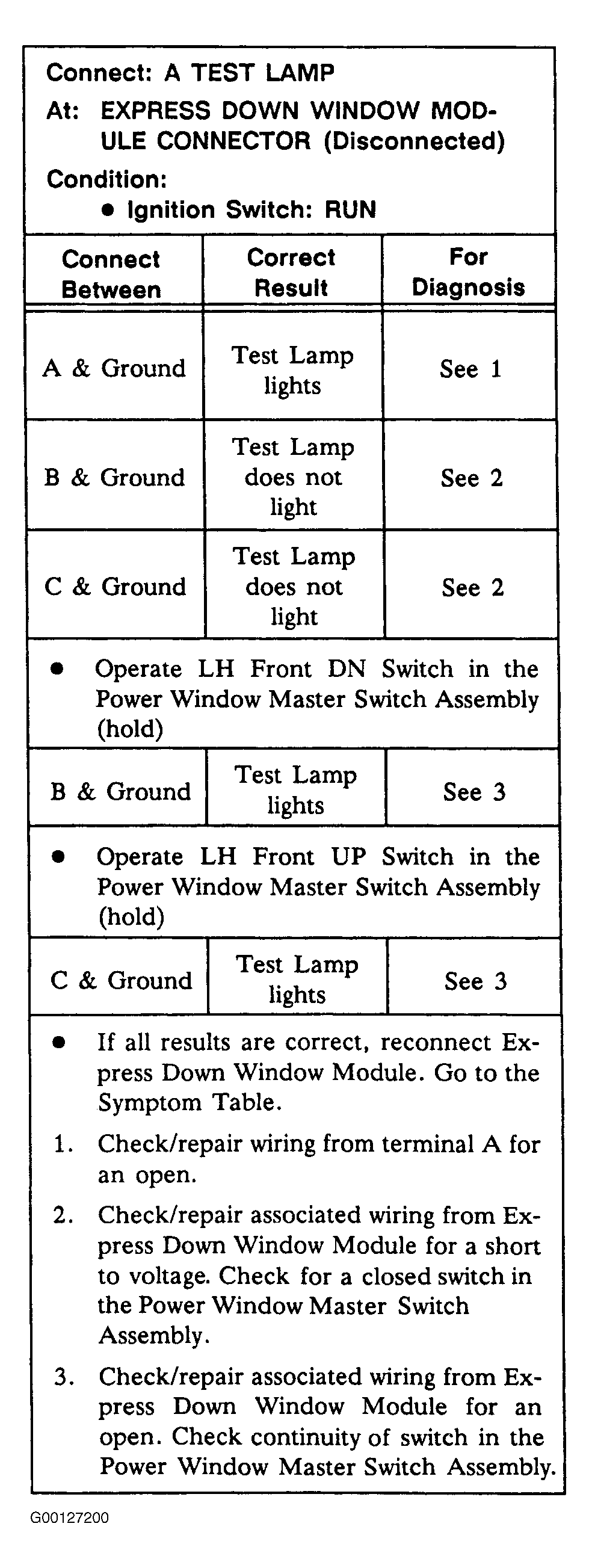

Fig 1: Test C: Express Down Window Module Test
G00127200Courtesy of GENERAL MOTORS CORP.
