Ignition Control Module: Diagrams

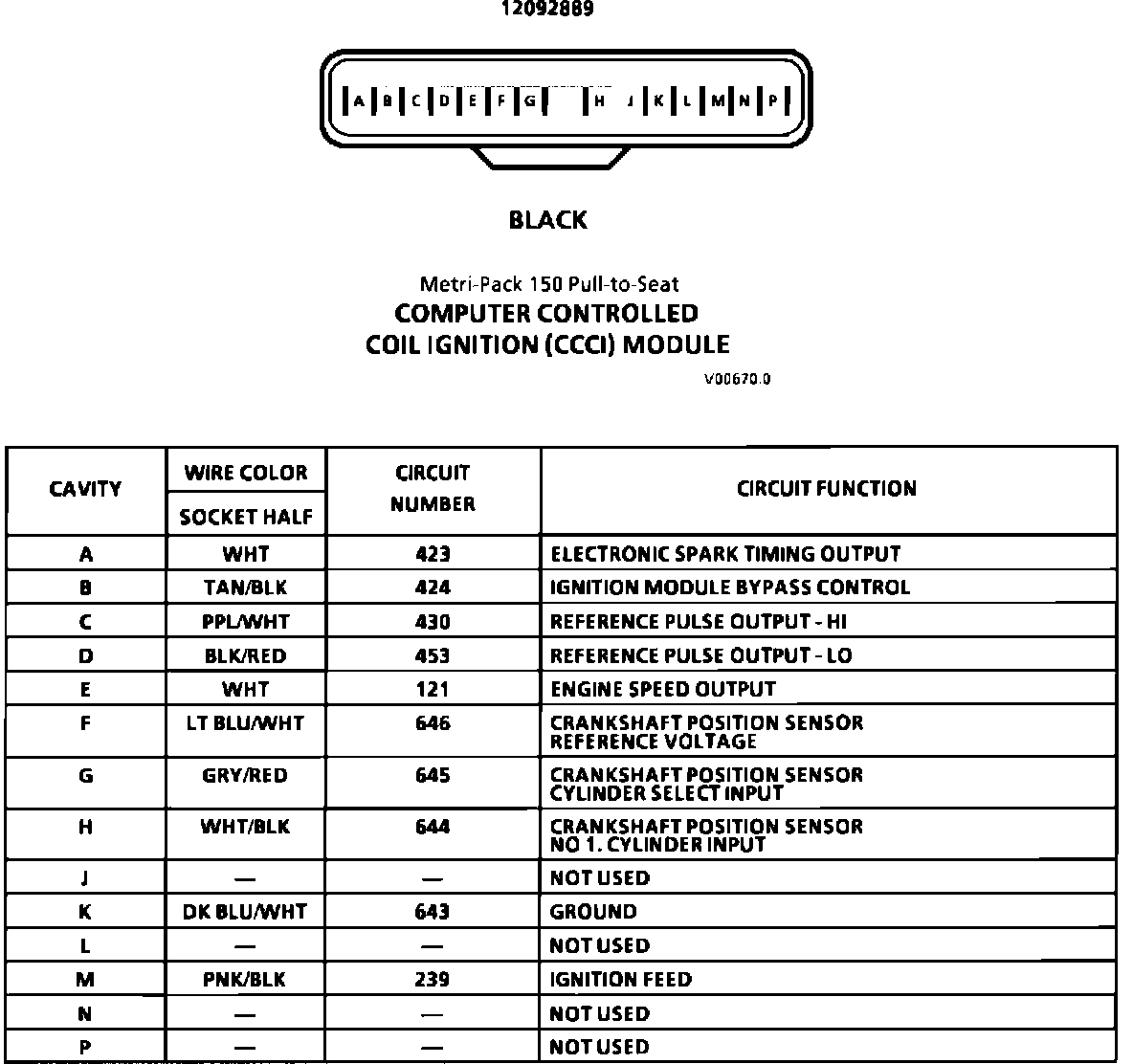

Computer Controlled Coil Ignition (CCCI) Module Connector Face:

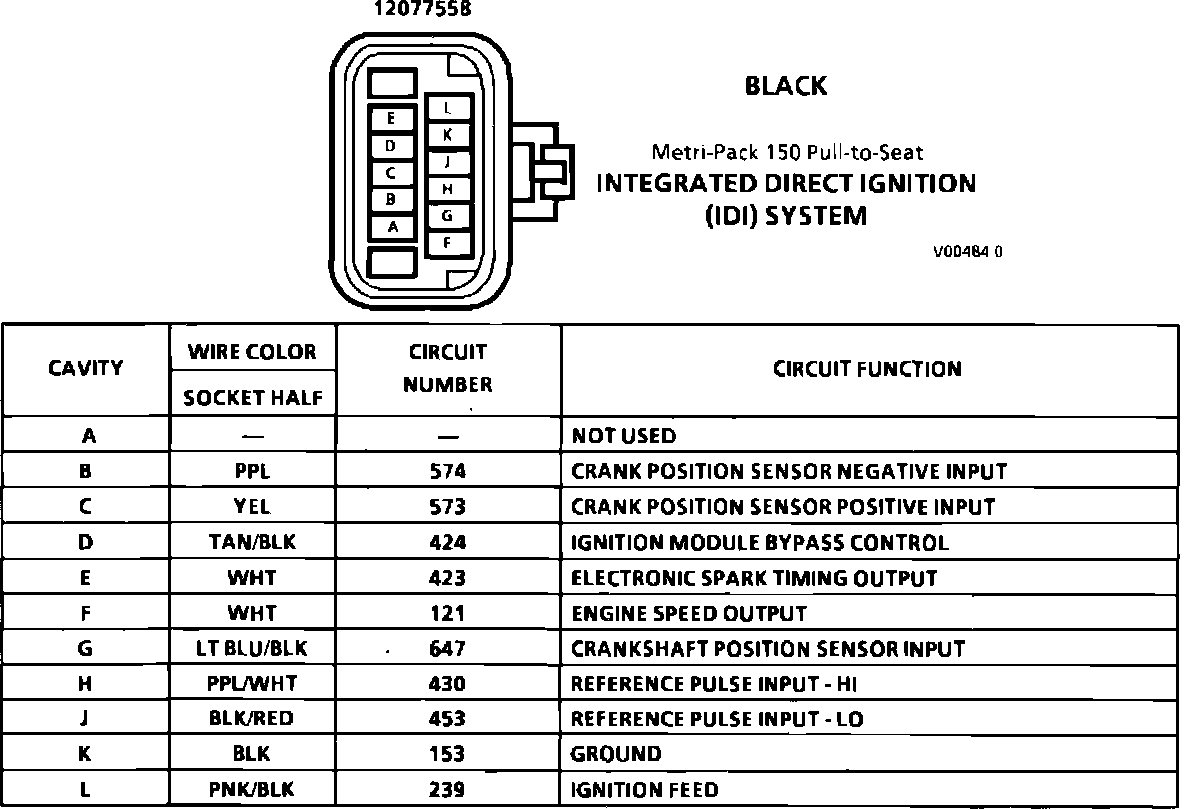

Integrated Direct Ignition (IDI) System Connector Face:
