Data Link Connector: Locations

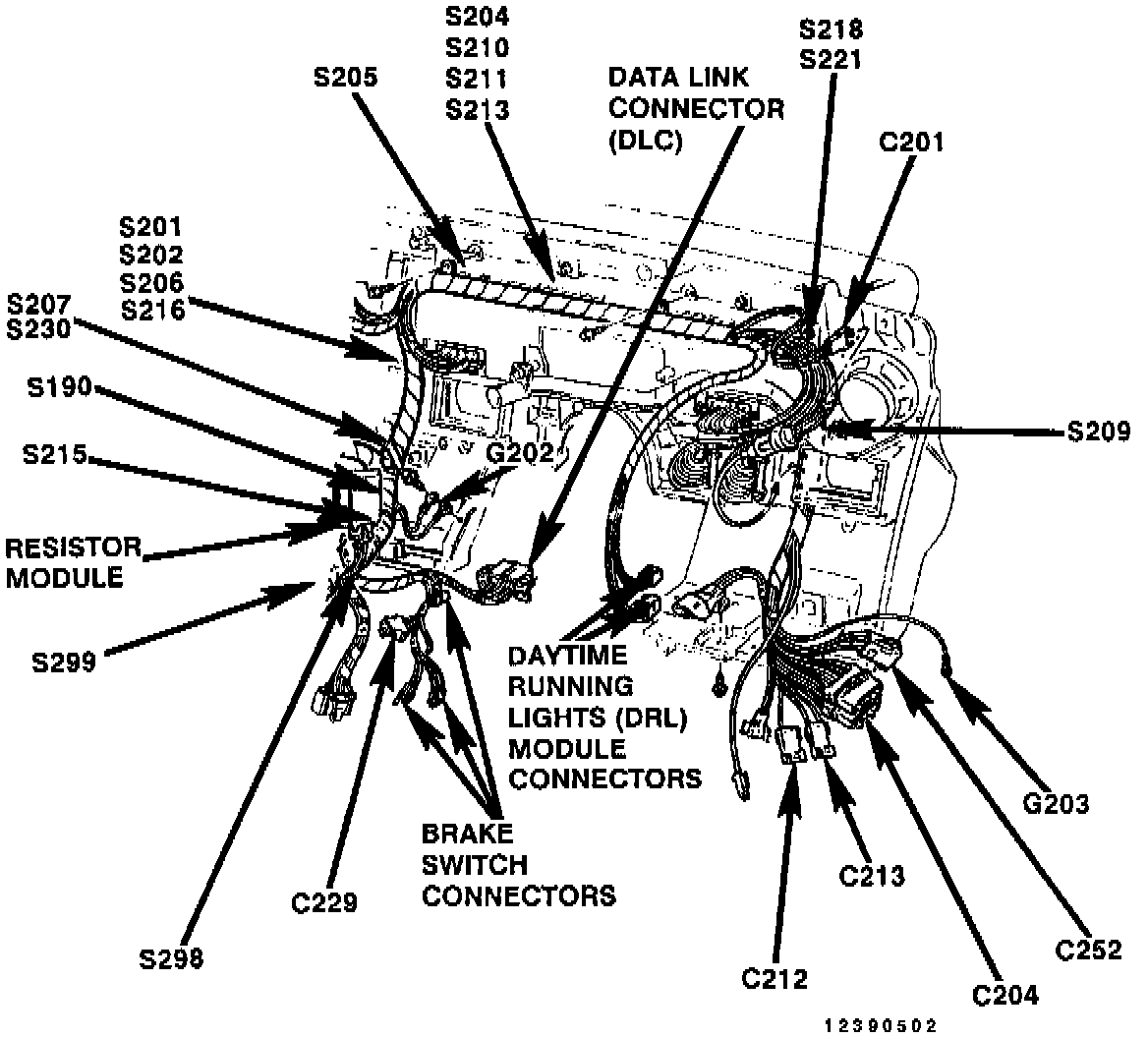

Component Location Views:






The Data Link Connector is located below LH side of I/P, near steering column.
