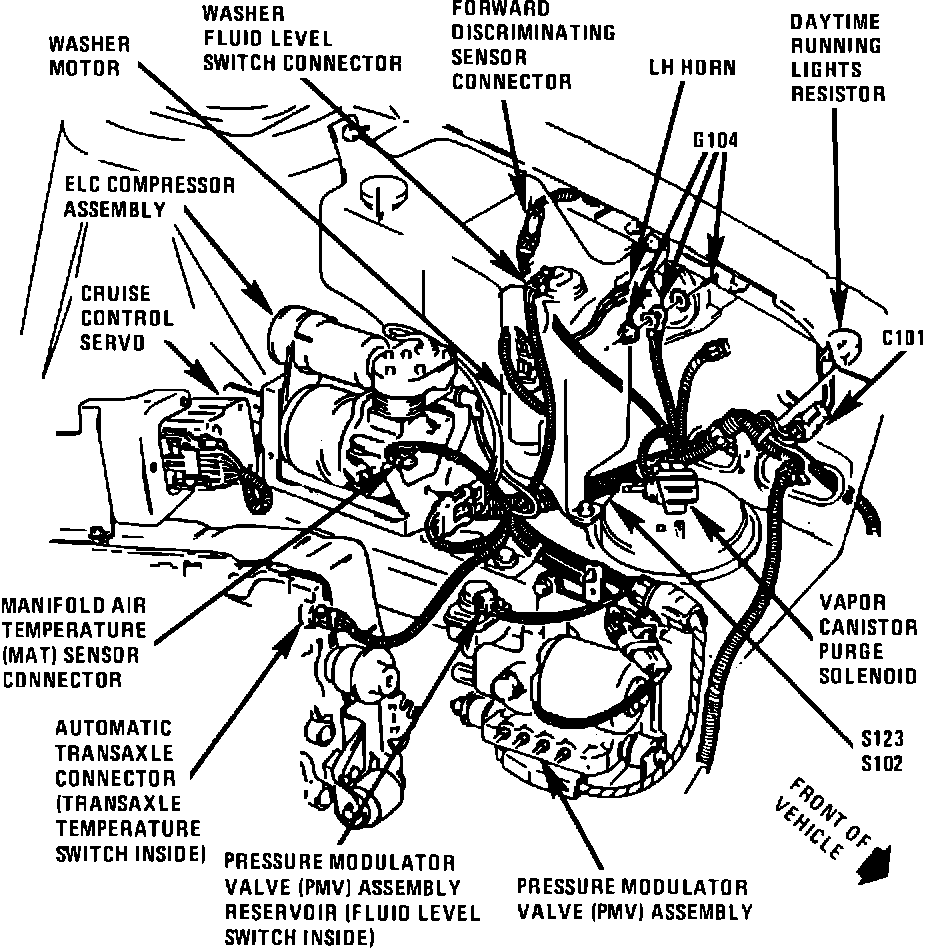

ELC Compressor Assembly

LH Side Of Engine Compartment:




LH Side Of Engine Compartment, Beside Wheelhouse

Applicable to: Ninety Eight, Park Avenue & 1992 Bonneville, Eighty Eight & LeSabre
