A/C Compressor Control Relay

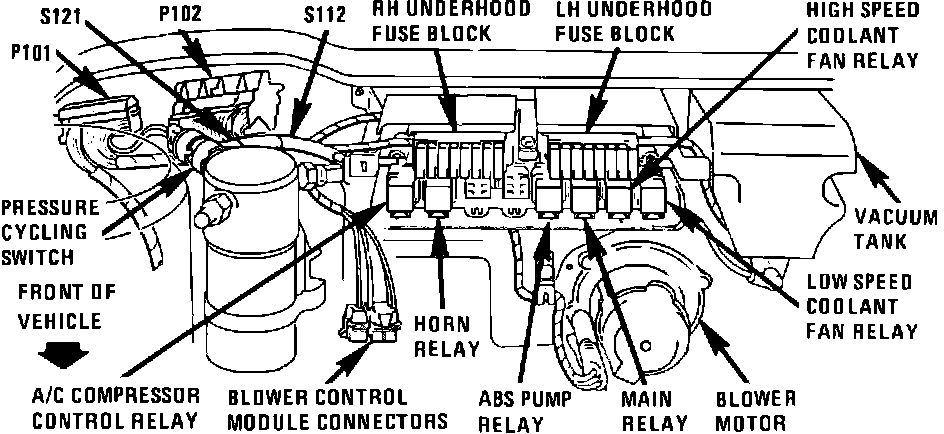

Rear Of Engine Compartment:




Center Rear Of Engine Compartment, In RH Underhood Fuse Block

Applicable to: Ninety Eight, Park Avenue & 1992 Bonneville, Eighty Eight & LeSabre
