Adaptive Lamp Monitor Module

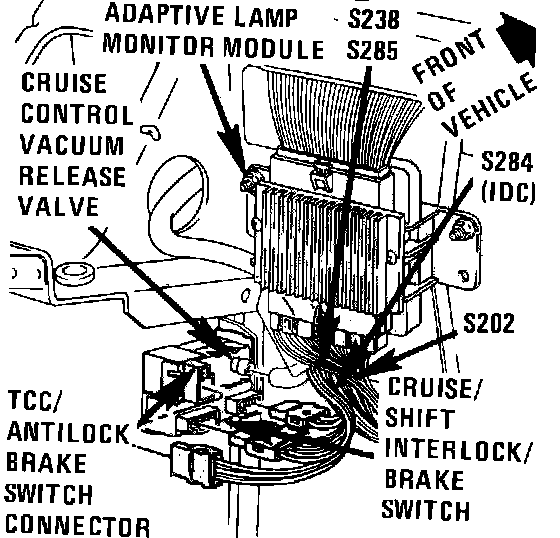

Component Location View. Behind LH Side of I/P, Right of Steering Column:





Behind I/P, RH side of steering column support
