Ignition Control Module: Locations

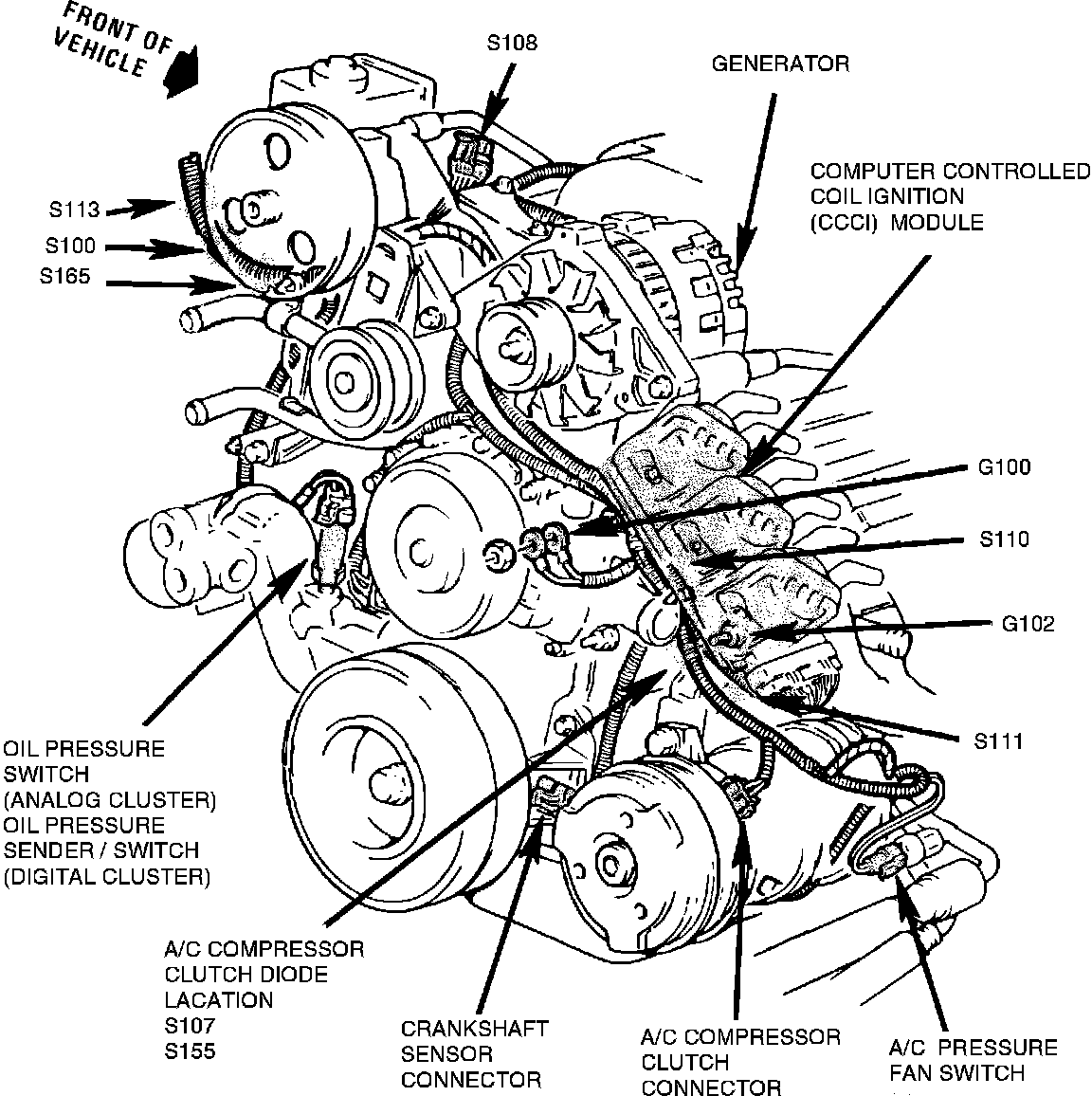

Component Location View. RH Side of Engine:
Top RH front of engine, RH end of front valve cover
