Home >> Oldsmobile >> 1992 >> Delta 88 V6-3800 3.8L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Control Module HVAC >> Testing and Inspection >> Test B: Blower Control Module Test

April 5, 2026: LEMON Manuals is launched! Read the announcement.

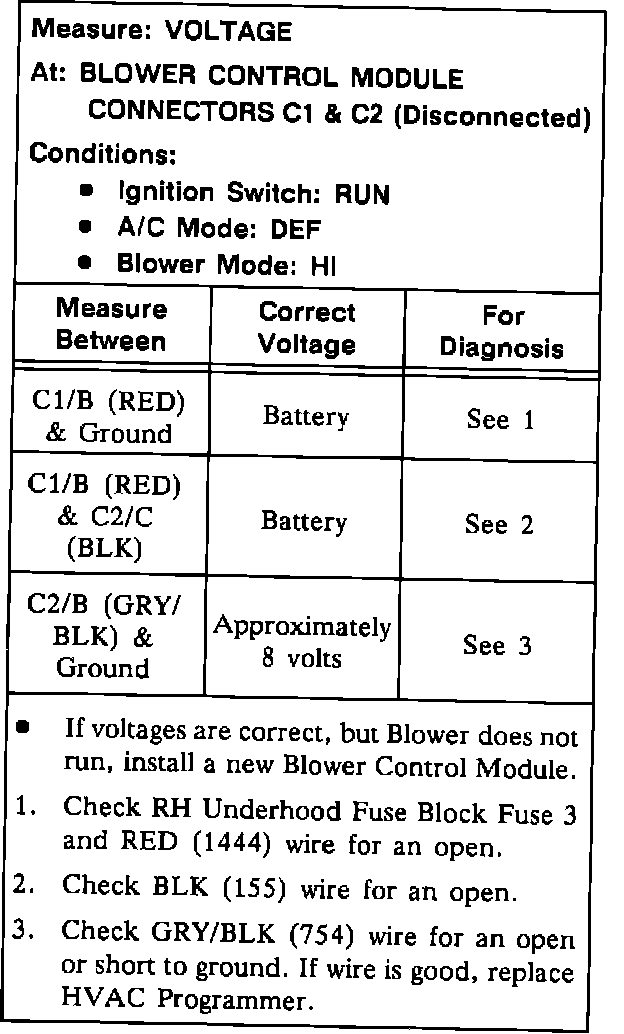

Test B: Blower Control Module Test

Test B: Blower Control Module Test:
