Power Window Control Module: Locations

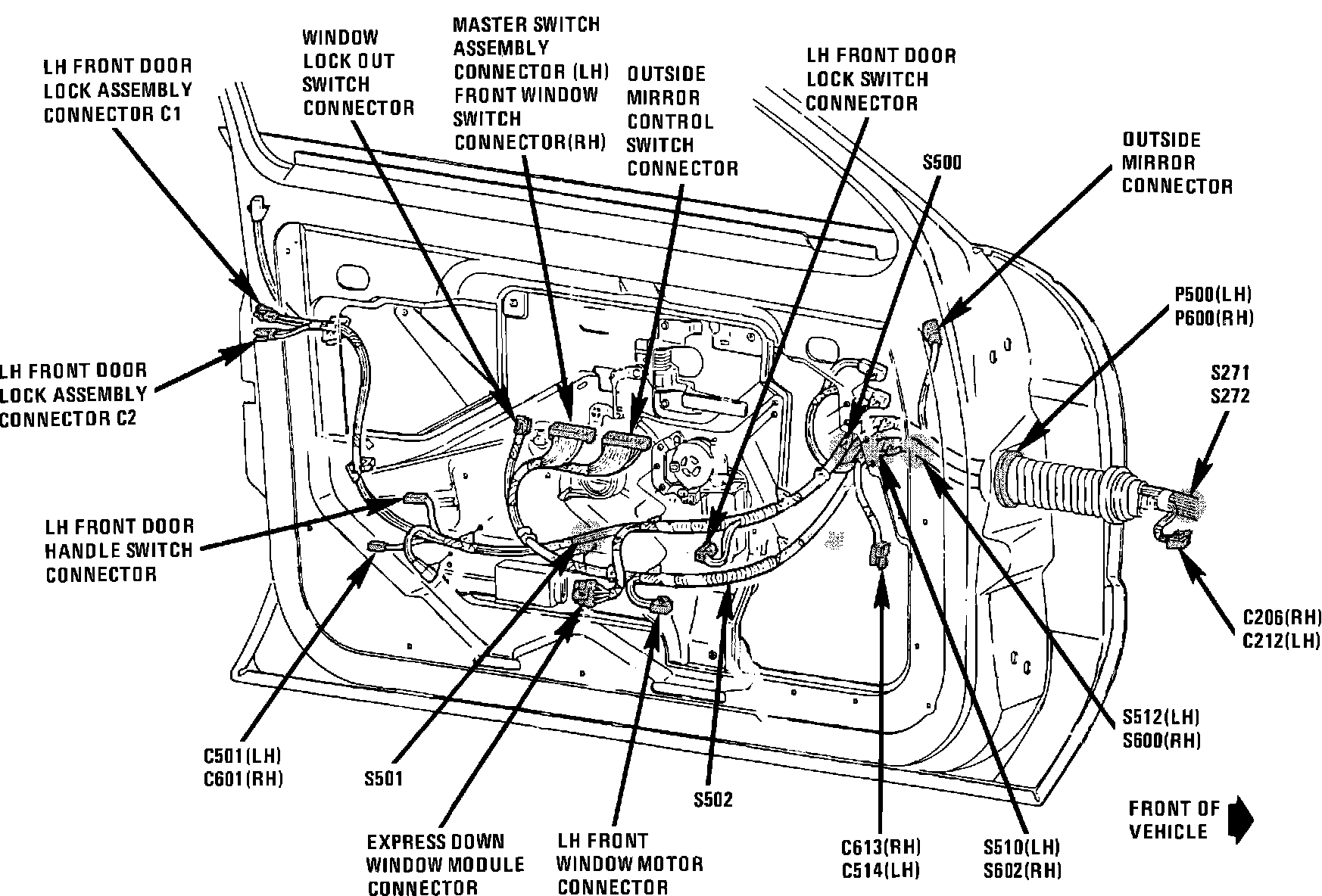

Component Location View. LH Front Door (RH Similar):





Center of LH front door
