Test C - Transmitter/Module Isolation Test

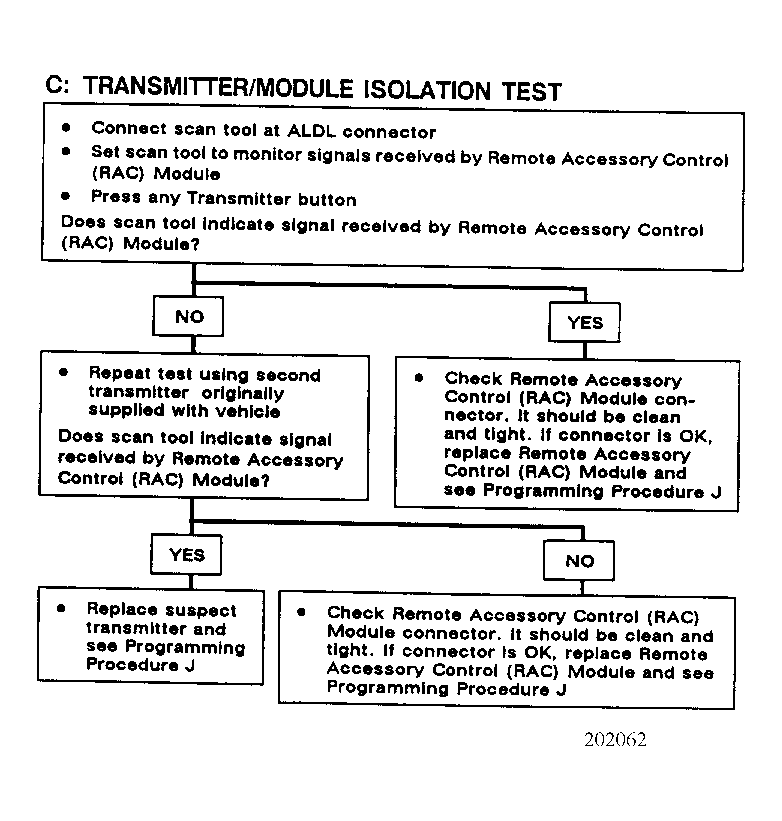

Fig 1: Test C - Transmitter/Module Isolation Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
