Heater and A/C Control Assembly

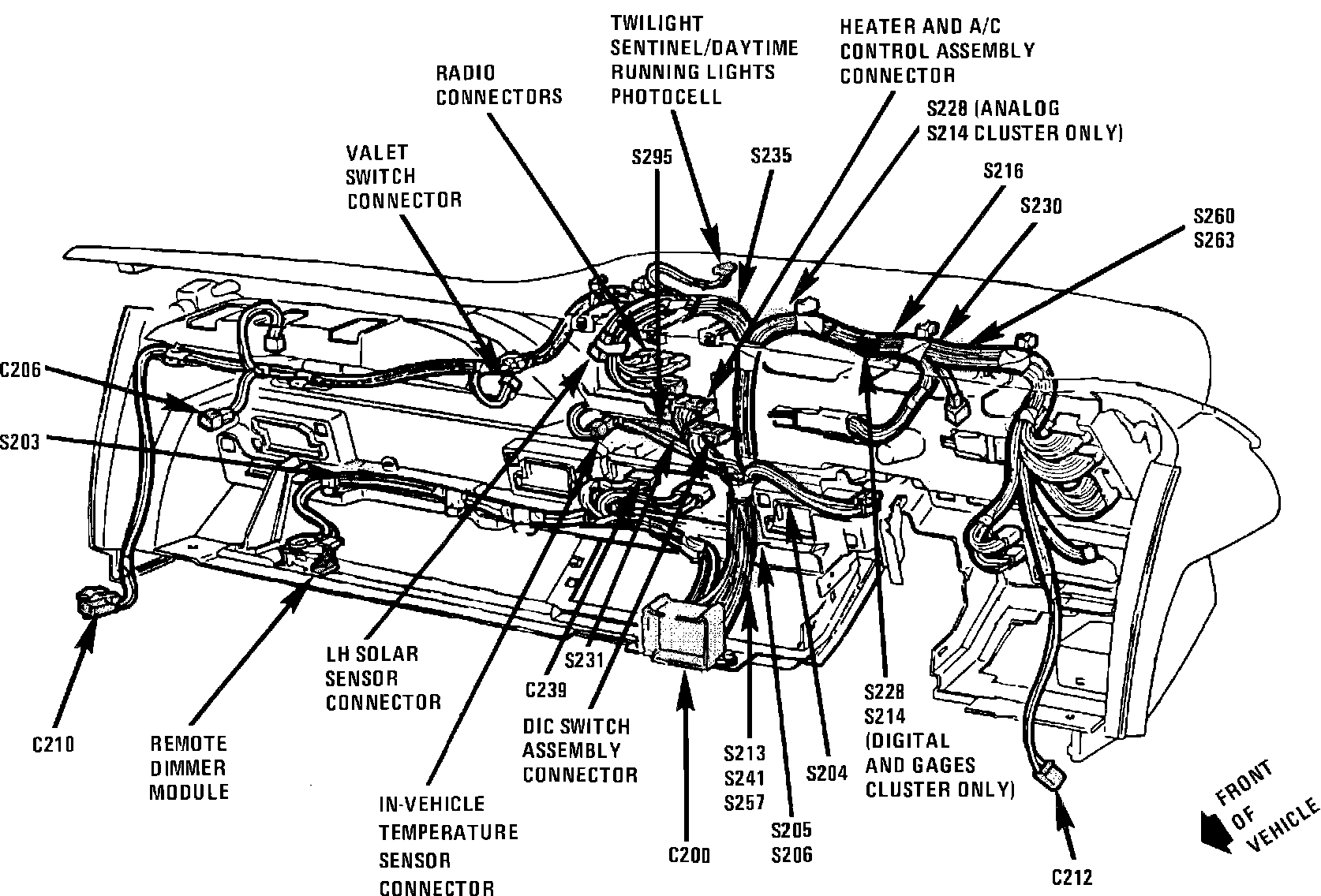

Component Location View. Behind I/P:
Center of I/P, RH side of Instrument Cluster
