Removal & Installation

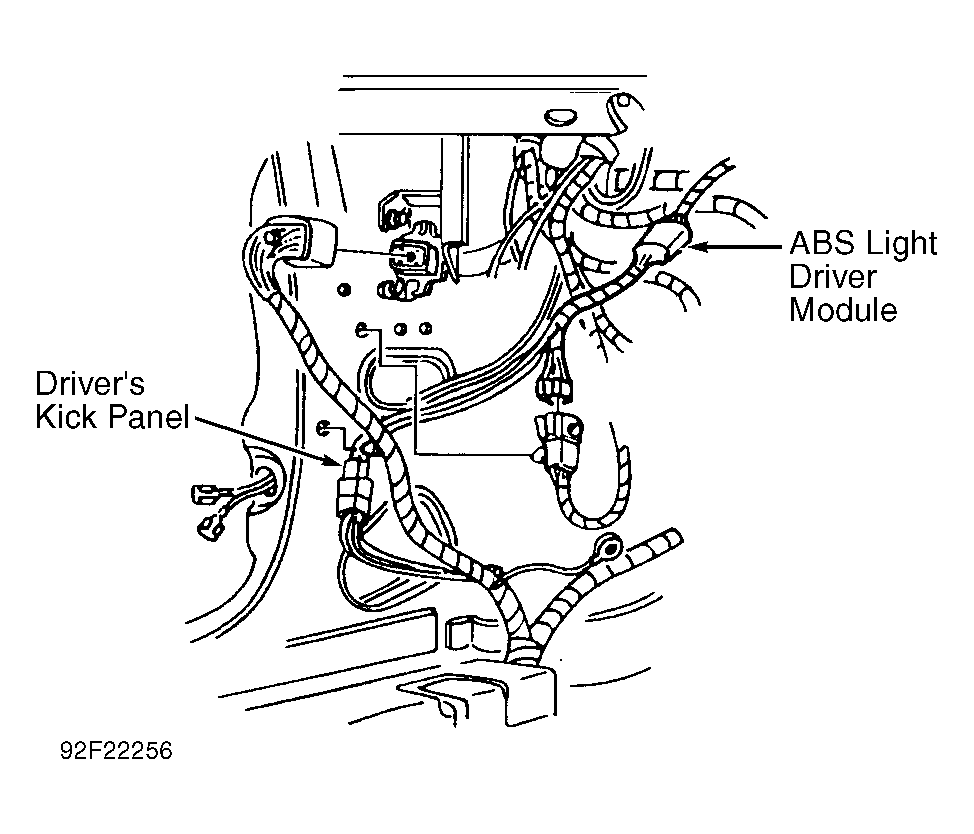

Ensure ignition is off. Remove lower sound insulator panel located under steering column. Remove ABS light driver module from instrument panel harness located near parking brake assembly. See Fig 1. To install, reverse removal procedure. Ensure ABS light driver module is taped in same location onto instrument panel harness.
