Electronic Spark Control (ESC) Module

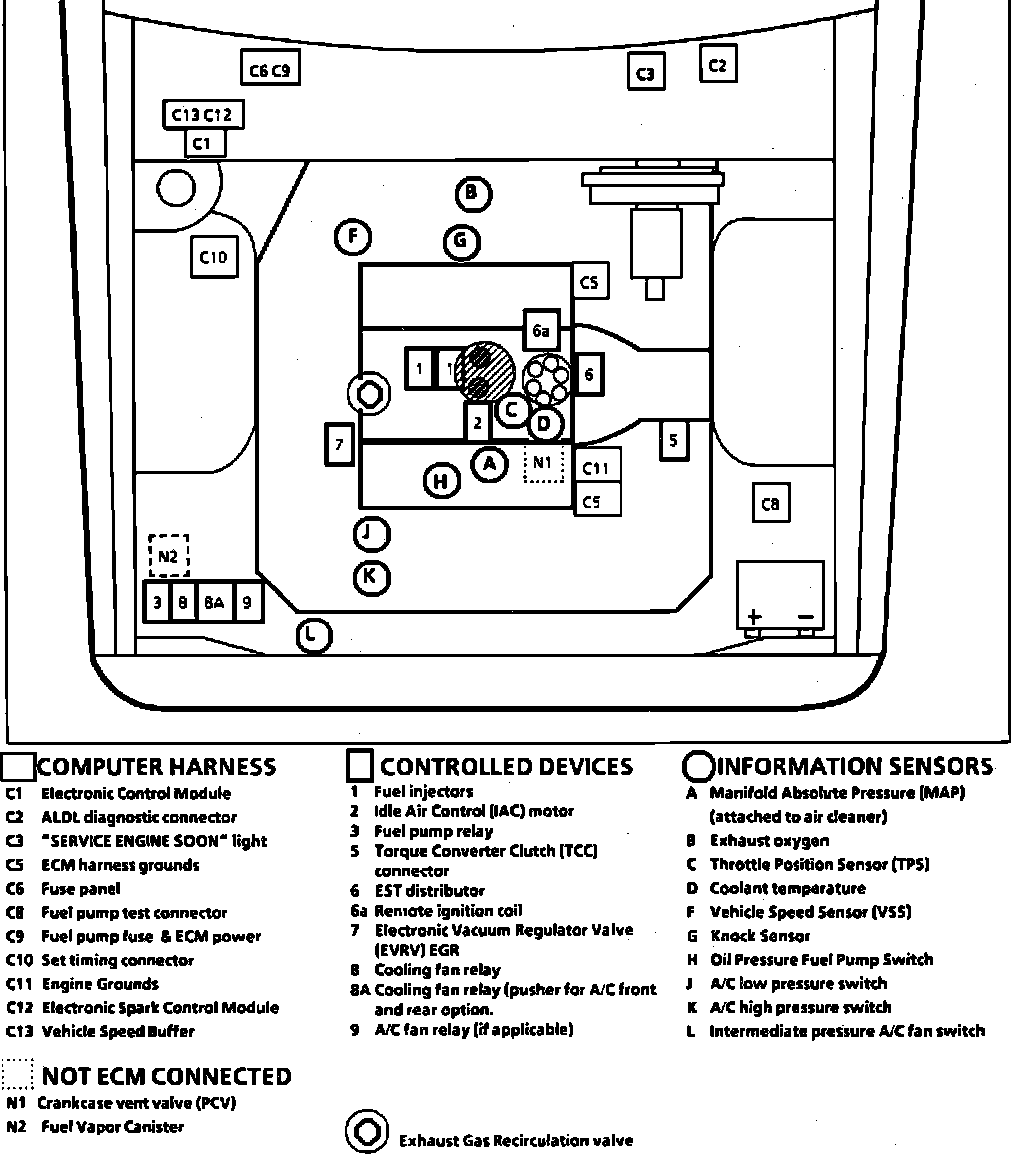

Engine Compartment Components.:




Behind I/P Compartment:





Behind I/P Compartment, Above Convenience Center
