Connector Identification

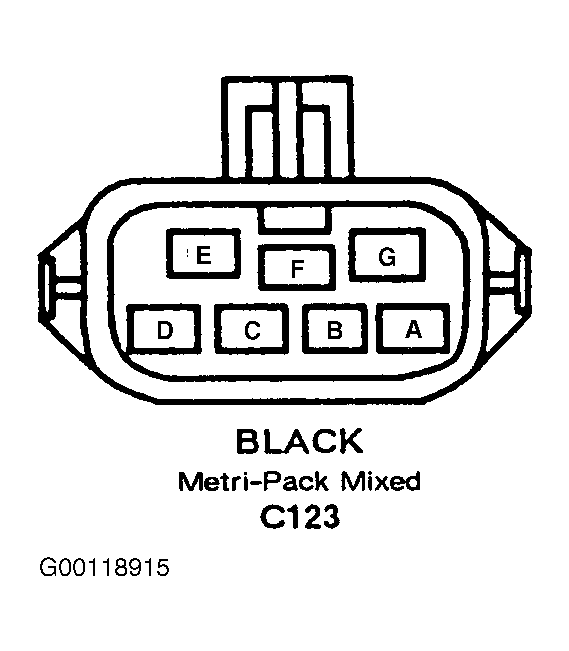

Fig 1: Identifying C123 Connector

Courtesy of GENERAL MOTORS CORP.

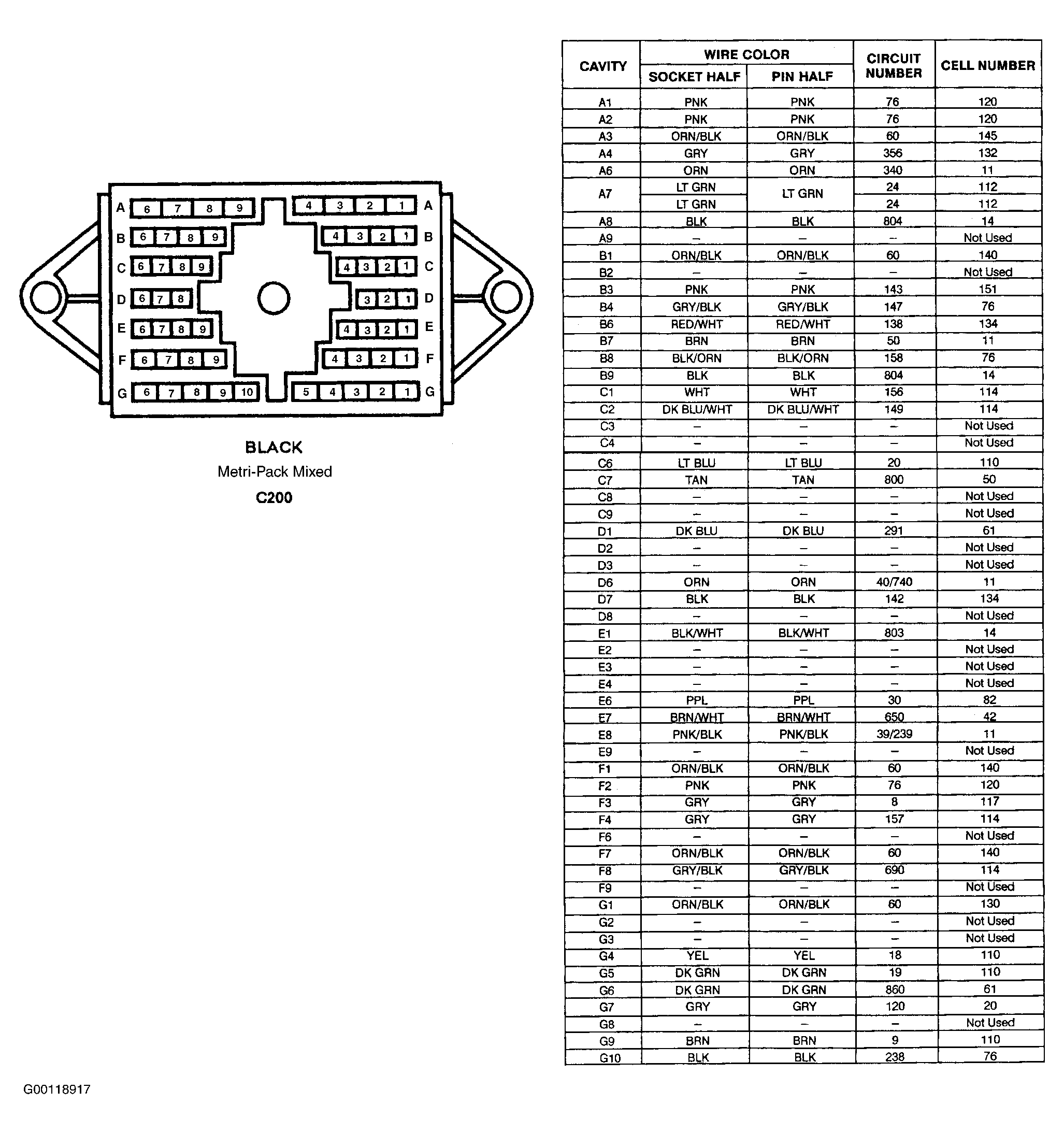

Fig 2: Identifying C200 Connector

Courtesy of GENERAL MOTORS CORP.

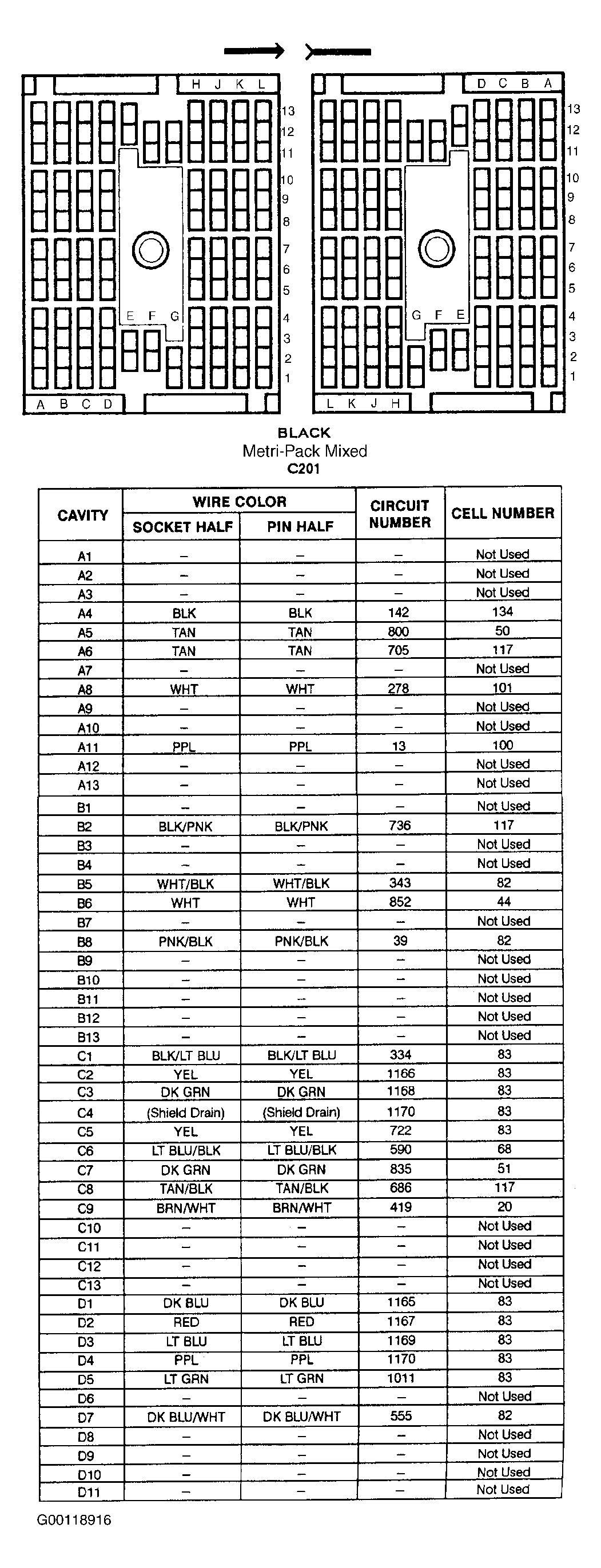

Fig 3: Identifying C201 Connector (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

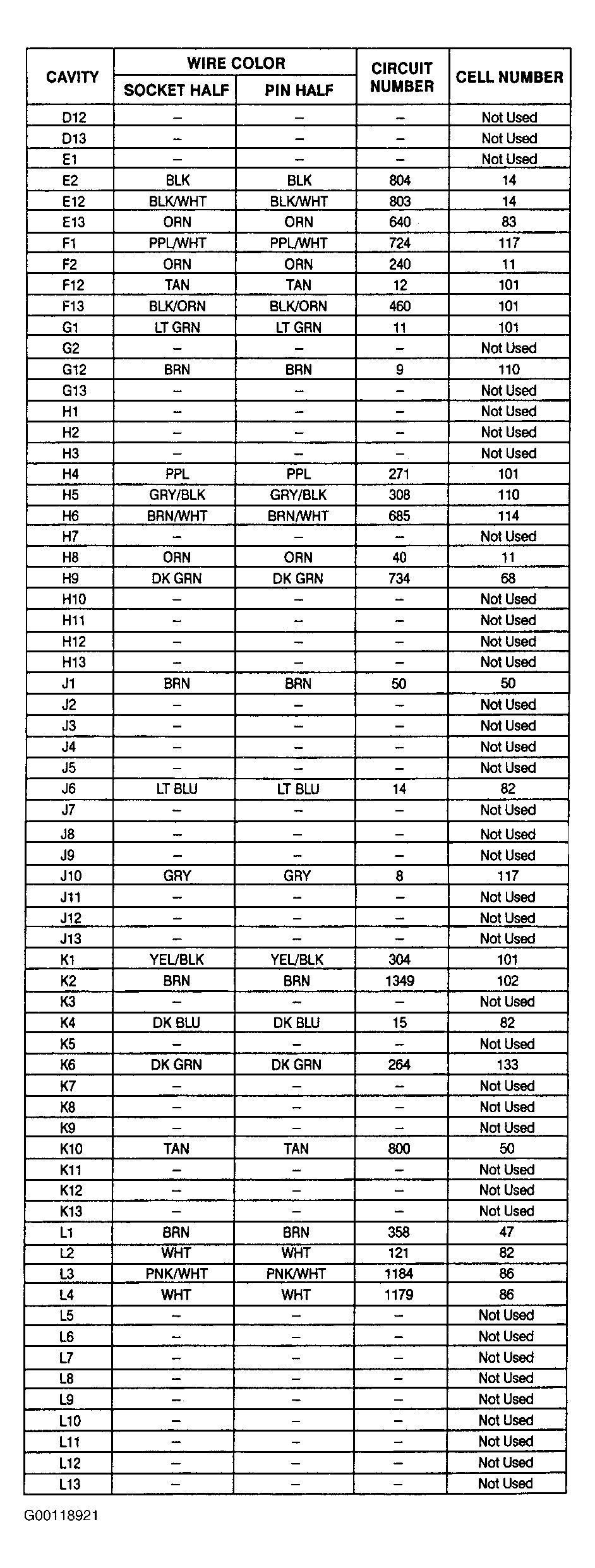

Fig 4: Identifying C201 Connector (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

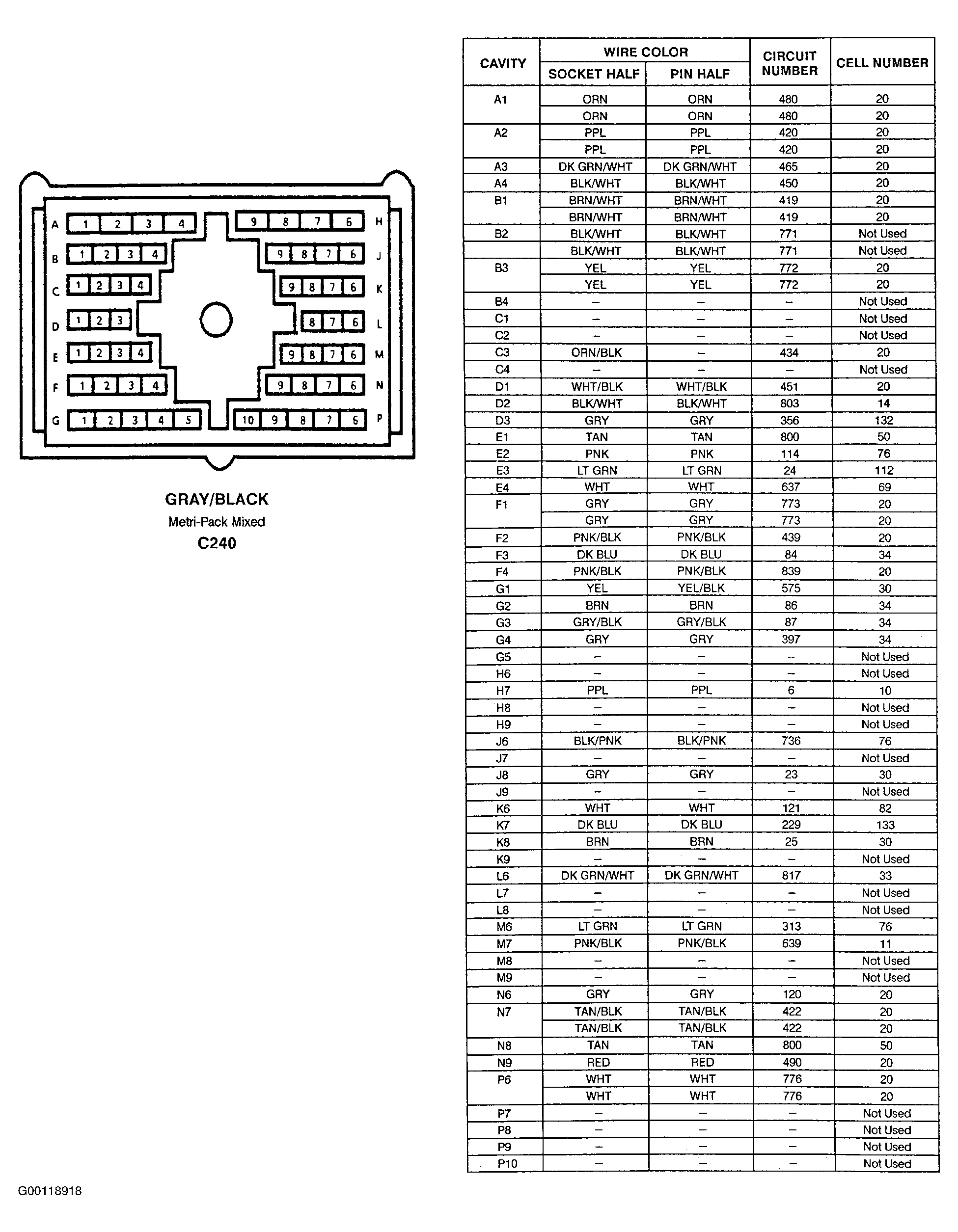

Fig 5: Identifying C240 Connector

Courtesy of GENERAL MOTORS CORP.

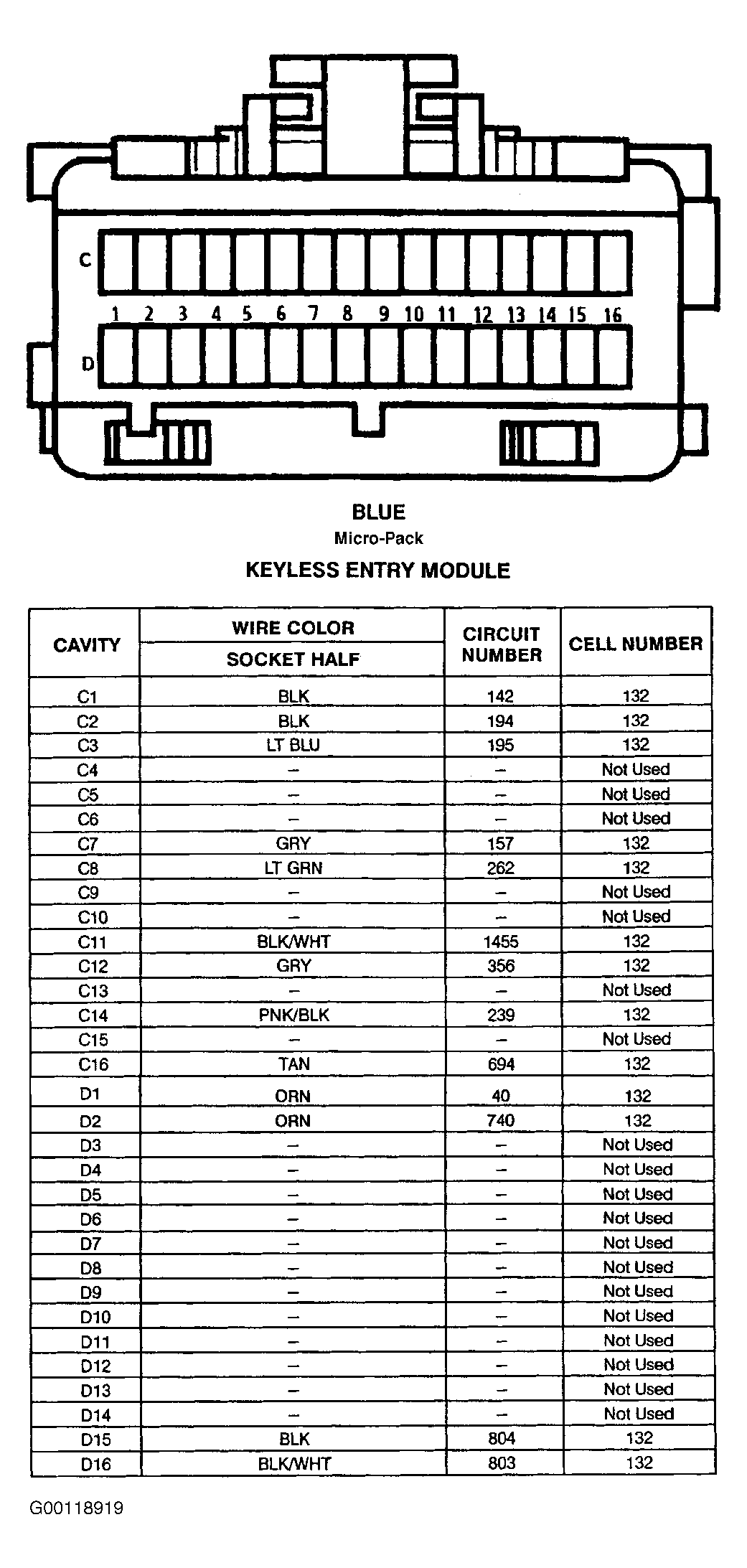

Fig 6: Identifying Keyless Entry Module Connector

Courtesy of GENERAL MOTORS CORP.

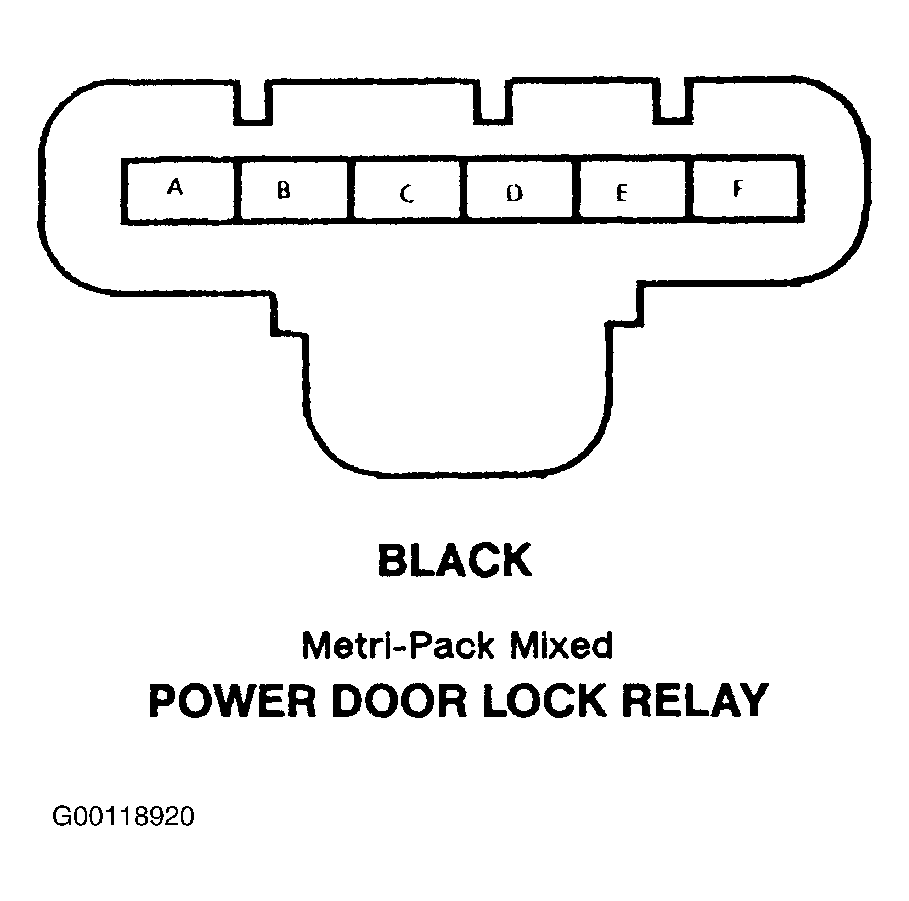

Fig 7: Identifying Power Door Lock Relay Connector

Courtesy of GENERAL MOTORS CORP.
