Component Locations

COMPONENT LOCATIONS

Component Location
Express Down Window Module Rear Portion Of Left Front Door. See Fig 1
Fuse Block Right Side Of Instrument Panel, Left Of Instrument Panel Compartment. See Fig 2
Power Window Motors In Front Of Respective Doors. See Fig 1
C200 (56 Cavities) Behind Right Side Of Instrument Panel, Near Right Shroud. See Fig 3
C207 (1 Cavity) Behind Right Side Of Instrument Panel, Near Shroud. See Fig 4
G306 On Left Shroud, Above Park Brake. See Fig 5
P500 Front Of Left Door. See Fig 1
P600 Front Of Right Door. See Fig 6
S227 Dash Harness, Behind Right Side Of Instrument Panel, In Dash Channel. See Fig 7
S317 Body Main Harness, At Left Door Sill. See Fig 5
S526 Main Body Harness, In Left Door, In Power Window Switch Breakout. See Fig 1

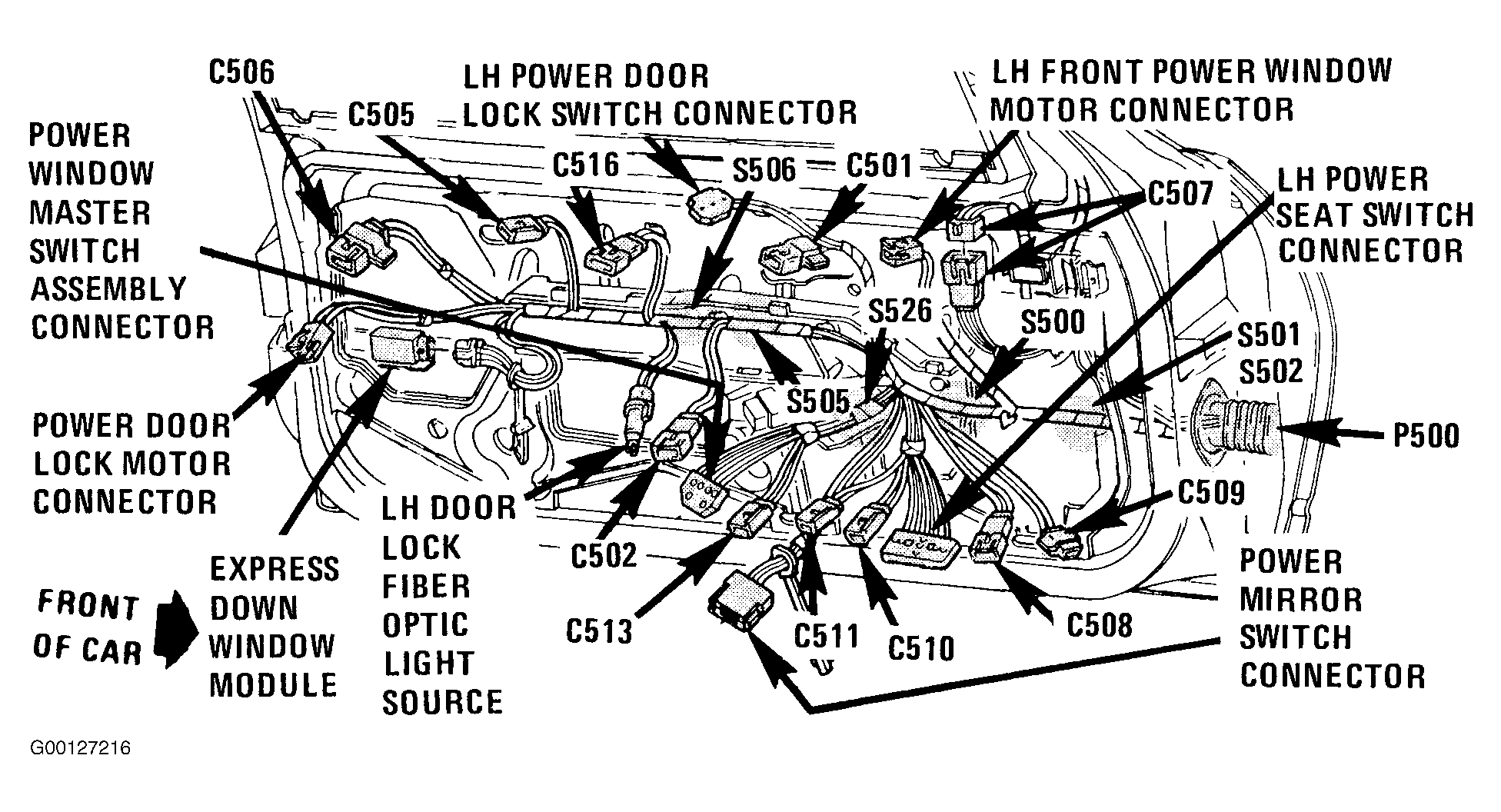

Fig 1: Locating Express Down Window Module, Power Window Motors, P500 & Splice S526
G00127216Courtesy of GENERAL MOTORS CORP.

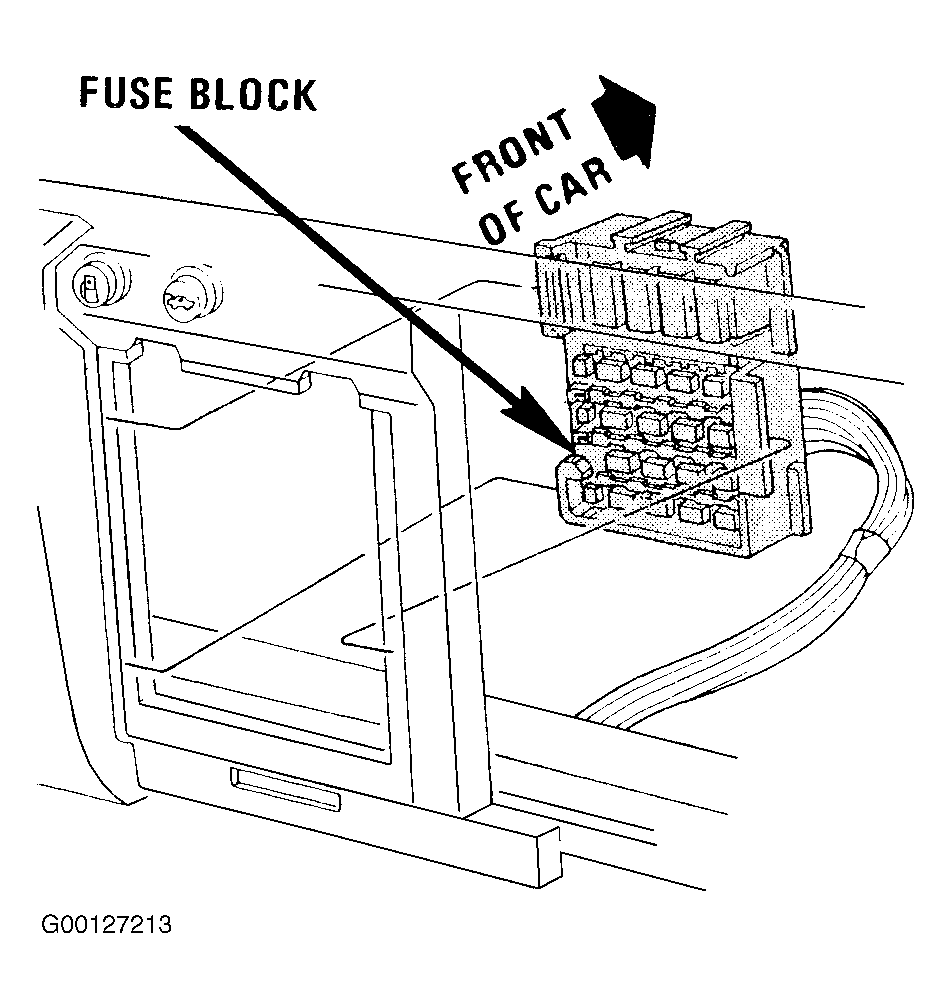

Fig 2: Locating Fuse Block
G00127213Courtesy of GENERAL MOTORS CORP.

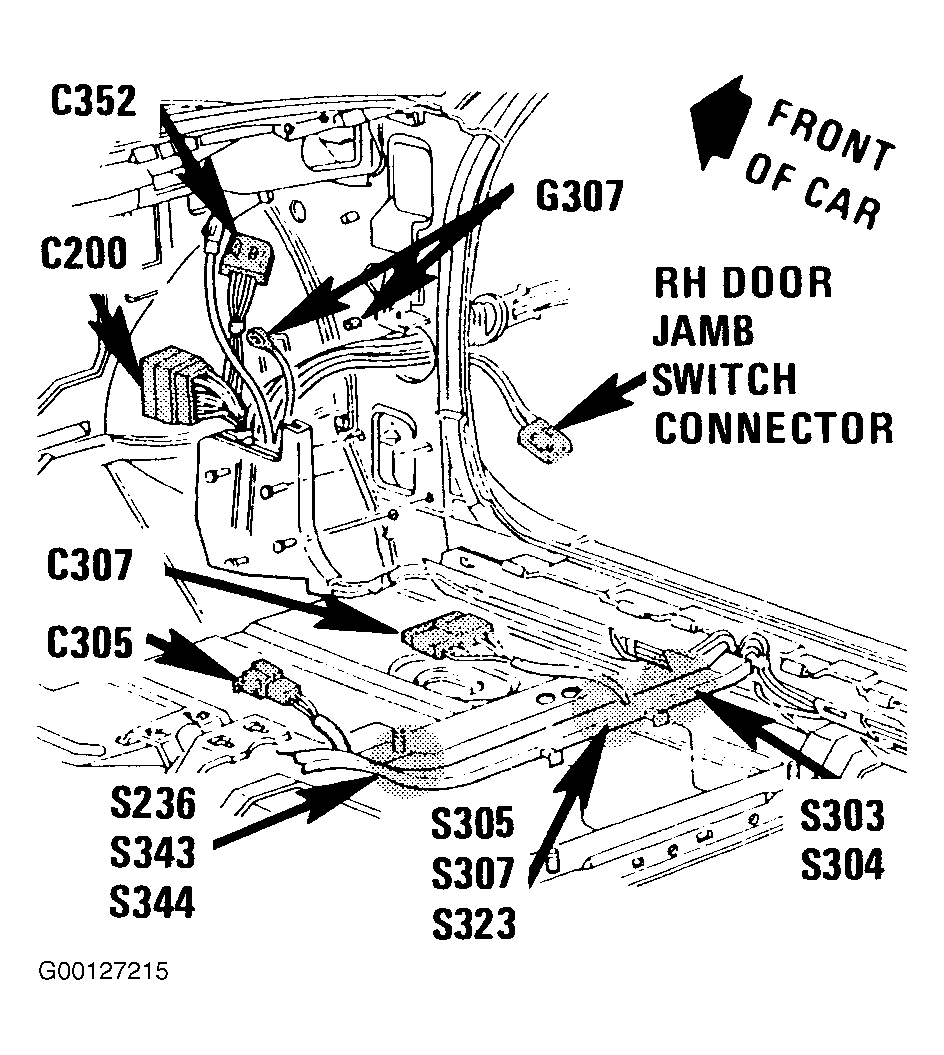

Fig 3: Locating Connector C200
G00127215Courtesy of GENERAL MOTORS CORP.
Fig 4: Locating Connector C207
G00127212Courtesy of GENERAL MOTORS CORP.

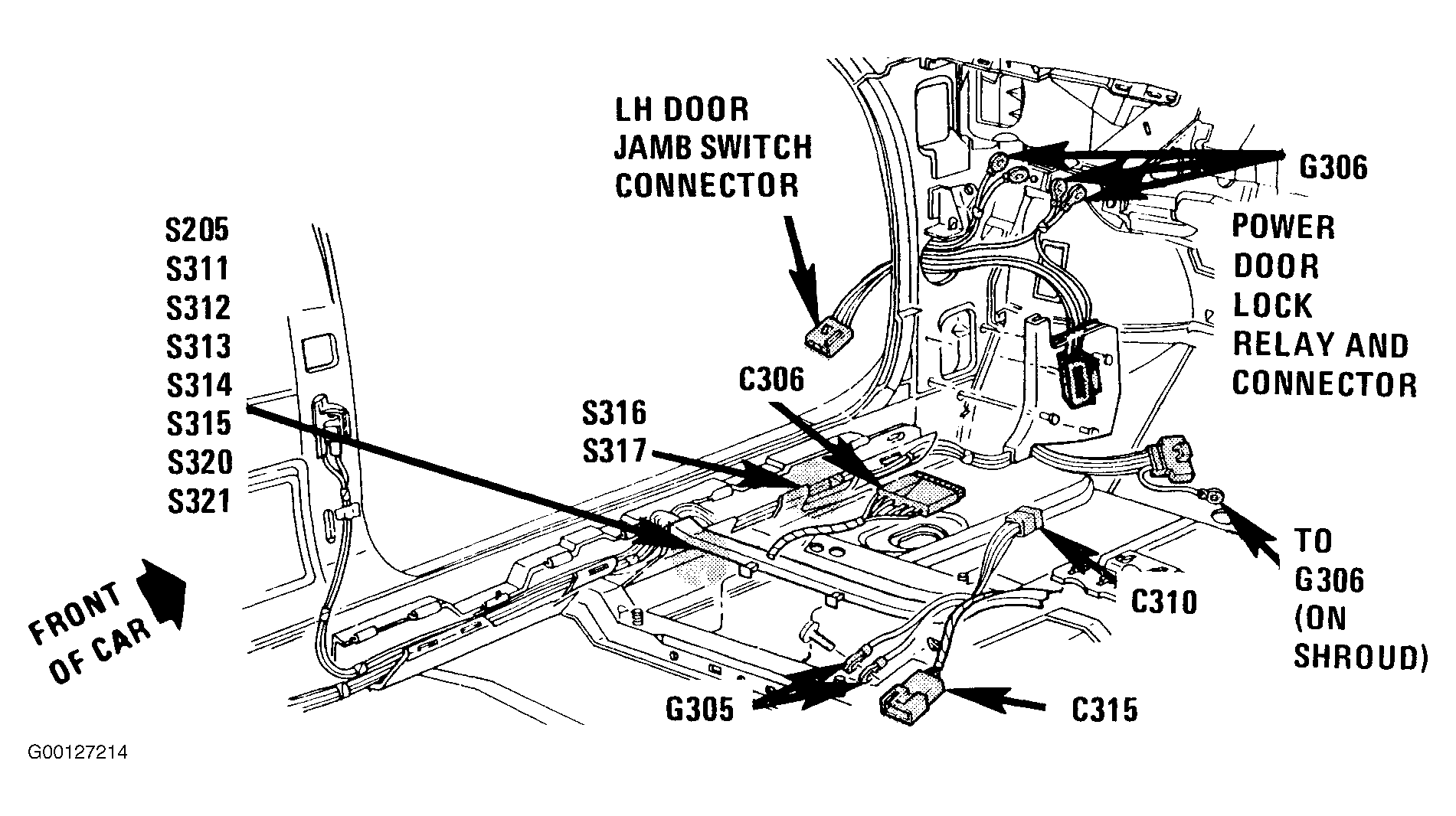

Fig 5: Locating Splice S317 & Ground G306
G00127214Courtesy of GENERAL MOTORS CORP.

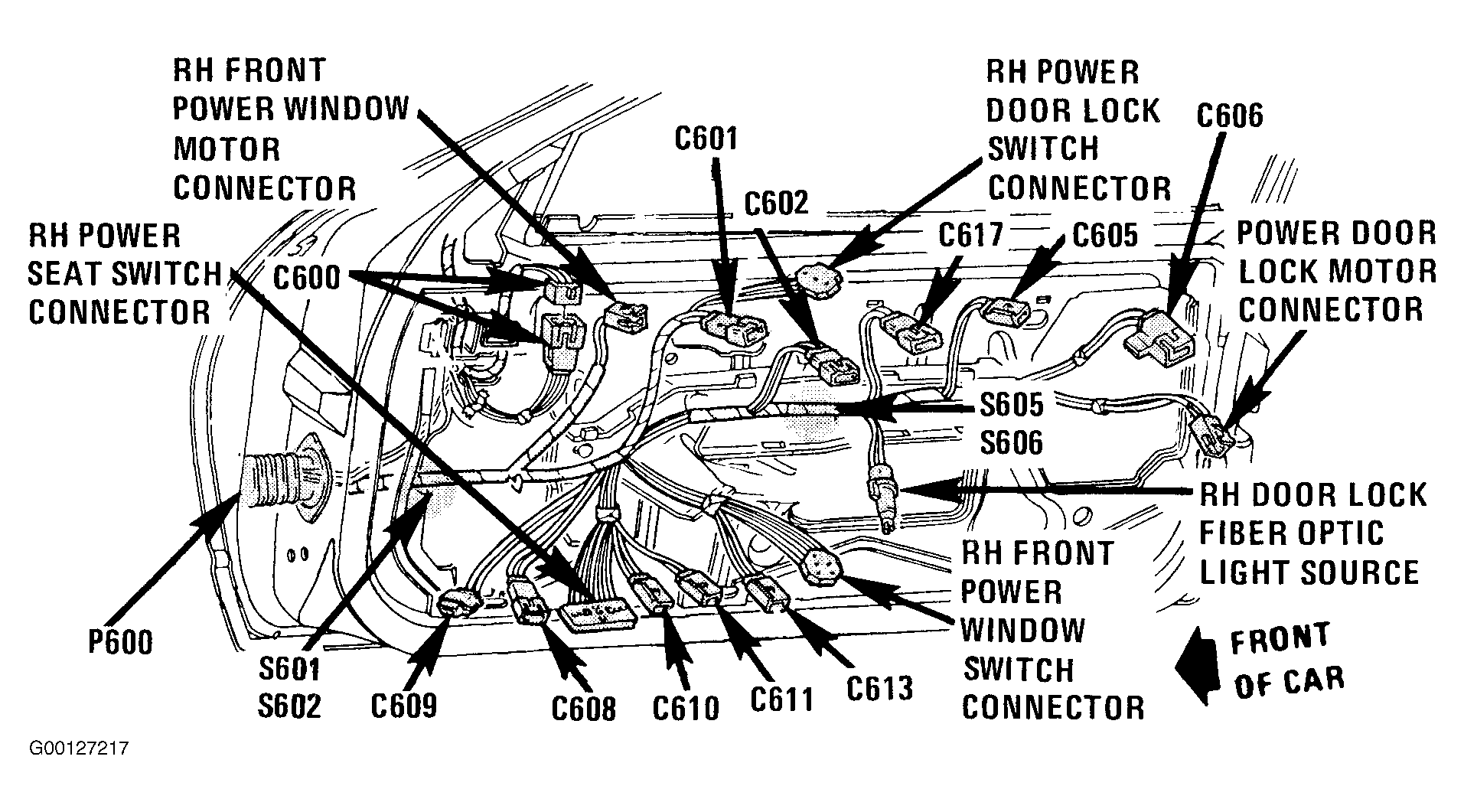

Fig 6: Locating Pass Through Grommet P600
G00127217Courtesy of GENERAL MOTORS CORP.

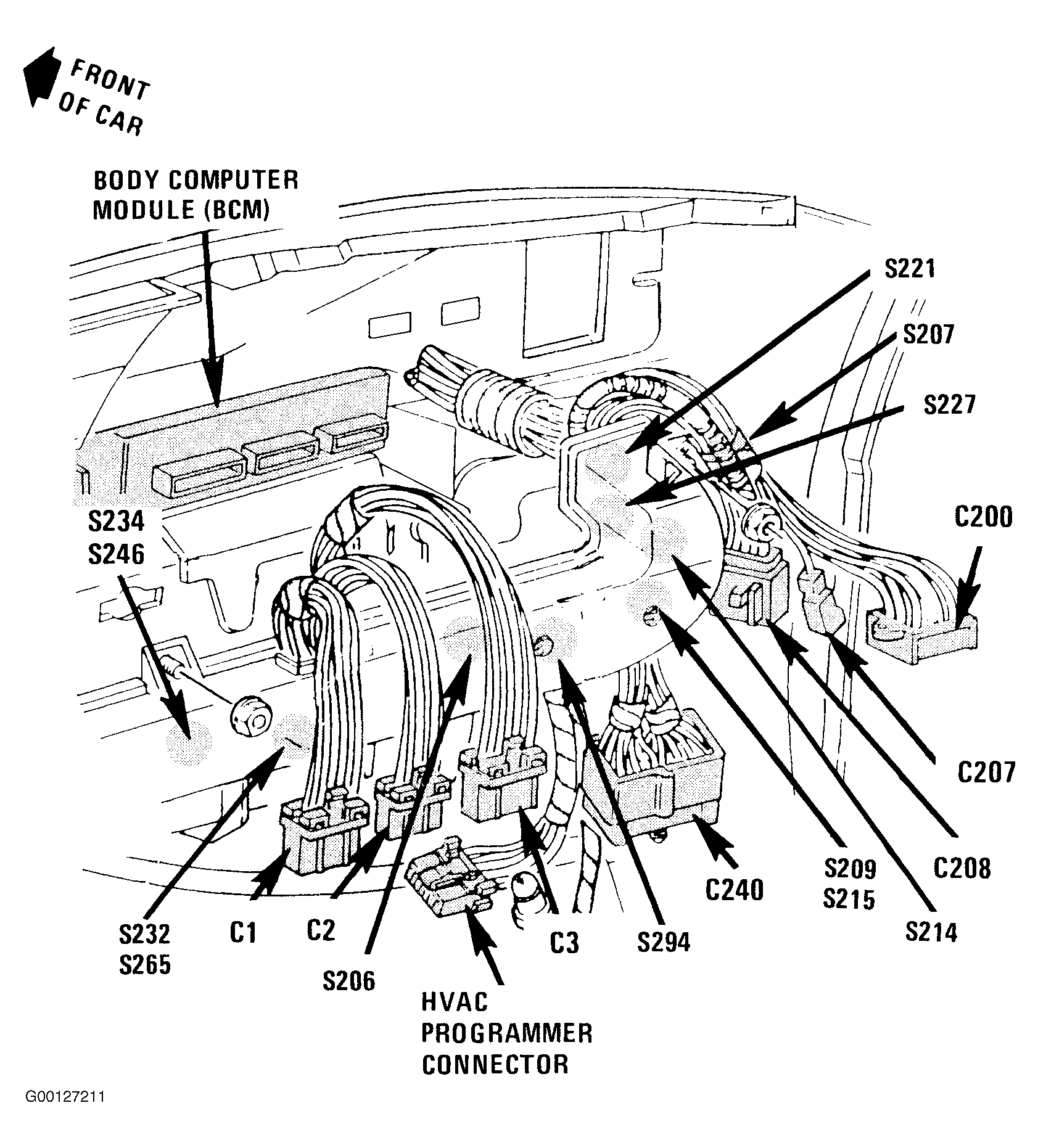

Fig 7: Locating Splice S227
G00127211Courtesy of GENERAL MOTORS CORP.
