Test F: Window Switch Power Test

For testing procedure, see Fig 1 .

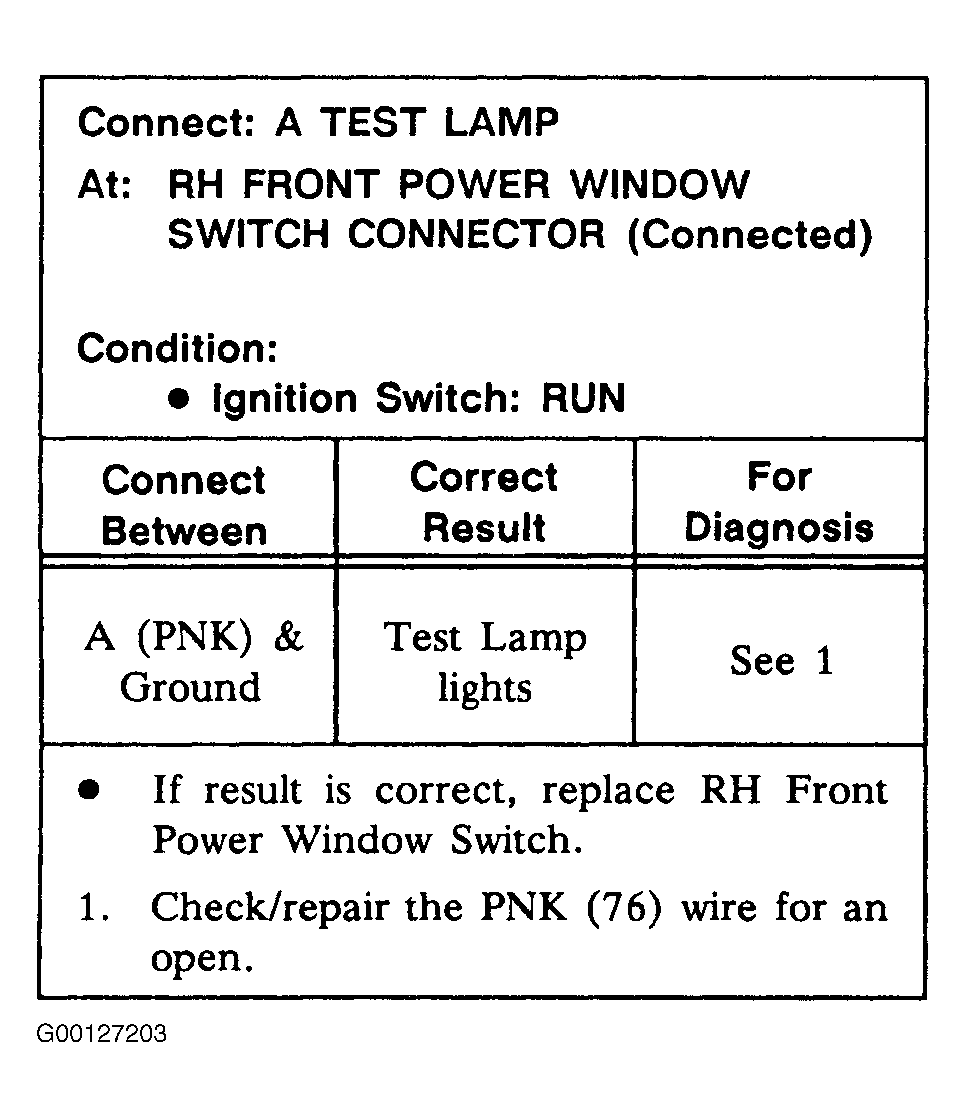

Fig 1: Test F: Window Switch Power Test
G00127203Courtesy of GENERAL MOTORS CORP.
