System Operation Check

Use the system check as a guide to normal operation. See Fig 1 .
If problem exists, repair by symptom. See SYMPTOM INDEX table under SYSTEM TESTS.

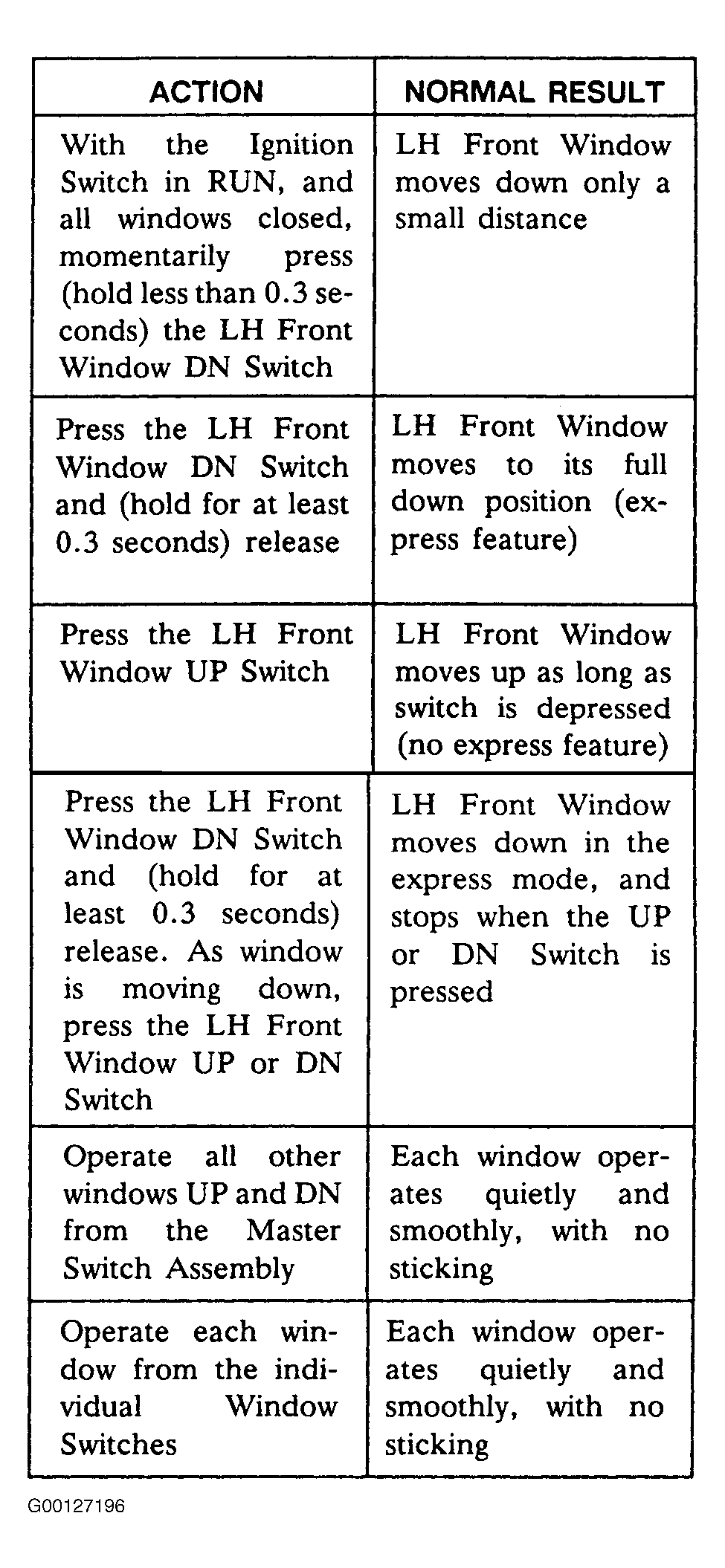

Fig 1: System Operation Check

Courtesy of GENERAL MOTORS CORP.
