Note On INTERMITTENTS

If an intermittent Code B332 is stored, manipulate related wiring at compass module and up to splice. An ELECTRICAL PROBLEM message indicates a loss of data and may help locate fault.

Fig 1: Code B332, Schematic, Loss of Compass Data

Courtesy of GENERAL MOTORS CORP.

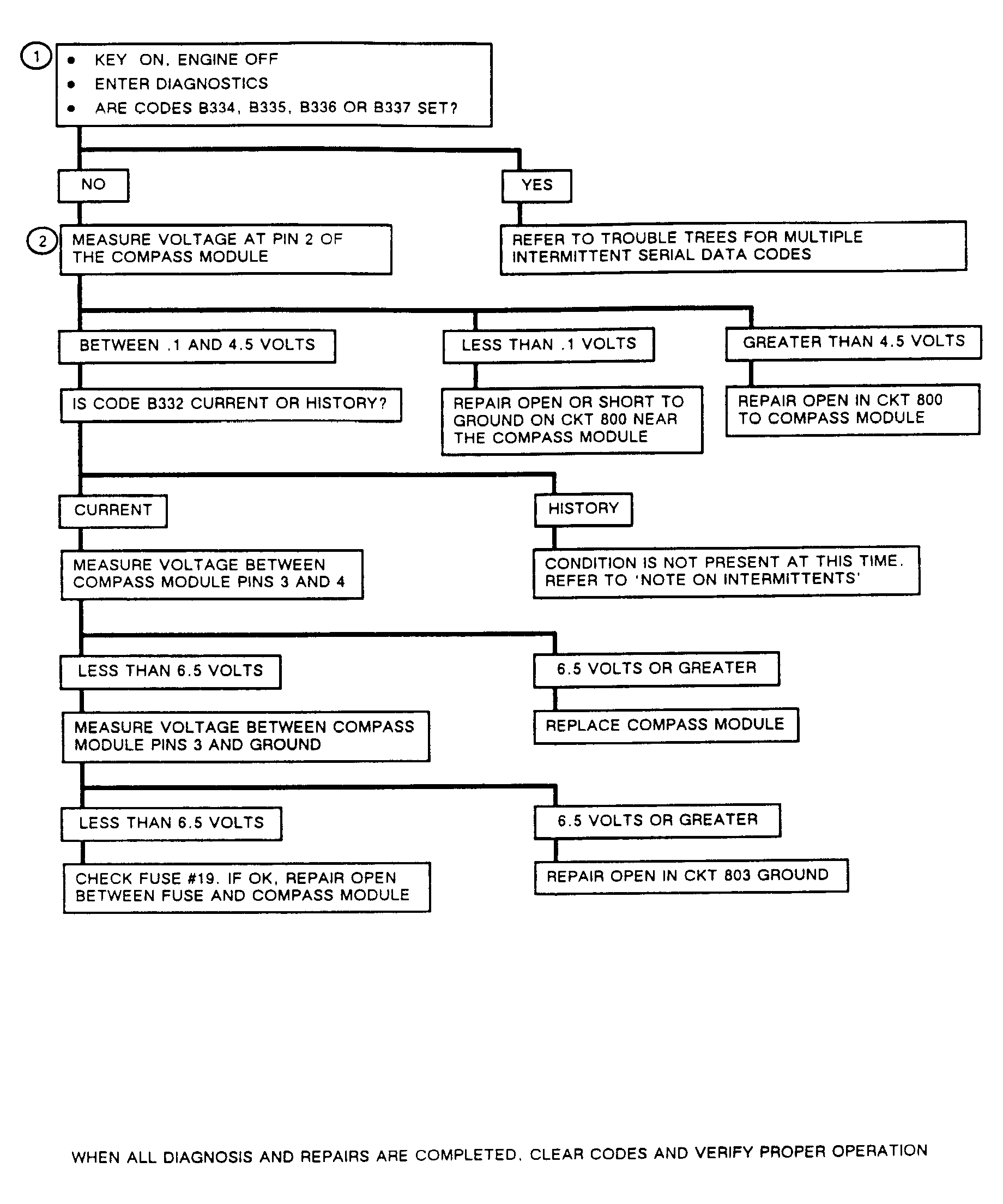

Fig 2: Code B332, Flow Chart, Loss of Compass Data

Courtesy of GENERAL MOTORS CORP.
