Note On INTERMITTENTS

If an intermittent Code B333 is being stored, manipulate related wiring at DERM. An ELECTRICAL PROBLEM message indicates a loss of data and may help locate fault.

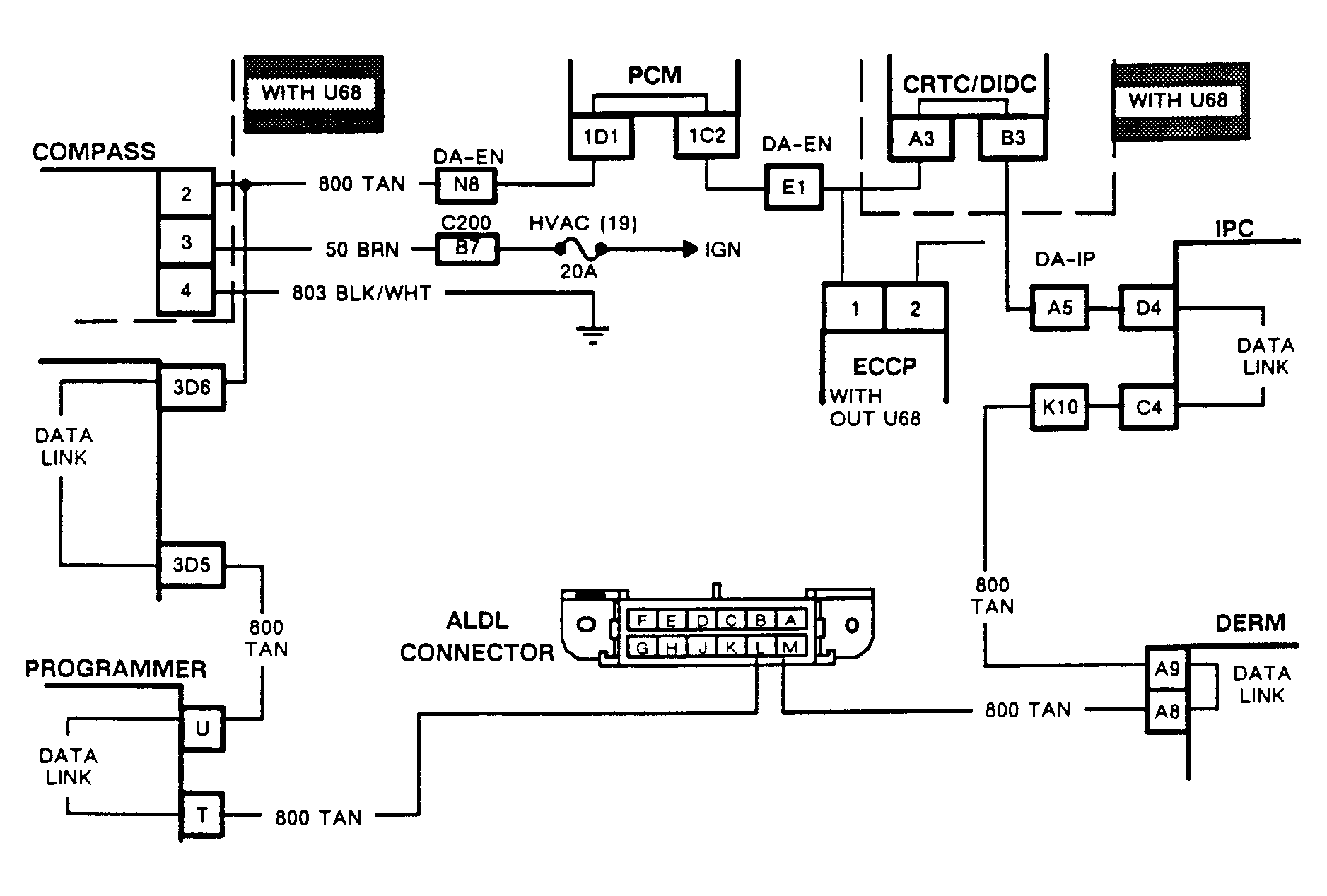

Fig 1: Code B333, Schematic, Loss of SIR Data

Courtesy of GENERAL MOTORS CORP.

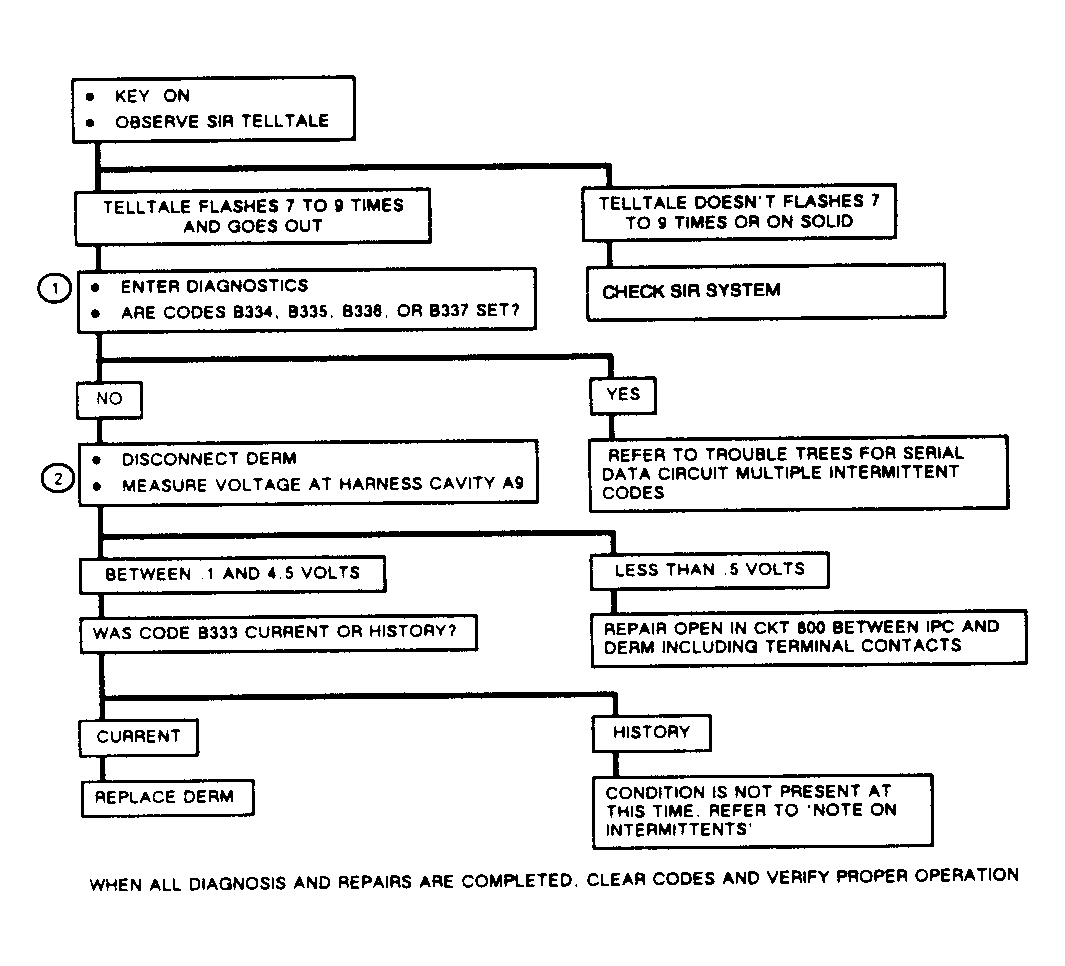

Fig 2: Code B333, Flow Chart, Loss of SIR Data

Courtesy of GENERAL MOTORS CORP.
