Diagnostic Aids

Outside interference such as CB antenna lead near PCM wiring harness may cause false servo position sensor signal and set Code 68.

Fig 1: Code 68, Schematic, Cruise System Problem, Using Tech 1

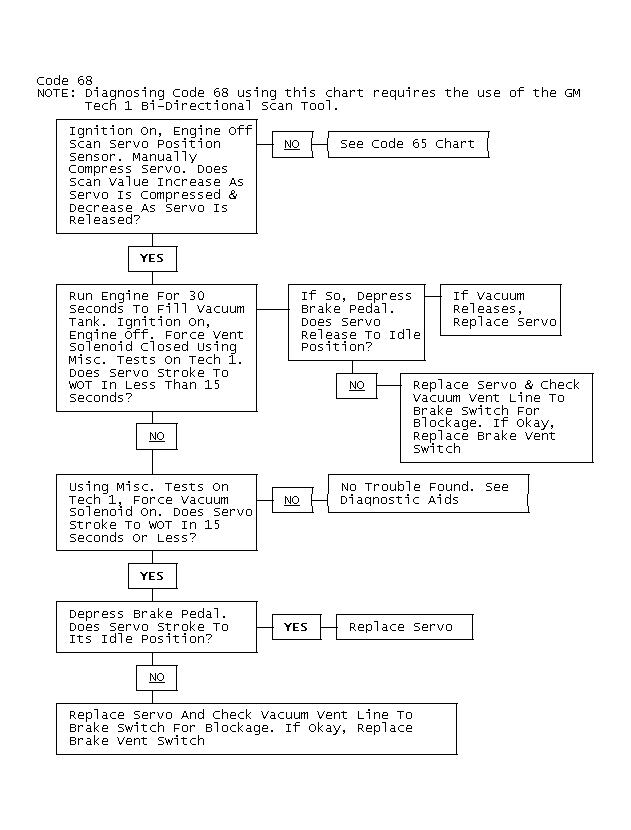

Fig 2: Code 68, Flow Chart, Cruise System Problem, Using Tech 1

Fig 3: Code 68
