Ignition Module - OPTI-Spark (5.7L VIN P): Removal

1. Remove spark plug wires from distributor cap (noting plug wire routing for installation reference).
2. Loosen cap bolts/screws and remove distributor cap.
3. Remove 2 bolts/screws and lift out ignition control module.
4. Unplug ignition pickup coil leads (noting wire colors for installation reference. Leads cannot be interchanged)
5. Remove module.
   IMPORTANT: DO NOT remove greast from ignition control module or distributor base if coil is to be reused. If new module is to be installed, spread supplied special grease on metal face of igniton control module and on distributor base where ignition control module seats. Grease is used for ignition control module cooling.

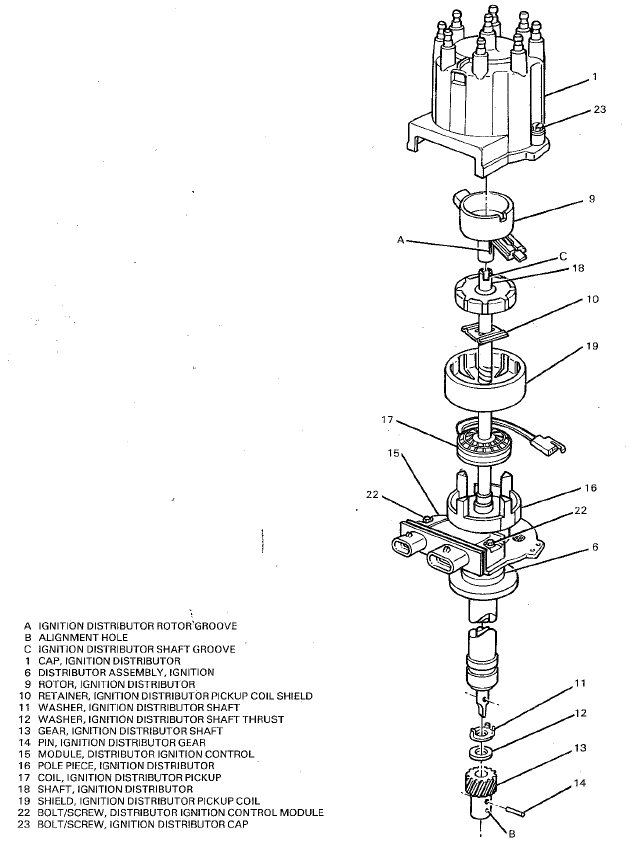

Fig 1: Exploded View Of Distributor Assembly
