Component Locations

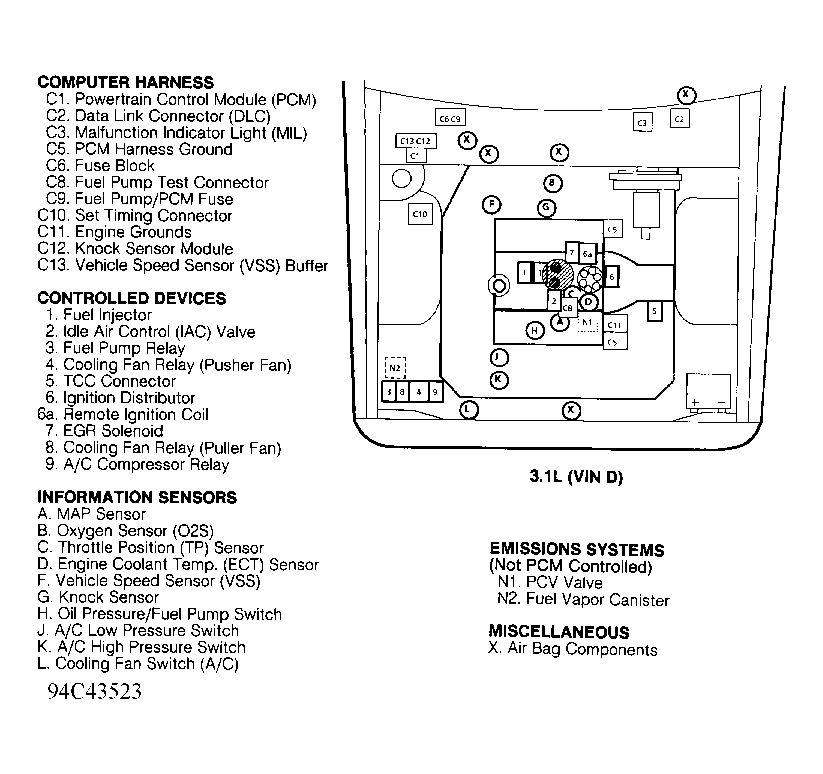

Fig 1: Component Location (3.1L VIN D)
G94C43523Courtesy of GENERAL MOTORS CORP.

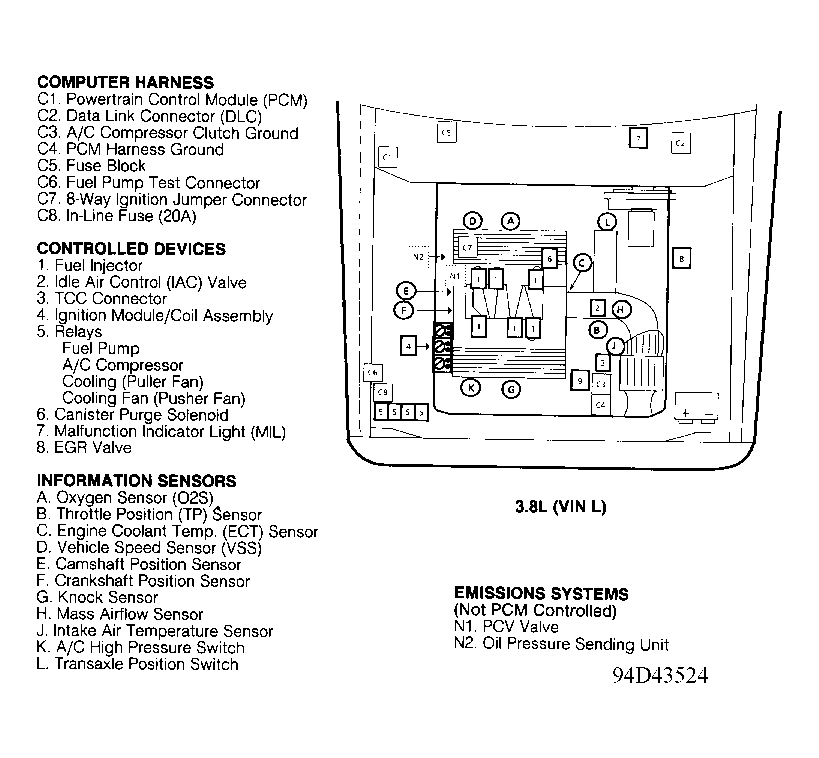

Fig 2: Component Location (3.8L VIN L)
G94D43524Courtesy of GENERAL MOTORS CORP.
