Diagnostic Aids

If ignition key is turned to CRANK position with engine running, Codes 133, 134, 135 and 136 may set.

Inspect harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, poor terminal-to-wire connections or damaged harness.

Perform intermittent check by monitoring circuit and code status while wiggling related wiring and connectors. If failure is induced, monitored circuit status will change rapidly and/or related code will set.

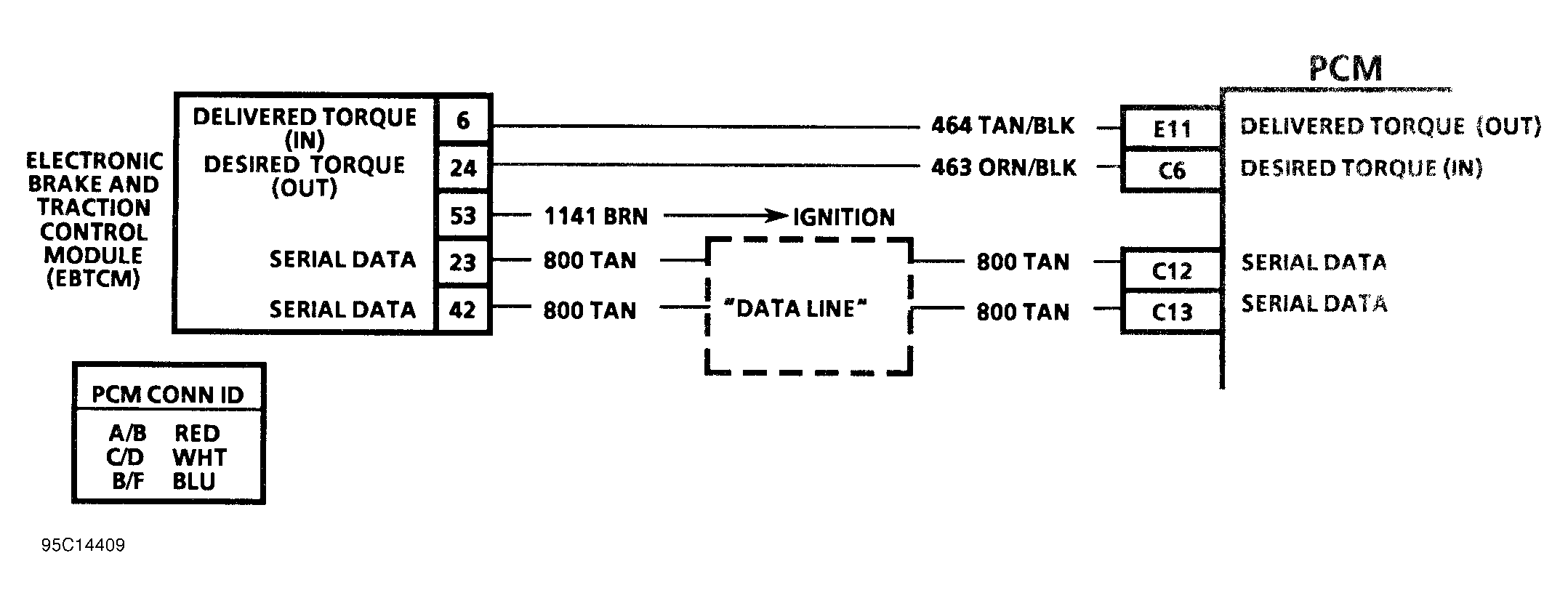

Fig 1: Code 133 Schematic (4.0L) Loss Of ABS/TCS Data

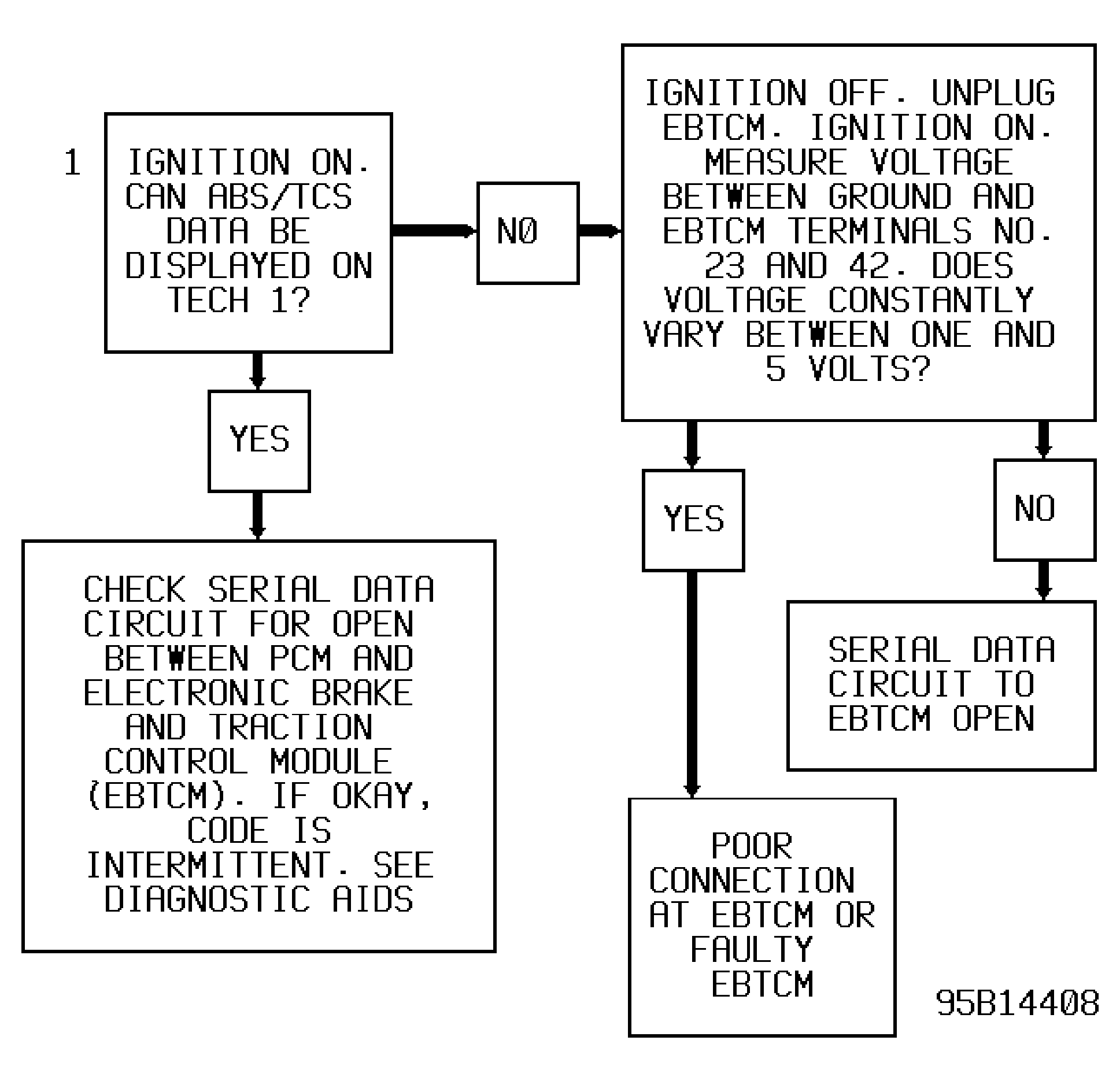

Fig 2: Code 133 Diagnostic Flow Chart (4.0L) Loss Of ABS/TCS Data
