Diagnostic Aids

Code may be the result of degraded transaxle fluid.

Fig 1: Code 57 Schematic (4.0L) Transmission Temperature Sensor High Temperature

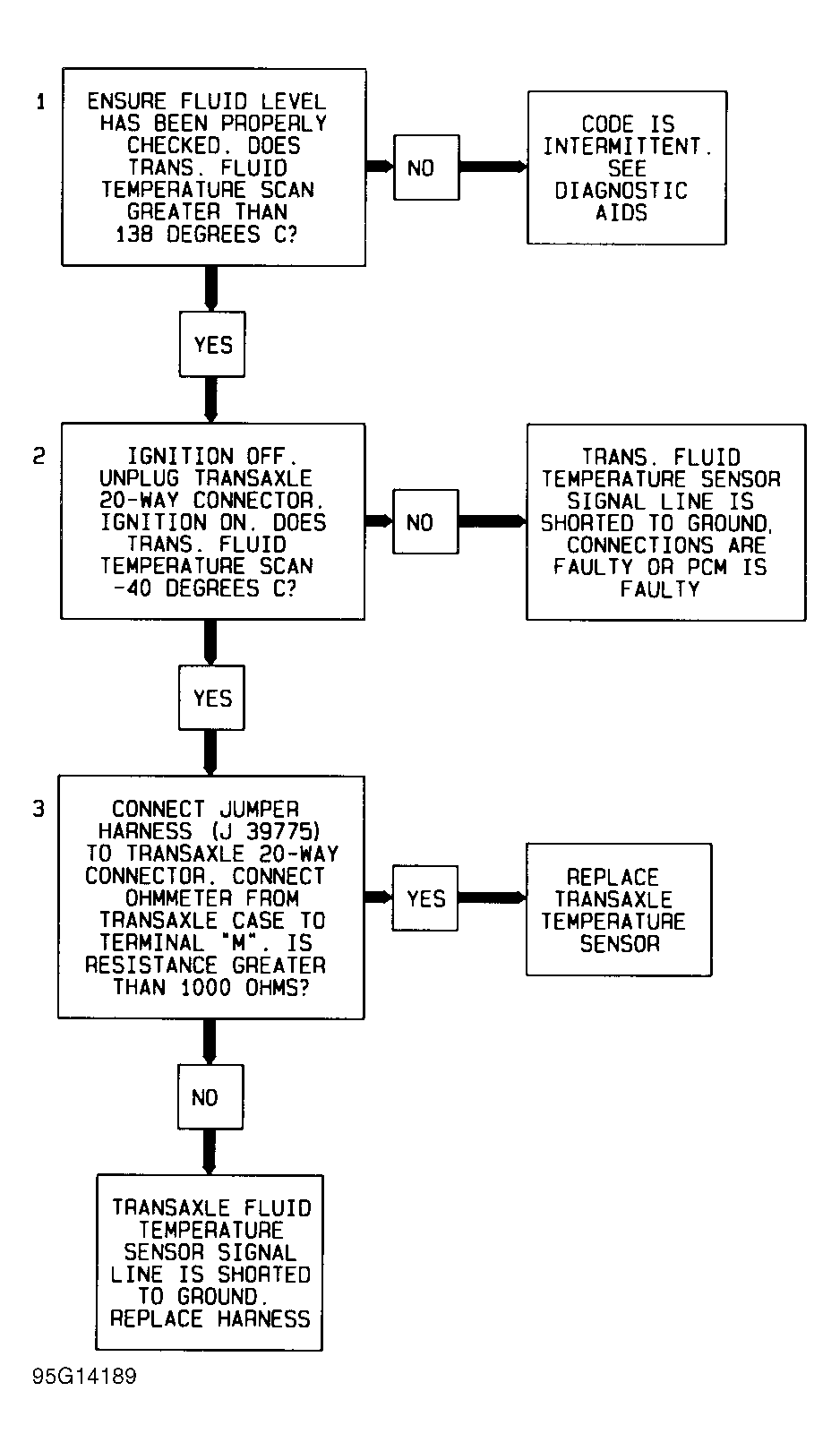

Fig 2: Code 57 Diagnostic Flow Chart (4.0L) Transmission Temperature Sensor High Temperature
