Test Description

NOTE: Test numbers refer to numbers on diagnostic chart.
  1. Ensures PCM is capable of controlling solenoid.
  2. Checks TCC PWM driver circuit for short to ground.

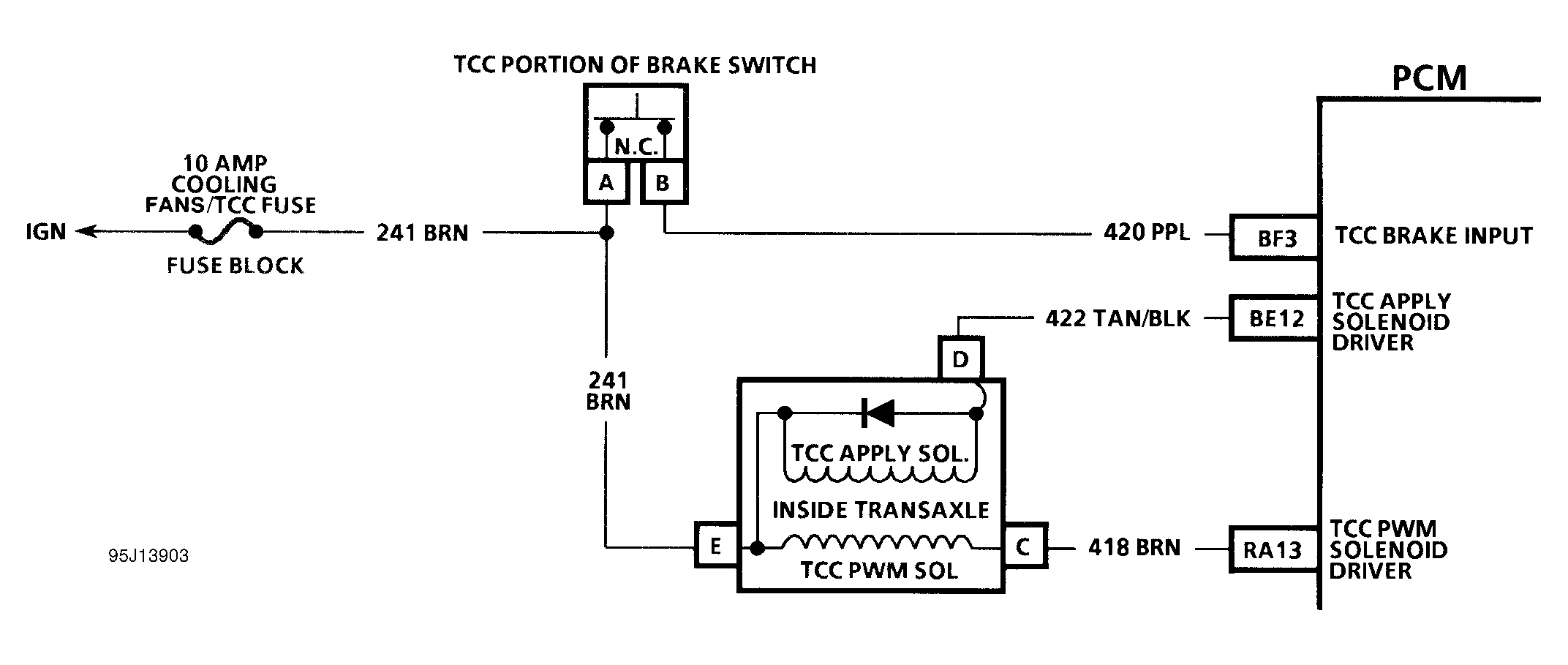

Fig 1: Code 1860 Schematic (3.8L) TCC PWM Solenoid
G95J13903

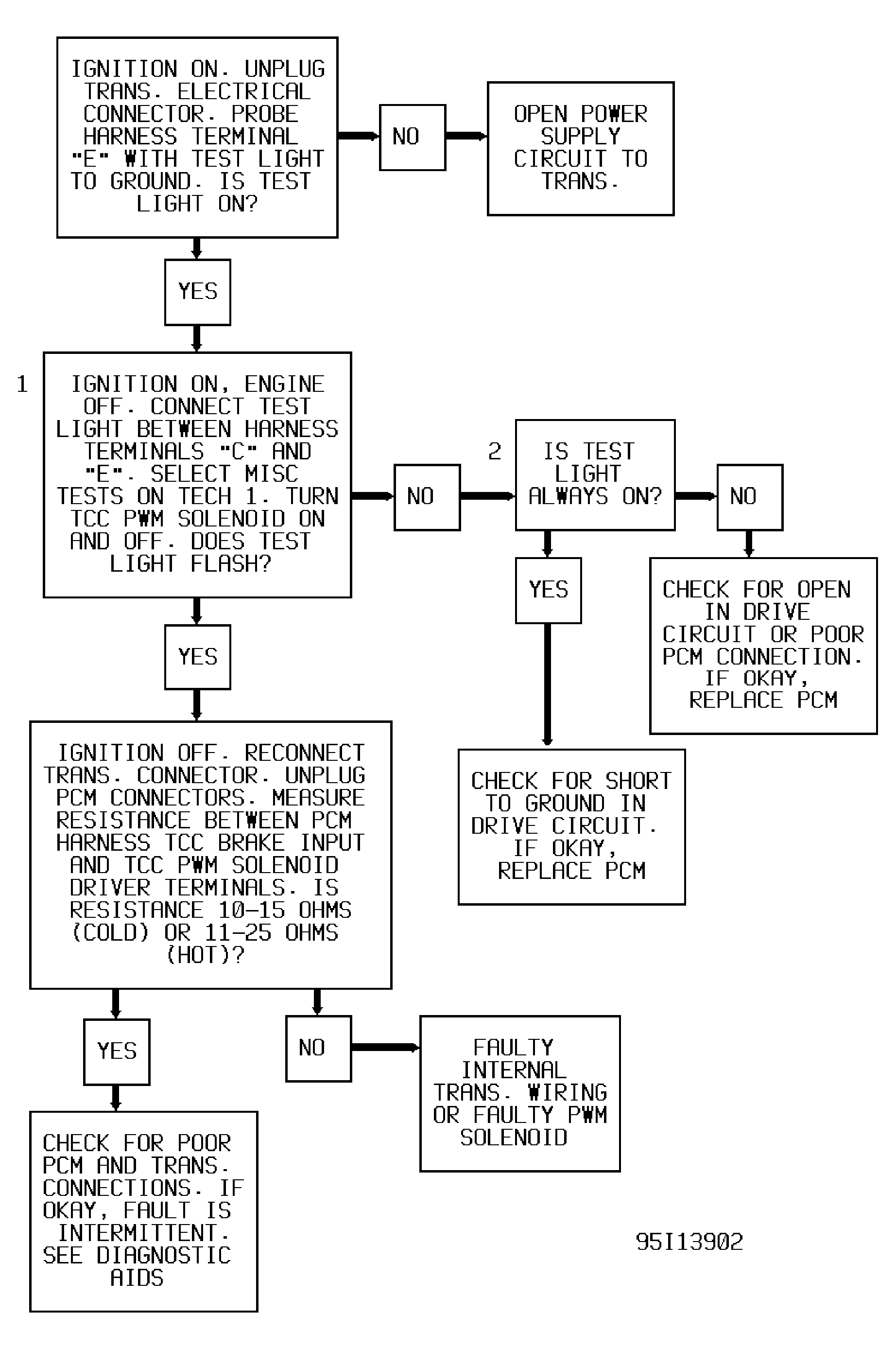

Fig 2: Code 1860 Diagnostic Flow Chart (3.8L) TCC PWM Solenoid
G95I13902
