Diagnostic Aids
An intermittent may be caused by a poor connection, rubbed through wire insulation or a wire broken inside insulation. Check for:
- Poor Connection Or Damaged Harness Inspect control module harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, poor terminal to wire connection, and damaged harness.

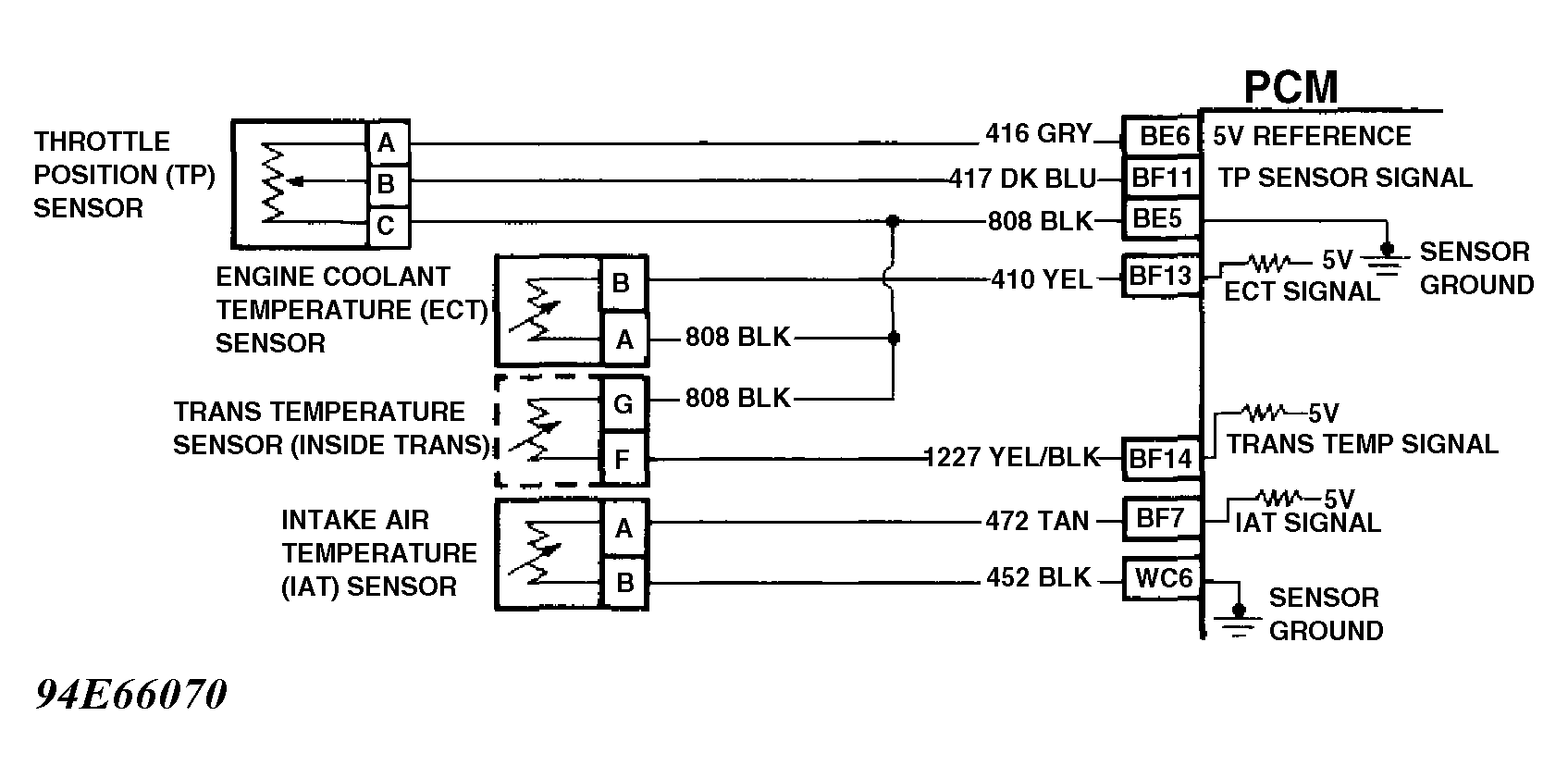

- Intermittent Test Observe IAT on Tech 1 while moving related connectors and wiring harness with warm engine running. If failure is induced, IAT display will change to a -40° temperature reading. This may assist in isolating location of malfunction.
