Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Circuit Breakers | In dash fuse panel. |

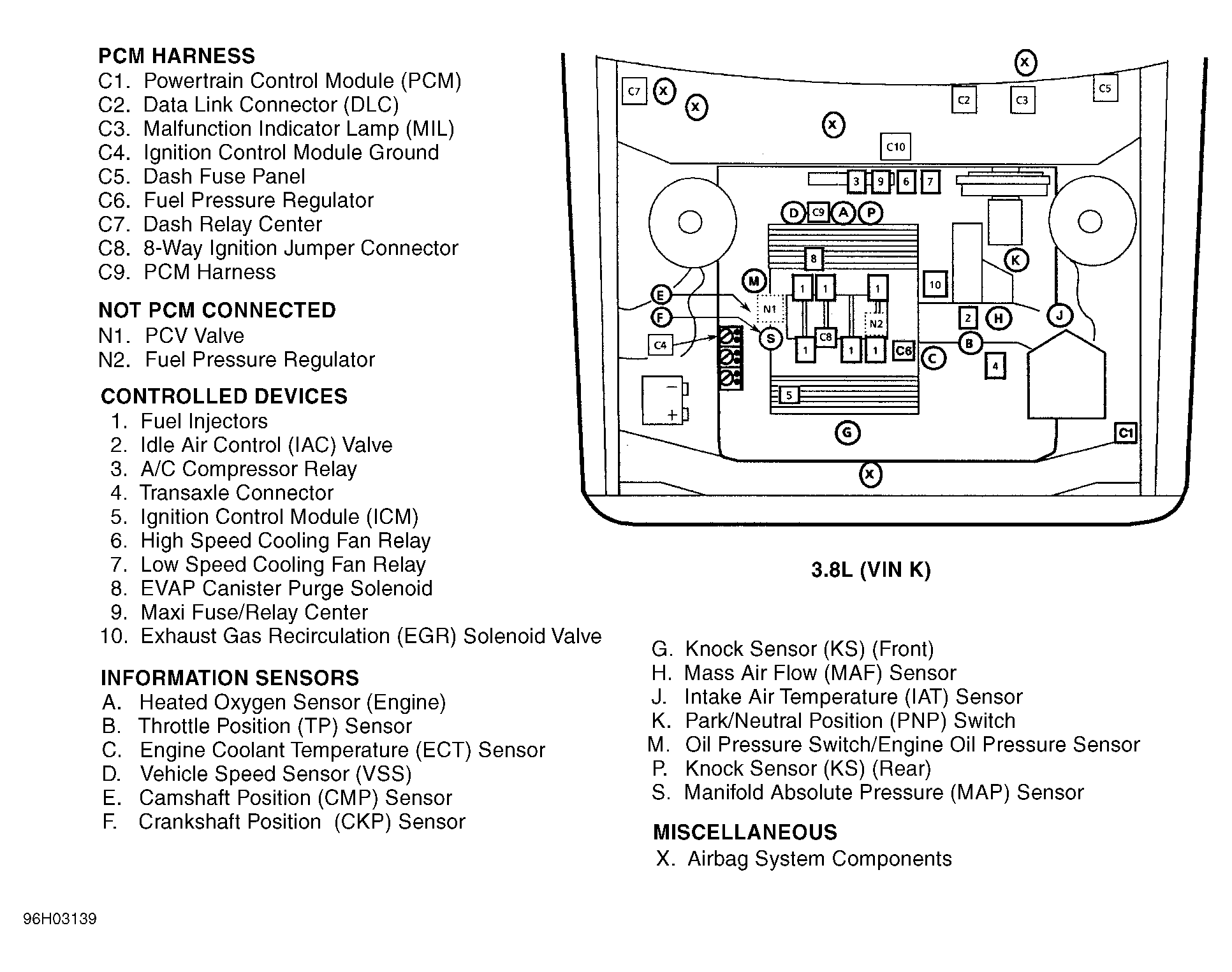

| Dash Fuse Panel (3.8L VIN K) | Behind left side of dash. See Figure . |

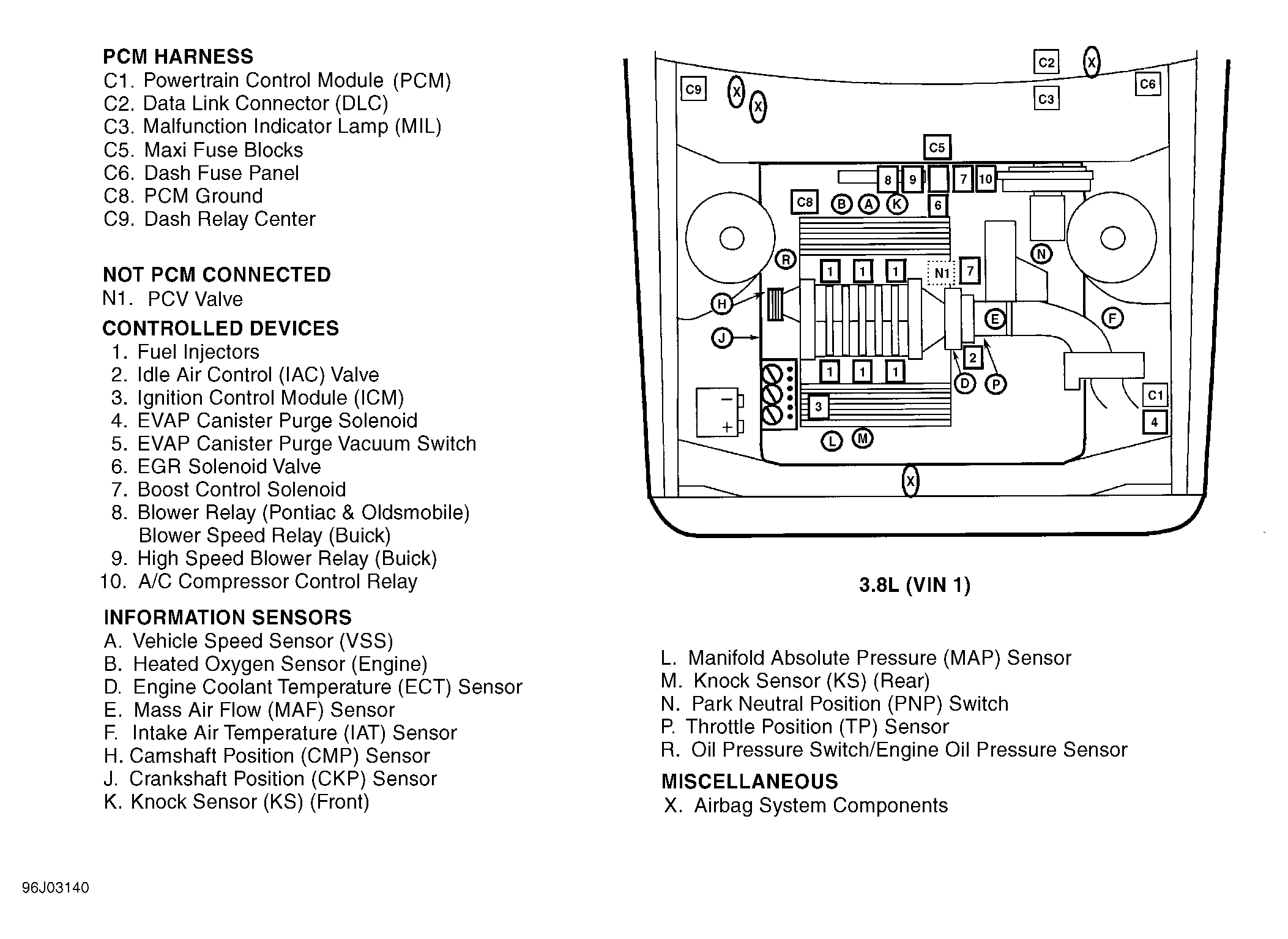

| Dash Fuse Panel (3.8L VIN 1) | Behind left side of dash. See Figure . |
| Dash Relay Center (3.8L VIN K) | Behind right side of dash. See Figure . |
| Dash Relay Center (3.8L VIN 1) | Behind right side of dash. See Figure . |
| Maxi-Fuse/Relay Center (3.8L VIN K) | On right side of firewall. See Figure . |
| Maxi-Fuse Blocks (3.8L VIN 1) | On right side of firewall. See Figure . |
