Installation (VIN 1)

Connect the electrical and vacuum connections to the MAP sensor. Position the MAP sensor to the bracket and secure with the 2 screws.

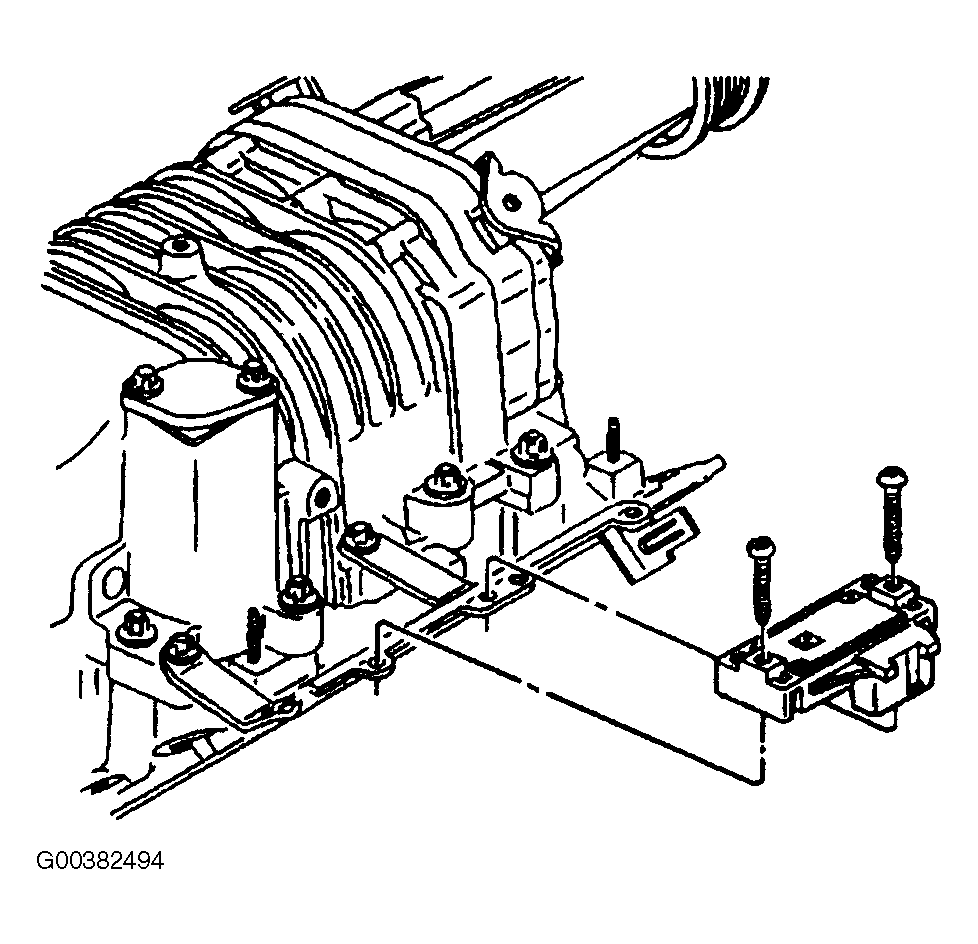

Fig 1: Identifying MAP Sensor (VIN 1)
G00382494
